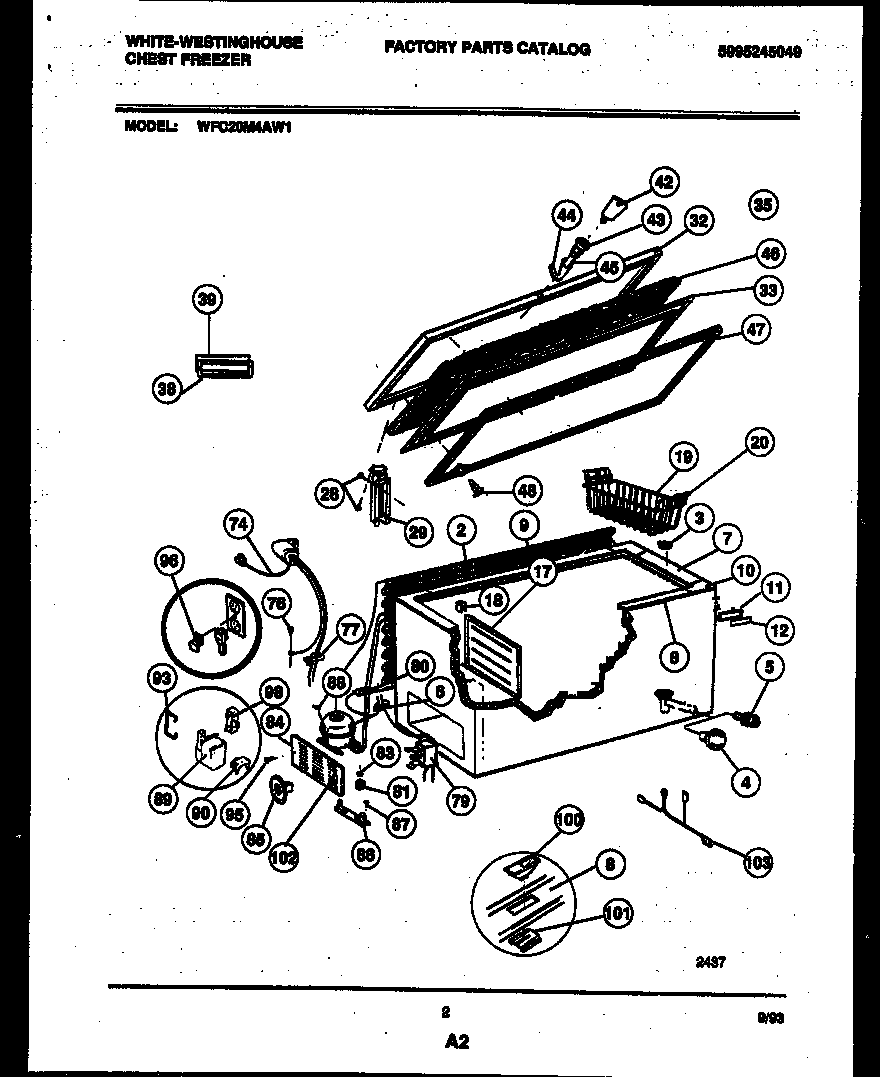

WFC20M4AW1 02 – CHEST FREEZER PARTS

Products

Position	Product
3	PLUG, DRAIN, LINER
4	WCI 5300128045
5	WCI 06594053
6	GROMMET-CONTROL TUBE
7	BREAKER-ENDS, GREY
8	WCI 216111803
9	WCI 216111203
10	BREAKER-CORNERS, GREY
11	FRAME – NAMEPLATE,WHITE
12	LABEL-NAMEPLATE, GREY/WHITE ITRS (NON-ILLUSTRATED)
17	WCI 216128200
18	WCI 5306594584
19	WCI 216080600
20	WCI 5303019003
28	WCI 5309950602
29	297322000 Frigidaire Refrigerator Hinge Assembly
32	WCI 5303297031
33	WCI 216059604
35	WCI 216141101
38	HANDLE-GRAY
39	GASKET, WHITE
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5303283905
44	WCI 5300300791
45	Washer-sealing
46	WCI 5300128901
47	216481411 Frigidaire Refrigerator Gasket
48	5303212828 Frigidaire Refrigerator Primary Clip
74	HARNESS
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
79	5304496560 Frigidaire Refrigerator Cold Control Kit
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP, SPRING MTG
84	WCI 216022700
85	WCI 216034505
86	WCI 5303212615
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	WCI 216128300
89	WCI 216008900
90	WCI 216128400
93	WCI 216158300
95	216858001 Frigidaire Refrigerator Screw
96	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
98	5304464438 Frigidaire Compressor Run Capacitor
100	WCI 5303210240
101	WCI 216080800
102	PLUG-INDICATOR
103	WCI 5303294326
