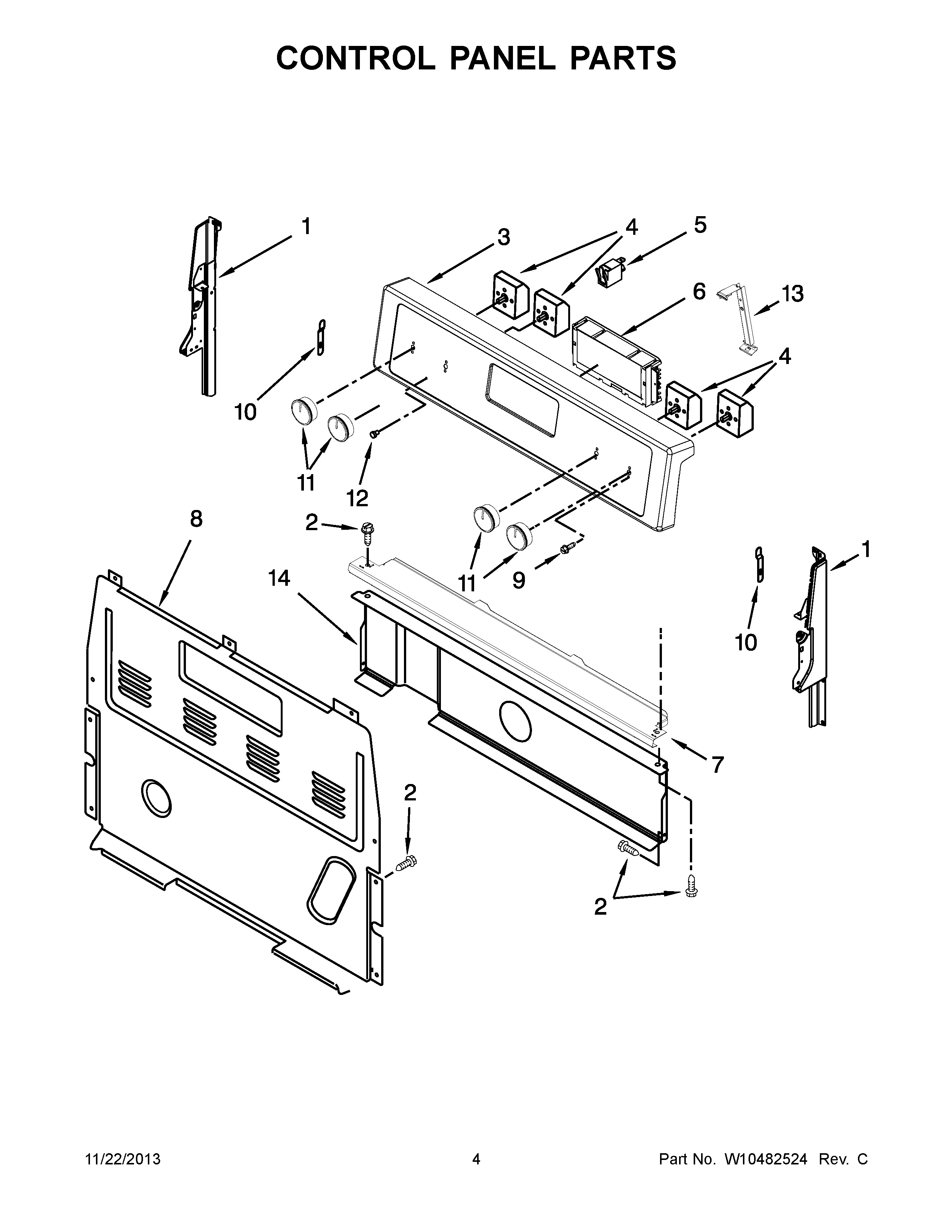

WFC310S0AB0 03 – CONTROL PANEL PARTS

WFC310S0AB0 03 – CONTROL PANEL PARTS

Written by

in

WFC310S0AB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11230612 Whirlpool Panel End Cap
1W11230611 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
2SCREW
3W11231631 Whirlpool Control Panel
3W11247341 Whirlpool Control Panel
3PANEL, CONSOLE (BISCUIT)
3W10715419 Whirlpool Control Panel
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6W10803948-includeCORE Whirlpool W10803948 Refrigerator Electronic Control Board + Core
6W11122536 Whirlpool Electronic Control Board + Core
7W10525121 Whirlpool Control Bracket
8WP8272473 Whirlpool Rear Cover
9WP3400882 Whirlpool Screw
103196200 Whirlpool Clip
11WPW10490038 Whirlpool Knob
11WPW10490037 Whirlpool Knob
11W10854421 Whirlpool Knob
12WP3196068 Whirlpool Light Lens
13W11230932 Whirlpool Bracket Mounting
14W10134247 Whirlpool Heat Shield
