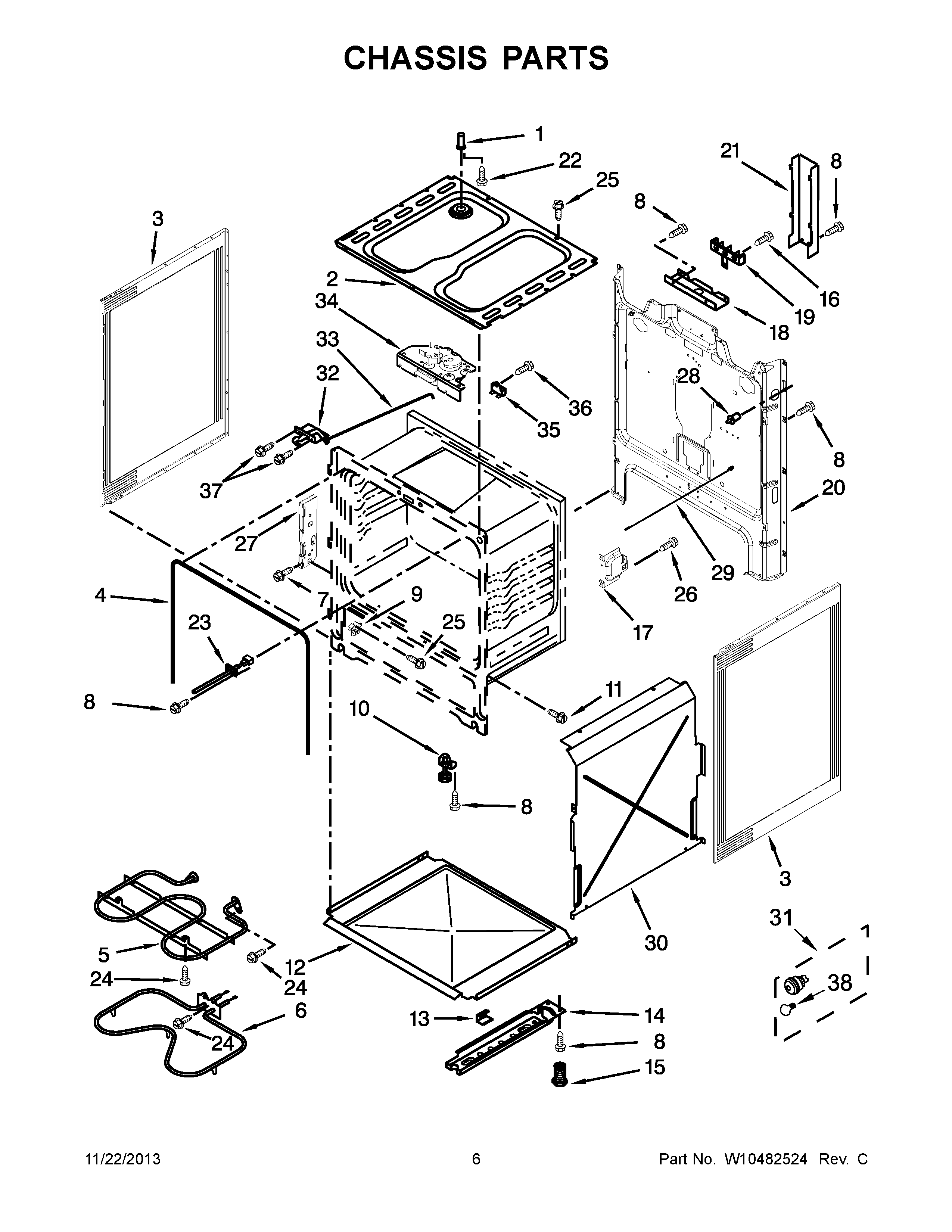

WFC310S0AT0 04 – CHASSIS PARTS

Products

Position	Product
NI	WP8272612 Whirlpool Insulation
NI	WPW10208653 Whirlpool Insulation
1	9755804 Whirlpool Oven Vent Tube
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
3	W10162246 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
4	W11542153 Whirlpool Door Gasket
5	W10856603 Whirlpool Broil Element
6	WPW10308477 Whirlpool Bake Element
7	W10777162 Whirlpool Screw
8	SCREW
9	GLIDE-RANGE DRAWER KIT
10	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11	WPW10067840 Whirlpool Screw
12	WP8054068 Whirlpool Retainer
13	W10137382 Whirlpool Clip
14	WPW10306546 Whirlpool Base Rail
15	WPW10058460 Whirlpool Appliance Levelling Leg
16	WP3400016 Whirlpool Screw Assembly
17	W10404688 Whirlpool Bracket Support
18	W11728255 Whirlpool Service Bracket
19	WPW10245259 Whirlpool Terminal Block
19	Nut
20	BACK, MAIN
21	WPW10326122 Whirlpool Black Cover
22	WP3196567 Whirlpool Screw
23	WPW10181986 Whirlpool Oven Sensor
24	WP3196174 Whirlpool Screw
25	WP3196175 Whirlpool Screw
26	WP3196557 Whirlpool Screw
27	W10647259 Whirlpool Hinge Receiver
28	WP9757262 Whirlpool Light Switch
29	9757239 Whirlpool Oven Door Rod
30	W10450380 Whirlpool Retainer
31	W11594027 Whirlpool Range Oven Light Socket
32	WP9761013 Whirlpool Door Latch
33	Rod, Latch
34	WPW10107820 Whirlpool Door Latch
35	WP3196548 Whirlpool Thermal Fuse
36	3196172 Whirlpool Oven Screw
37	W11169708 Whirlpool Screw
38	RANGE ONLY 40W 120V APPL BULB
