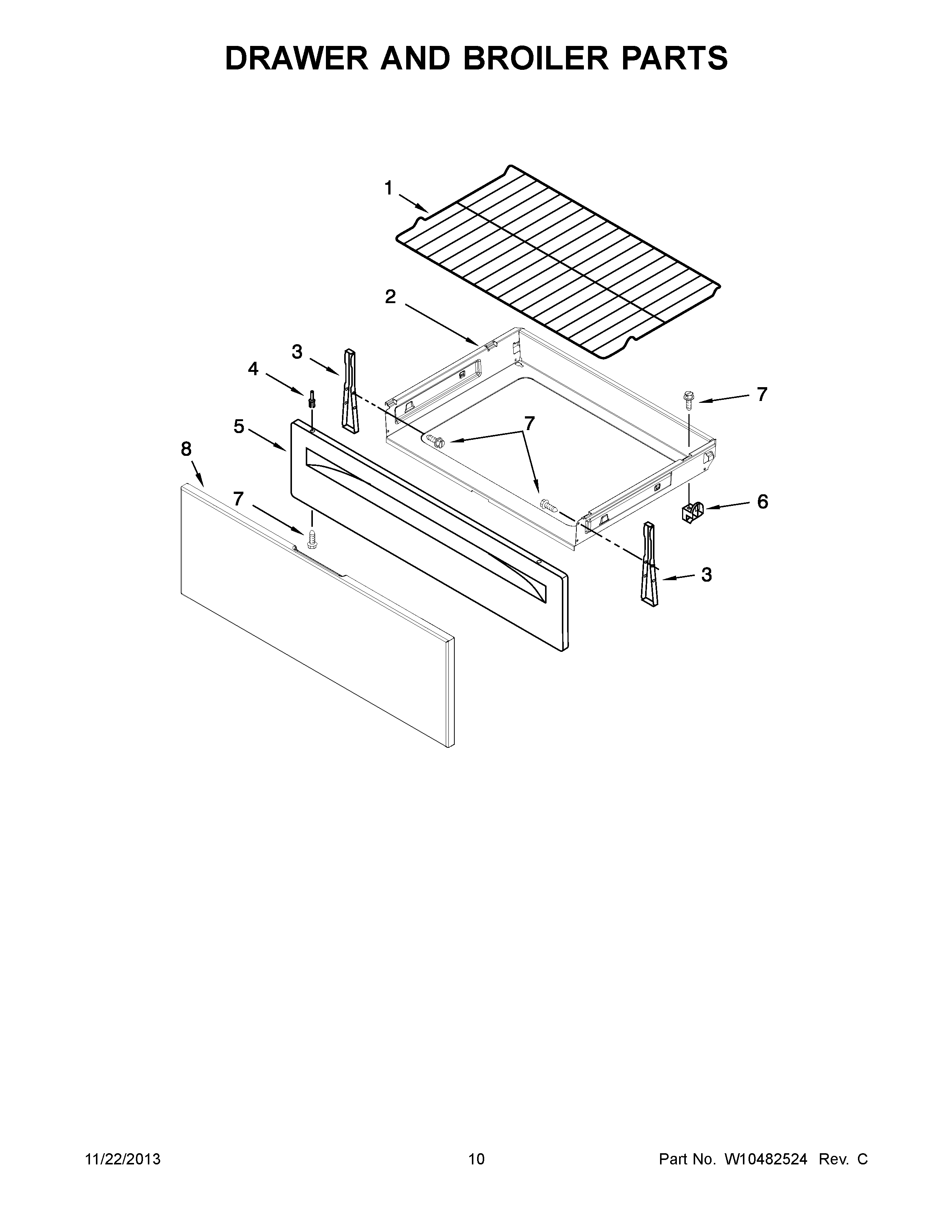

WFC310S0AT0 06 – DRAWER AND BROILER PARTS

Products

Position	Product
1	RACK-OVEN
2	W10813962 Whirlpool Utility Drawer
3	W10838990 Whirlpool Mounting Bracket
3	WPW10462912 Whirlpool Bracket Mounting
4	WP3196813 Whirlpool Rivet
4	WP3196814 Whirlpool Rivet
5	W11230488 Whirlpool Drawer Panel
5	W11230476 Whirlpool Drawer Panel
5	W11219377 Whirlpool Drawer Panel
6	GLIDE-RANGE DRAWER KIT
7	WP3196175 Whirlpool Screw
8	WPW10330070 Whirlpool Drawer Panel
