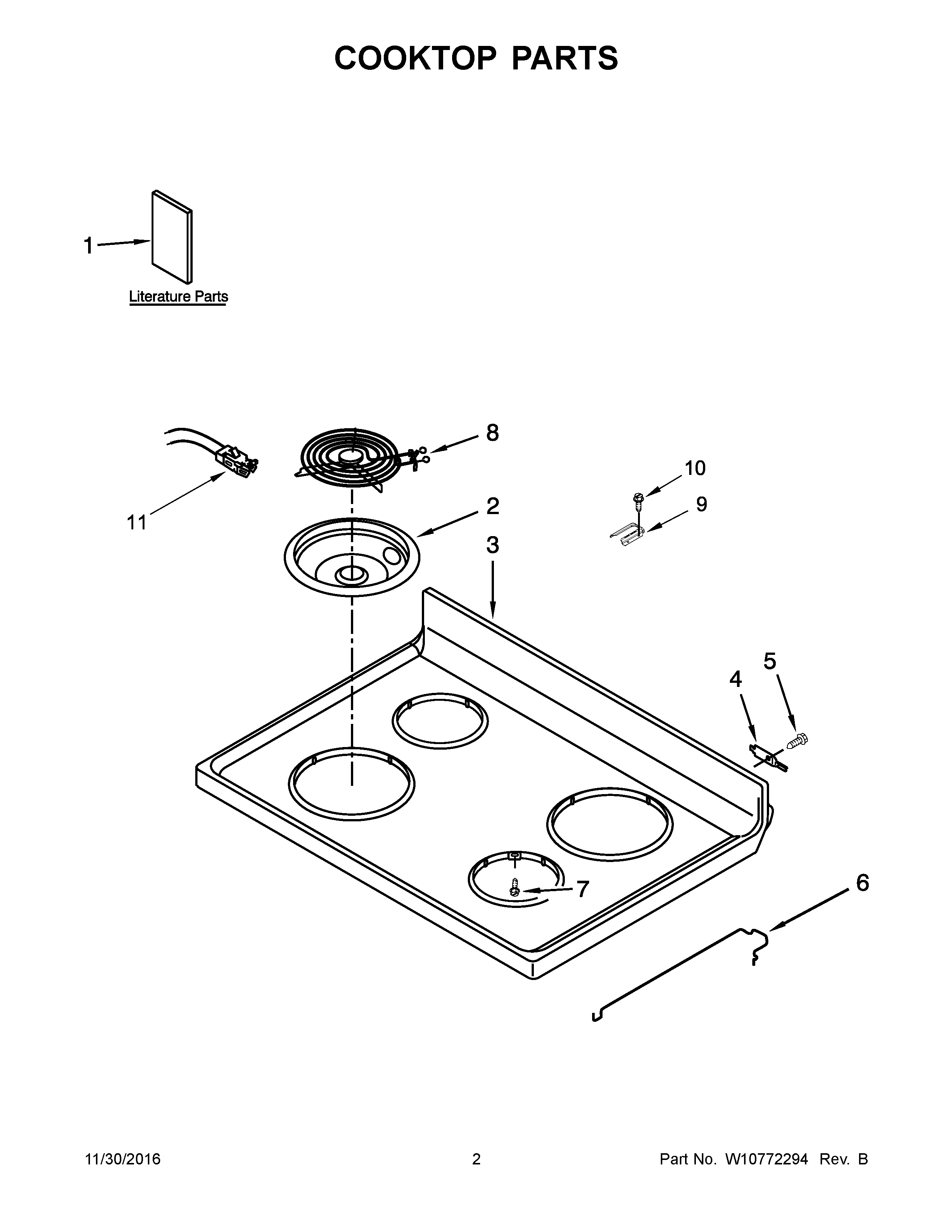

WFC310S0EB0 02 – COOKTOP PARTS

Products

PositionProduct
NIW11226234 Whirlpool Wire Harness
NIWPW10281322 Whirlpool Connector
NIW11172524 Whirlpool Wire Harness
NIW11396691 Whirlpool Element Receptacle and Wire Kit
NICABINET (NOT A SERVICEABLE PART)
1BSHEET, TECH (ENGLISH)
1AOWNER'S MANUAL
1INSTRUCTIONS, INSTALLATION
1CSAFER COOKING TIPS (ENGLISH
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2ADRIP BOWL 8" W/HOLE CHROME
3A8195534 Whirlpool Cooktop
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP3195812 Whirlpool Cooktop Rod
7WP3196154 Whirlpool Screw Assembly
8AWPW10259865 Whirlpool Range 8" Surface Element
8WPW10259868 Whirlpool Surface Heating Element
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
11814399 Whirlpool Receptacle Kit
