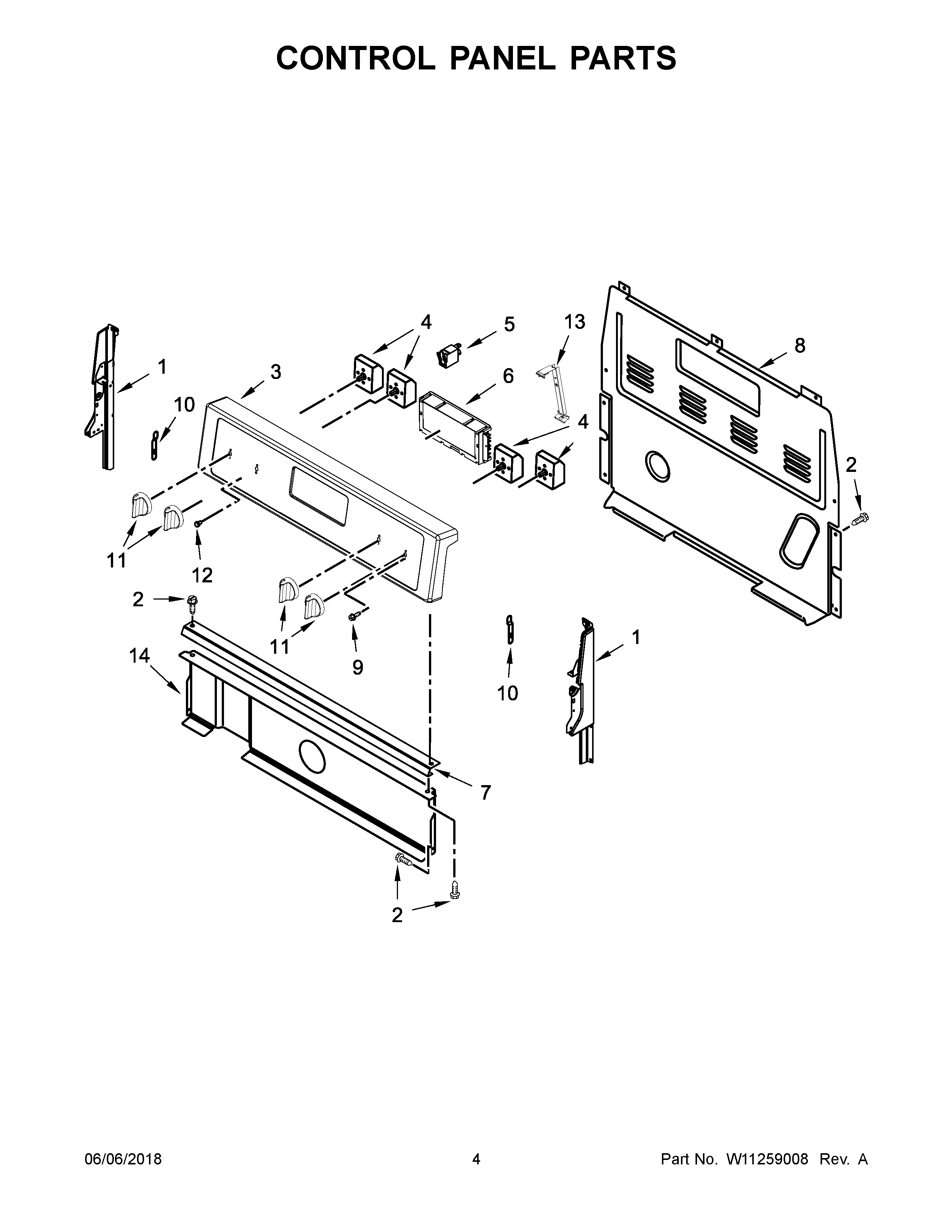

WFC310S0EB2 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W11219370 Whirlpool Endcap Panel
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
1B	W11219365 Whirlpool Panel Endcap
2	SCREW
3	W11247341 Whirlpool Control Panel
3A	W11231631 Whirlpool Control Panel
4A	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6A	W11122533-includeCORE Whirlpool W11122533 Washer Electronic Control Board
6	W11122531-includeCORE Whirlpool W11122531 Washer Electronic Control Board + Core
7	W10525121 Whirlpool Control Bracket
8	WP8272473 Whirlpool Rear Cover
9	WP3400882 Whirlpool Screw
10	3196200 Whirlpool Clip
11	W10836470 Whirlpool Knob Assembly
11A	W10853029 Whirlpool Knob
12	WP3196068 Whirlpool Light Lens
13	W11230932 Whirlpool Bracket Mounting
14	W10134247 Whirlpool Heat Shield
