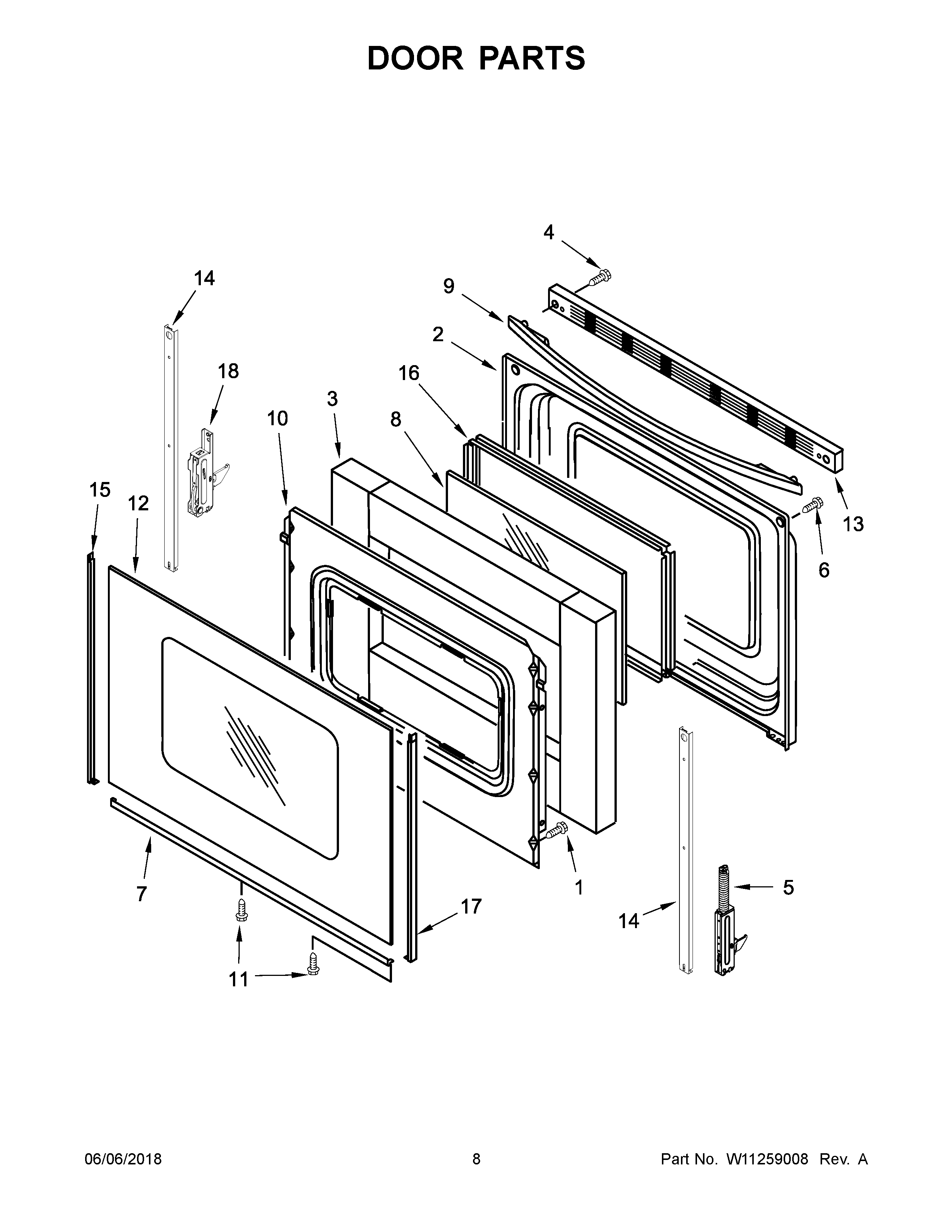

WFC310S0EB2 05 – DOOR PARTS

WFC310S0EB2 05 – DOOR PARTS

Written by

in

WFC310S0EB2 05 – DOOR PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
2WP9761344 Whirlpool Door Liner
3WPW10278991 Whirlpool Insulation
4WPW10200660 Whirlpool Range Oven Door Handle Screw
5WPW10299226 Whirlpool Door Hinge
6WPW10465148 Whirlpool Screw
7WP8523177 Whirlpool Door Trim Assembly
7AWP8523175 Whirlpool Door Trim Assembly
8WP8053948 Whirlpool Door Glass
9W10300490 Whirlpool Door Handle
9AW10300489 Whirlpool Door Handle
10W11539580 Whirlpool Retainer
11WP355214 Whirlpool Screw
12WPW10409946 Whirlpool Door Glass
12AWPW10409945 Whirlpool Glass Door
13TRIM-VENT
13AW10817433 Whirlpool Vent Trim
14W11502236 Whirlpool Door Trim
15W10761018 Whirlpool Dishwasher Left Door Trim
15AWP8523172 Whirlpool Left Door Trim
16WPW10316950 Whirlpool Window Frame
17W10761014 Whirlpool Right Door Trim
17AWP8523166 Whirlpool Door Trim
18WPW10299227 Whirlpool Range Door Hinge
