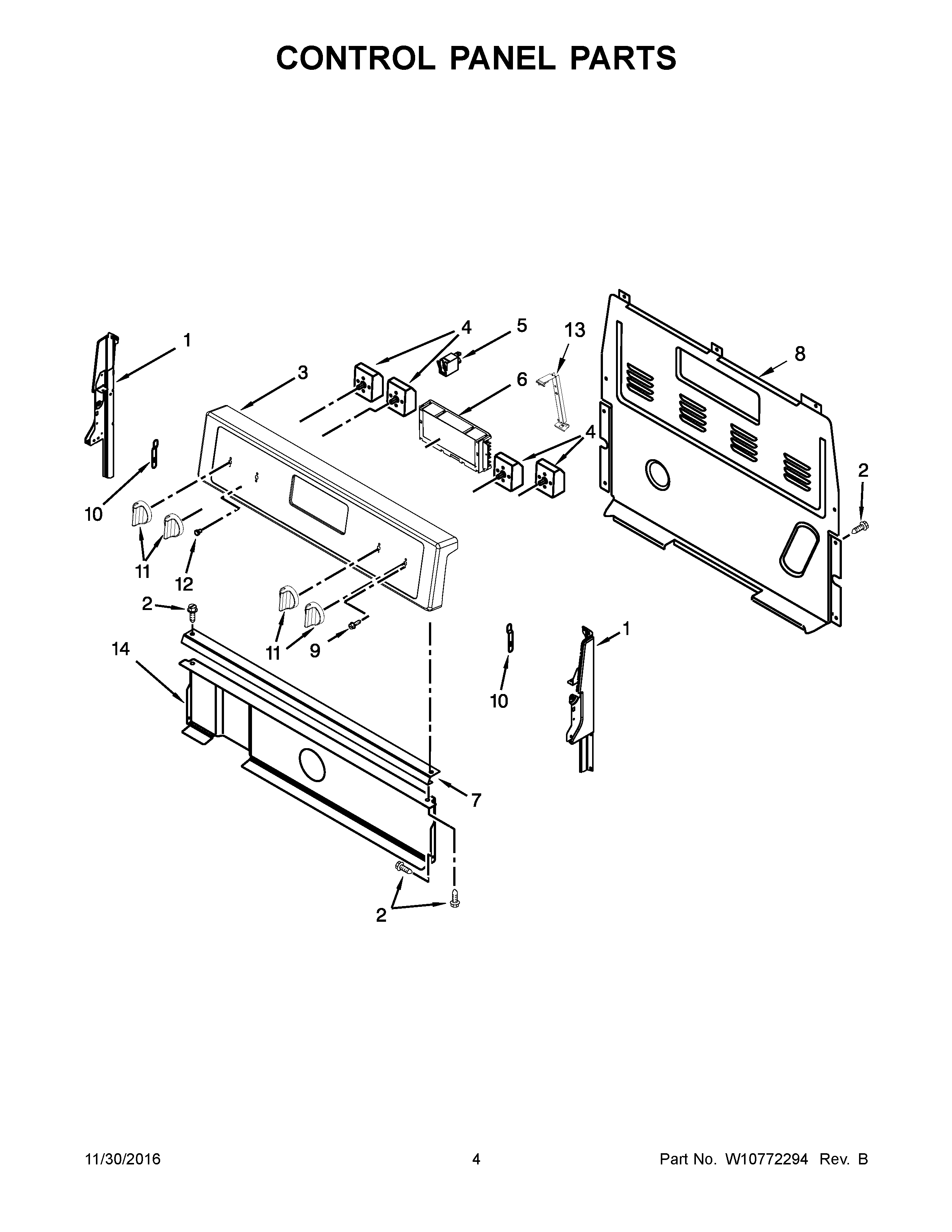

WFC310S0ES0 03 – CONTROL PANEL PARTS

WFC310S0ES0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1BW11219370 Whirlpool Endcap Panel
1AW11219664 Whirlpool Endcap Panel
1CW11219665 Whirlpool Panel Endcap
1W11219365 Whirlpool Panel Endcap
2SCREW
3AW11247341 Whirlpool Control Panel
3W11231631 Whirlpool Control Panel
3BW10715419 Whirlpool Control Panel
4WP3148952 Whirlpool Oven Infinite Switch
4AWP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6BW11122536 Whirlpool Electronic Control Board + Core
6W11122533-includeCORE Whirlpool W11122533 Washer Electronic Control Board
6AW11122531-includeCORE Whirlpool W11122531 Washer Electronic Control Board + Core
7W10525121 Whirlpool Control Bracket
8WP8272473 Whirlpool Rear Cover
9WP3400882 Whirlpool Screw
103196200 Whirlpool Clip
11W10853029 Whirlpool Knob
11AW10836470 Whirlpool Knob Assembly
12WP3196068 Whirlpool Light Lens
13W11230932 Whirlpool Bracket Mounting
14W10134247 Whirlpool Heat Shield
