WFC310S0ES0 06 – DRAWER PARTS

WFC310S0ES0 06 – DRAWER PARTS

Written by

in

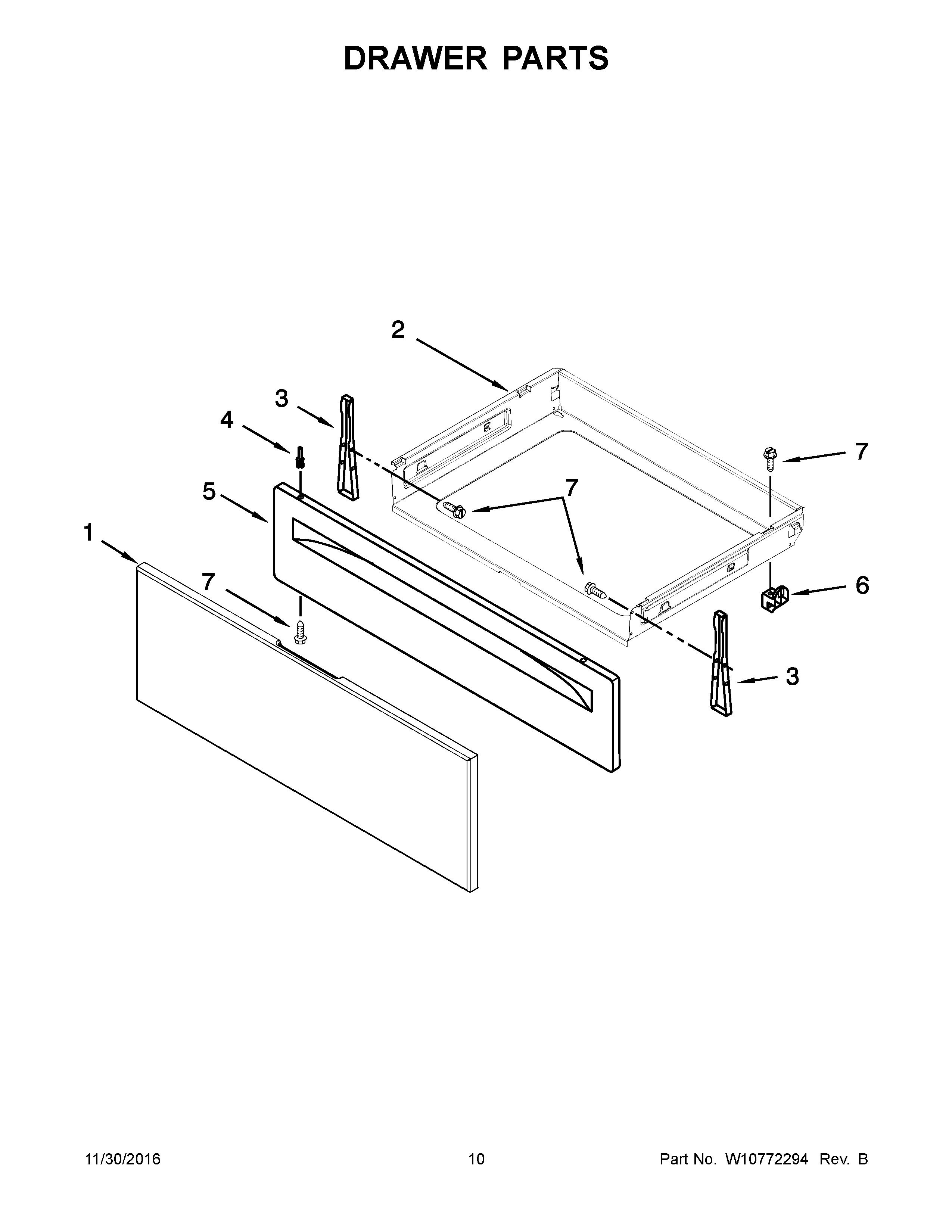

WFC310S0ES0 06 – DRAWER PARTS

Products

PositionProduct
1WPW10330070 Whirlpool Drawer Panel
2W10813962 Whirlpool Utility Drawer
3AW10838990 Whirlpool Mounting Bracket
3WPW10462912 Whirlpool Bracket Mounting
4AWP3196813 Whirlpool Rivet
4WP3196814 Whirlpool Rivet
5W11219377 Whirlpool Drawer Panel
5AW11230488 Whirlpool Drawer Panel
6GLIDE-RANGE DRAWER KIT
7WP3196175 Whirlpool Screw
