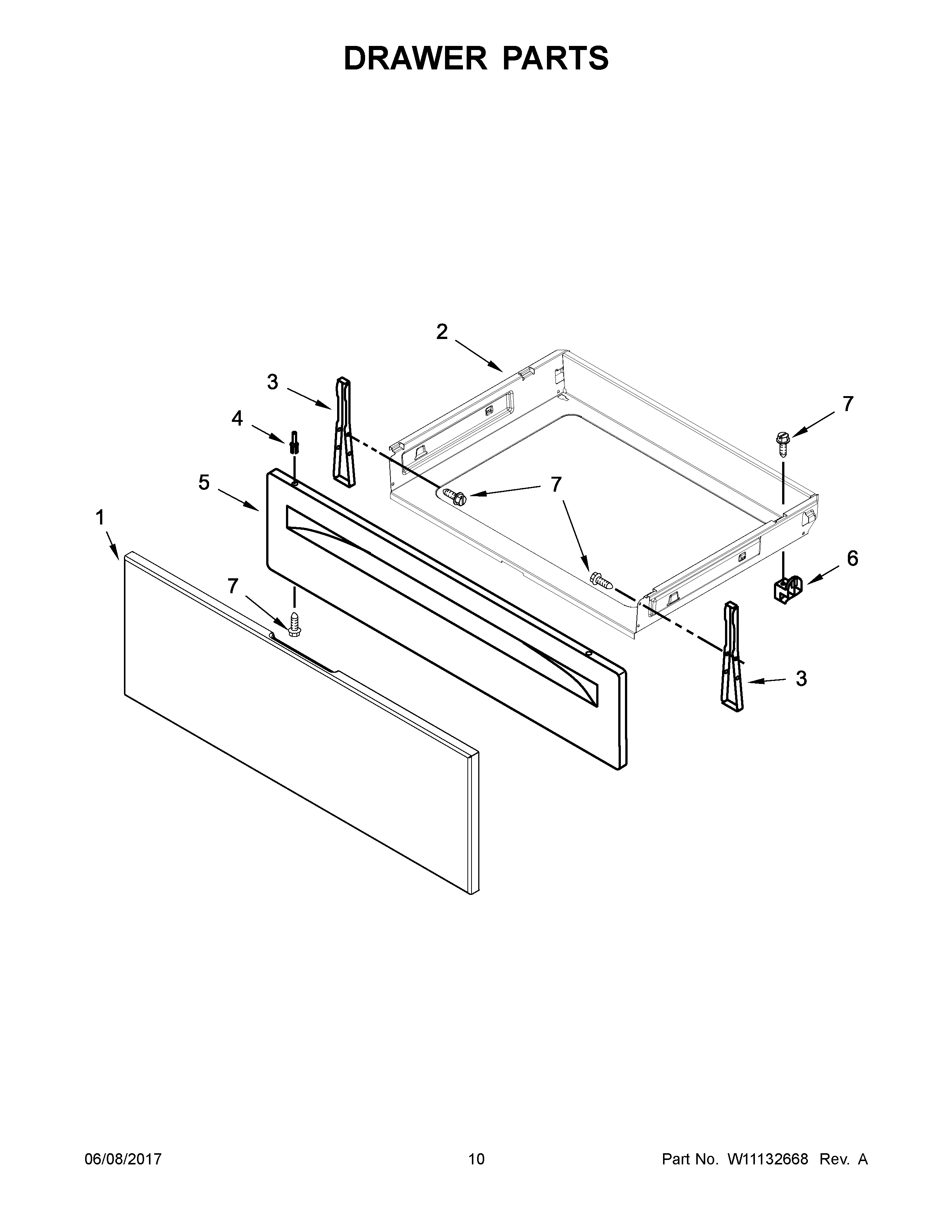

WFC310S0ES1 06 – DRAWER PARTS

Products

Position	Product
1	WPW10330070 Whirlpool Drawer Panel
2	W10813962 Whirlpool Utility Drawer
3A	W10838990 Whirlpool Mounting Bracket
3	WPW10462912 Whirlpool Bracket Mounting
4	WP3196813 Whirlpool Rivet
4A	WP3196814 Whirlpool Rivet
5A	W11219377 Whirlpool Drawer Panel
5	W11230488 Whirlpool Drawer Panel
6	GLIDE-RANGE DRAWER KIT
7	WP3196175 Whirlpool Screw
