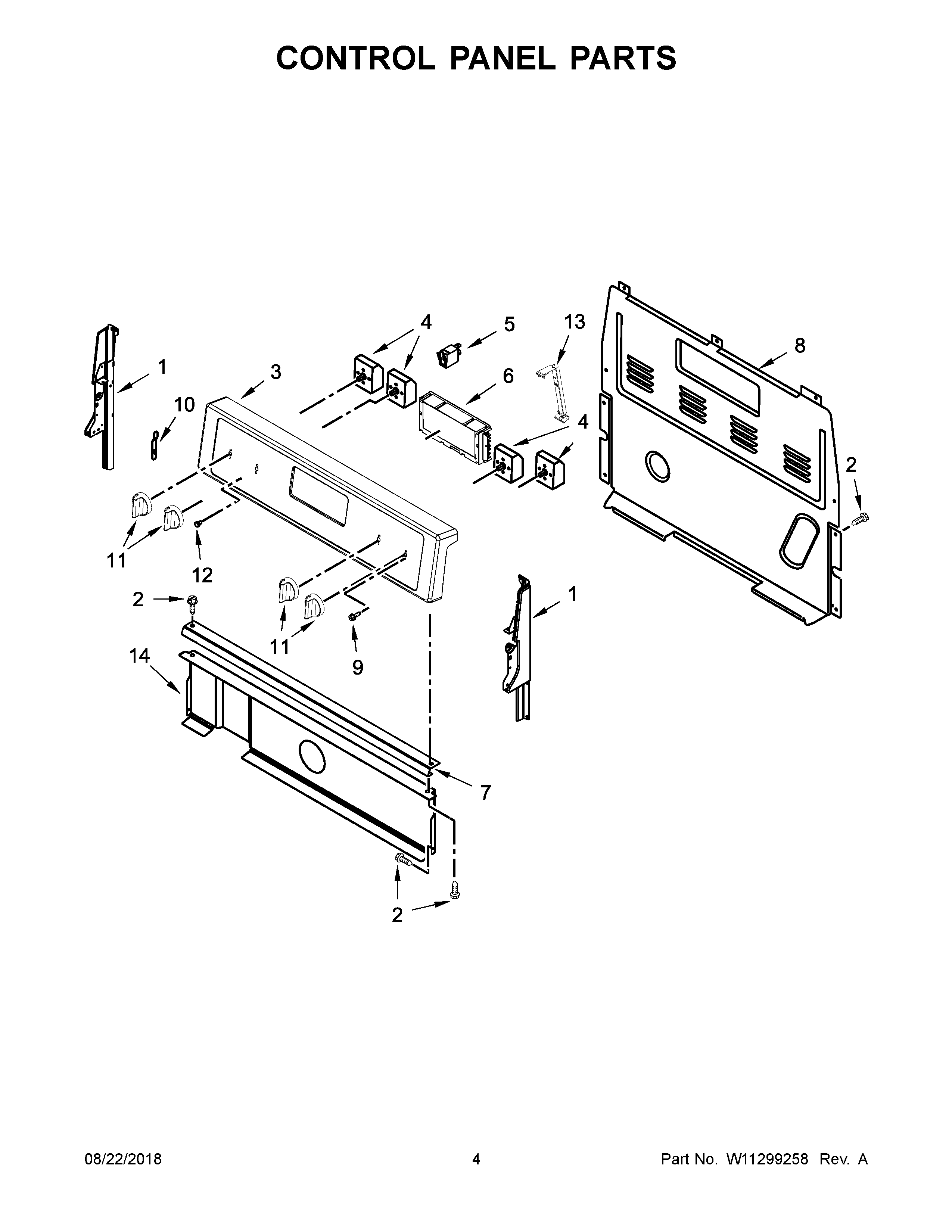

WFC310S0ES3 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	SCREW
3	W11256096 Whirlpool Control Panel
4A	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	W11122536 Whirlpool Electronic Control Board + Core
7	W10525121 Whirlpool Control Bracket
8	WP8272473 Whirlpool Rear Cover
9	WP3400882 Whirlpool Screw
10	3196200 Whirlpool Clip
11	W10836470 Whirlpool Knob Assembly
12	WP3196068 Whirlpool Light Lens
13	W11230932 Whirlpool Bracket Mounting
14	W10134247 Whirlpool Heat Shield
