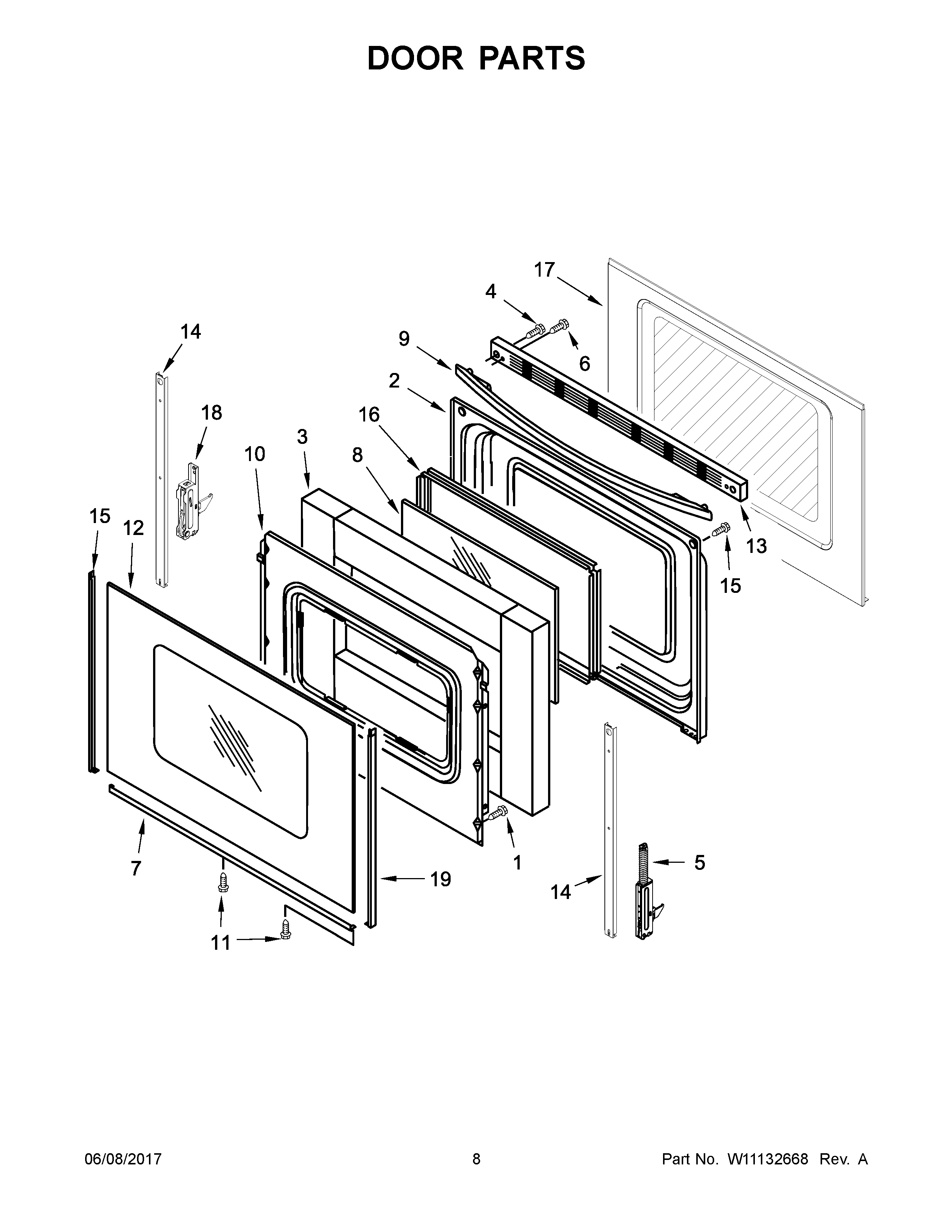

WFC310S0EW1 05 – DOOR PARTS

WFC310S0EW1 05 – DOOR PARTS

Written by

in

WFC310S0EW1 05 – DOOR PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
2WP9761344 Whirlpool Door Liner
3WPW10278991 Whirlpool Insulation
4WPW10200660 Whirlpool Range Oven Door Handle Screw
5WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
6WPW10465148 Whirlpool Screw
7WP8523177 Whirlpool Door Trim Assembly
7AWP8523175 Whirlpool Door Trim Assembly
8WP8053948 Whirlpool Door Glass
9AW10300489 Whirlpool Door Handle
9W10300490 Whirlpool Door Handle
10W11539580 Whirlpool Retainer
11WP3196175 Whirlpool Screw
12AWPW10409945 Whirlpool Glass Door
12WPW10409946 Whirlpool Door Glass
13AW10817433 Whirlpool Vent Trim
13TRIM-VENT
14W11502236 Whirlpool Door Trim
15AWP8523172 Whirlpool Left Door Trim
15W10761018 Whirlpool Dishwasher Left Door Trim
16WPW10316950 Whirlpool Window Frame
17WPW10330077 Whirlpool Door Glass
18WPW10299227 Whirlpool Range Door Hinge
19W10761014 Whirlpool Right Door Trim
19AWP8523166 Whirlpool Door Trim
