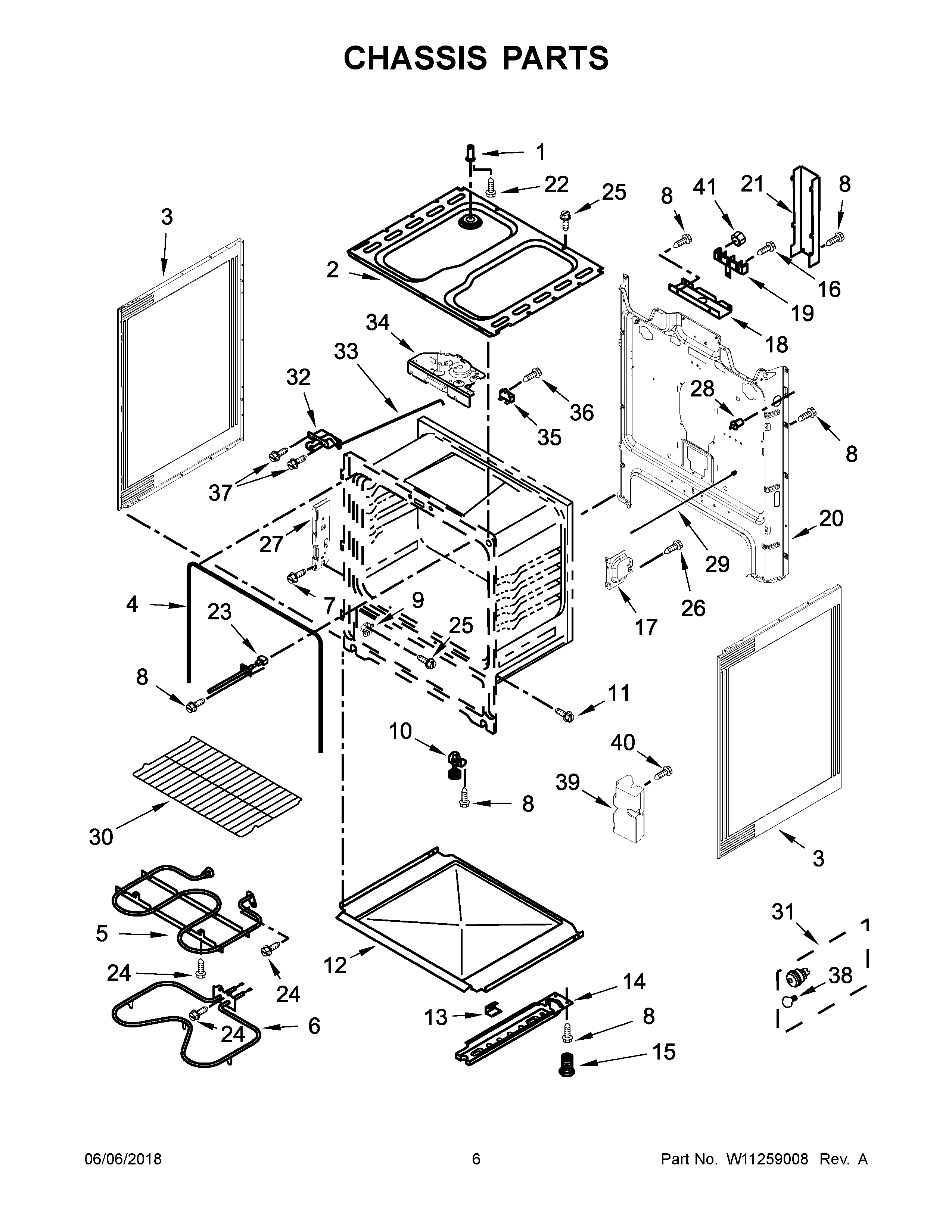

WFC310S0EW2 04 – CHASSIS PARTS

Products

PositionProduct
NIW11161831 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11311894 Whirlpool Insulation
1VENT TUBE
2W11699791 Whirlpool Burner Box
3AWPW10575396 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
4W11542153 Whirlpool Door Gasket
5W10856603 Whirlpool Broil Element
6W11182108 Whirlpool Bake Element
7W10777162 Whirlpool Screw
8SCREW
9W10807823 Whirlpool Drawer Glide
10WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11WPW10067840 Whirlpool Screw
12WP8054068 Whirlpool Retainer
13W10137382 Whirlpool Clip
14AWPW10306546 Whirlpool Base Rail
15WPW10058460 Whirlpool Appliance Levelling Leg
16WP3400016 Whirlpool Screw Assembly
17W10404688 Whirlpool Bracket Support
18W11728255 Whirlpool Service Bracket
19WPW10245259 Whirlpool Terminal Block
20BACK, MAIN
21WPW10326122 Whirlpool Black Cover
22WP3196567 Whirlpool Screw
23WPW10181986 Whirlpool Oven Sensor
24WP3196174 Whirlpool Screw
25WP3196175 Whirlpool Screw
26WP3196557 Whirlpool Screw
27W10647259 Whirlpool Hinge Receiver
28WP9757262 Whirlpool Light Switch
299757239 Whirlpool Oven Door Rod
30RACK-OVEN
31W11594027 Whirlpool Range Oven Light Socket
32WP9761013 Whirlpool Door Latch
33Rod, Latch
34WPW10107820 Whirlpool Door Latch
35WP3196548 Whirlpool Thermal Fuse
363196172 Whirlpool Oven Screw
37W11169708 Whirlpool Screw
38RANGE ONLY 40W 120V APPL BULB
39W11135752 Whirlpool Anchor Tip
40W11135756 Whirlpool Screw Torx
41WP3400029 Whirlpool Dishwasher Nut
