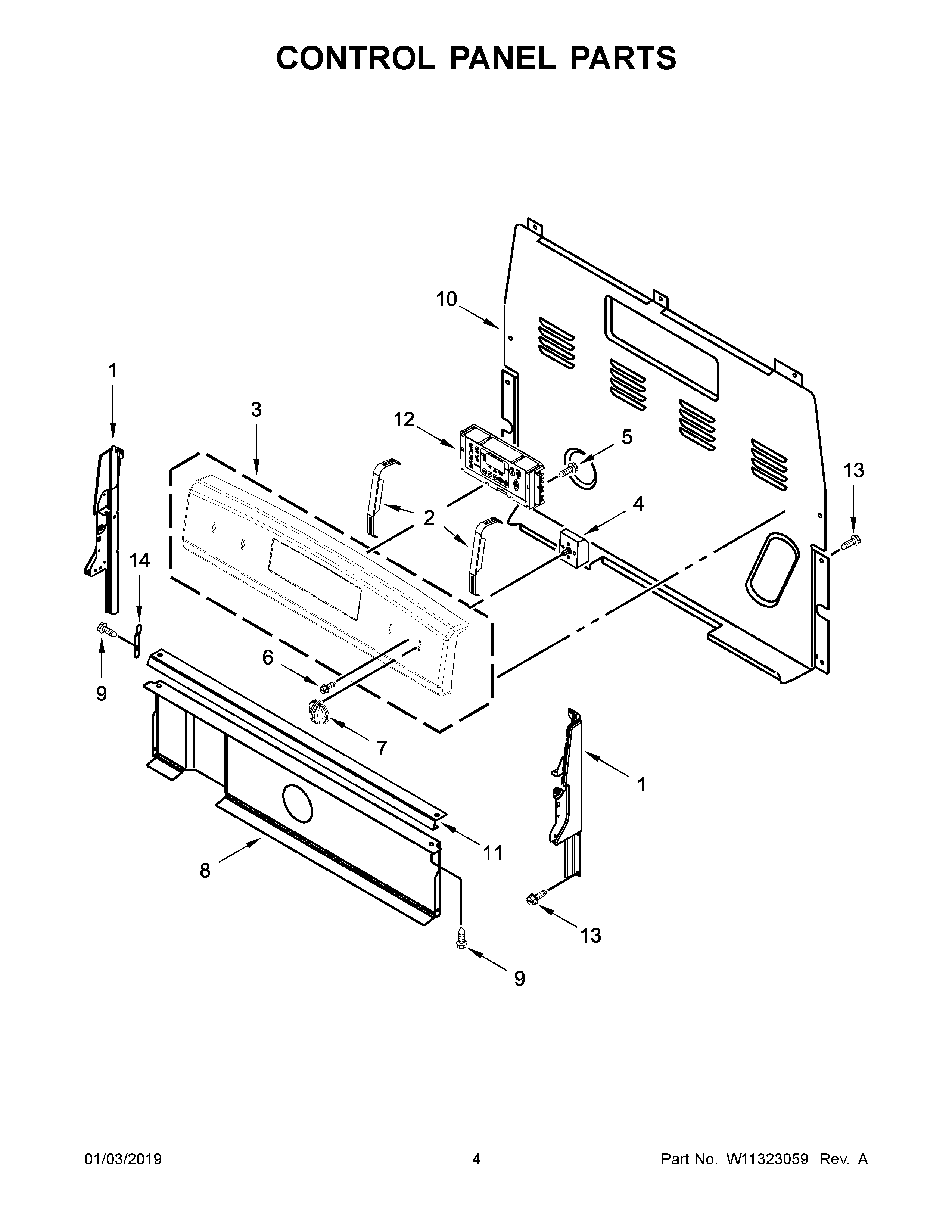

WFC315S0HS0 03 – CONTROL PANEL PARTS

WFC315S0HS0 03 – CONTROL PANEL PARTS

Written by

in

WFC315S0HS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W11230932 Whirlpool Bracket Mounting
3W11336701 Whirlpool Control Panel
4SWITCH-INF
4AWP3149404 Whirlpool Oven Surface Element Switch
5WP3196557 Whirlpool Screw
6WP3400882 Whirlpool Screw
7W11158169 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11567348 Whirlpool Control Board + Core
13SCREW
143196200 Whirlpool Clip
