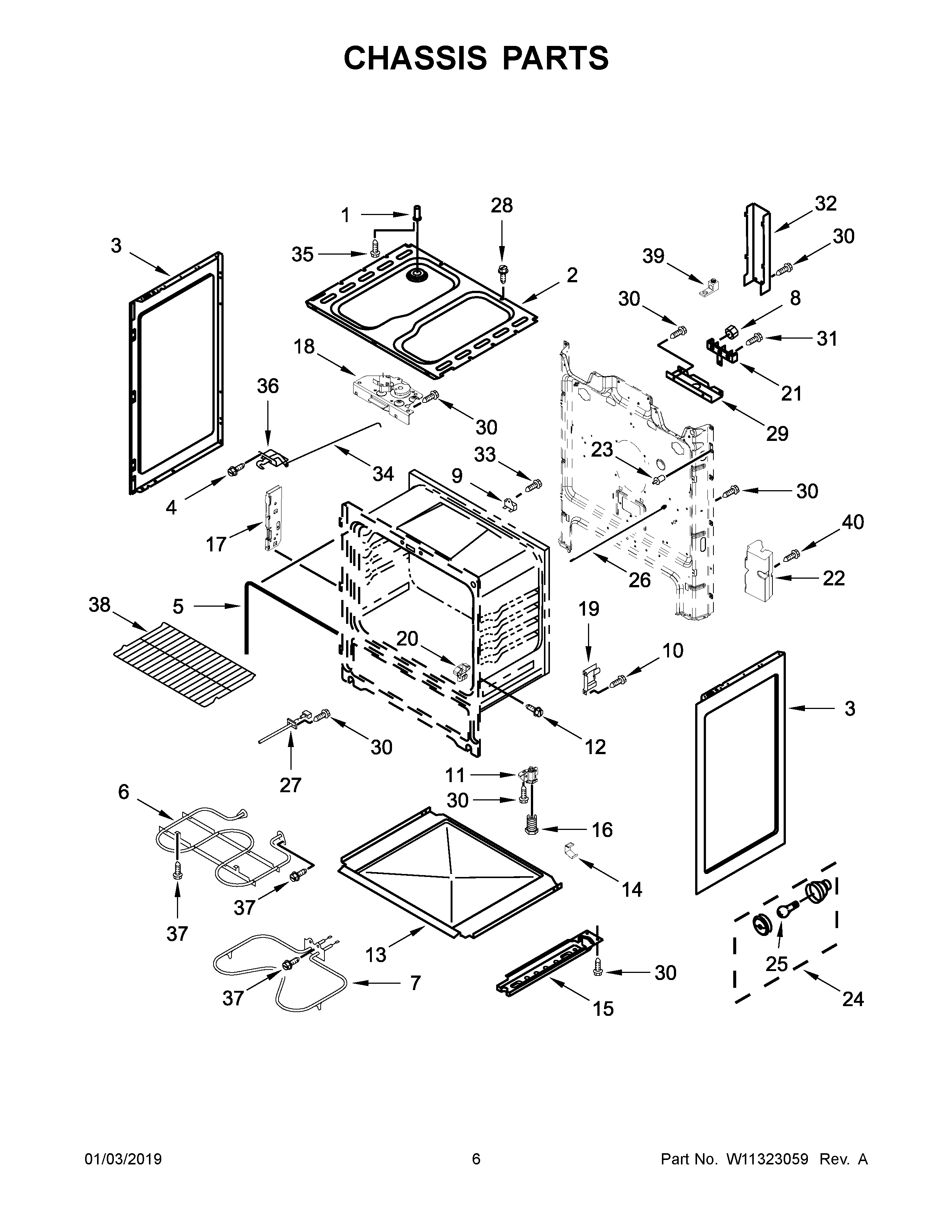

WFC315S0HS0 04 – CHASSIS PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11161831 Whirlpool Insulation
NI	W11311894 Whirlpool Insulation
1	VENT TUBE
2	W11699791 Whirlpool Burner Box
3	W11730303 Whirlpool Side Panel
4	W11169708 Whirlpool Screw
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	W11182108 Whirlpool Bake Element
8	WP3400029 Whirlpool Dishwasher Nut
9	WP3196548 Whirlpool Thermal Fuse
10	WP3196557 Whirlpool Screw
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	W10647259 Whirlpool Hinge Receiver
18	WPW10107820 Whirlpool Door Latch
19	W10404688 Whirlpool Bracket Support
20	W10807823 Whirlpool Drawer Glide
21	WPW10245259 Whirlpool Terminal Block
22	W11135752 Whirlpool Anchor Tip
23	WP9757262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	BULB-LIGHT
26	9757239 Whirlpool Oven Door Rod
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196175 Whirlpool Screw
29	W11728255 Whirlpool Service Bracket
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
32	WPW10326122 Whirlpool Black Cover
33	3196172 Whirlpool Oven Screw
34	Rod, Latch
35	WP3196567 Whirlpool Screw
36	WP9761013 Whirlpool Door Latch
37	WP3196174 Whirlpool Screw
38	RACK-OVEN
39	WPW10281322 Whirlpool Connector
40	W11135756 Whirlpool Screw Torx
