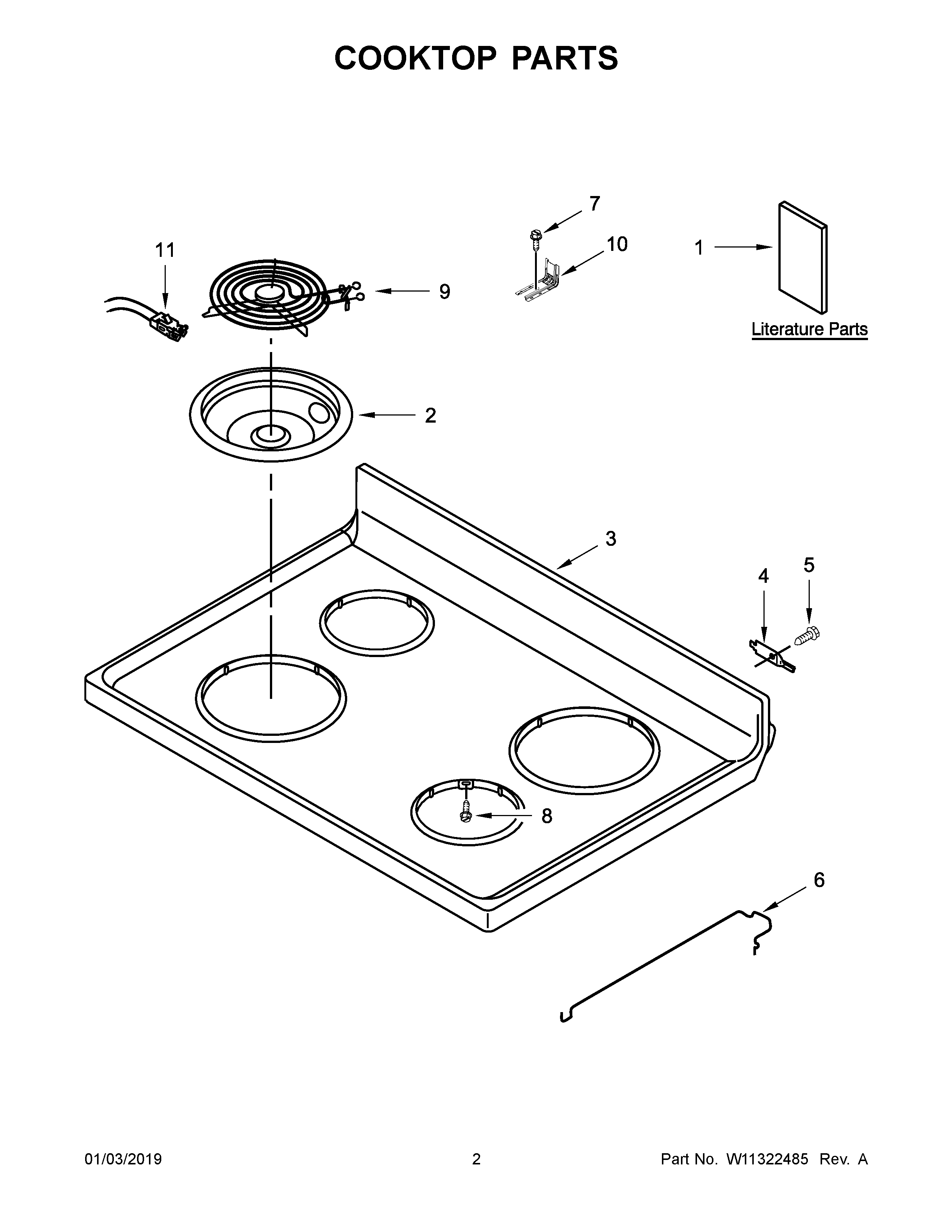

WFC315S0HW0 02 – COOKTOP PARTS

Products

Position	Product
NI	W11403715 Whirlpool Wire Harness
NI	W11396691 Whirlpool Element Receptacle and Wire Kit
NI	CABINET (NOT A SERVICEABLE PART)
1A	DIAGRAM, WIRING
1B	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE AND CARE
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
2A	DRIP BOWL 8" W/HOLE CHROME
3	8195532 Whirlpool Cooktop Power Switch
4	WP3195060 Whirlpool Cooktop Pin
5	SCREW
6	WP3195812 Whirlpool Cooktop Rod
7	SCREW, ANTI-TIP KIT
8	WP3196154 Whirlpool Screw Assembly
9	W11396792 Whirlpool Surface Coil Element
9A	ELMNT-SURF
10	W11447673 Whirlpool Range Tip Anchor
11	814399 Whirlpool Receptacle Kit
