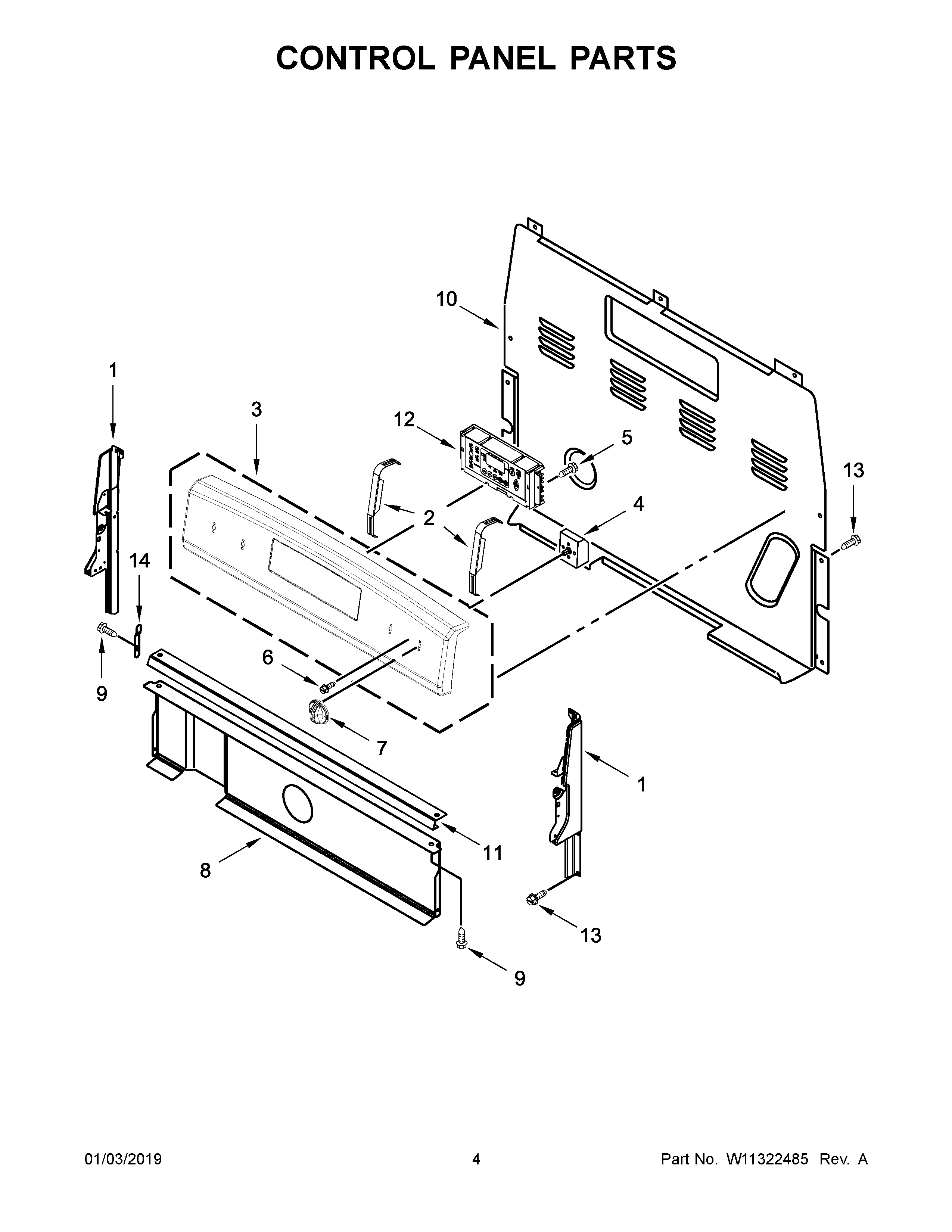

WFC315S0HW0 03 – CONTROL PANEL PARTS

WFC315S0HW0 03 – CONTROL PANEL PARTS

Written by

in

WFC315S0HW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2W11230932 Whirlpool Bracket Mounting
3W11323155 Whirlpool Control Panel
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5WP3196557 Whirlpool Screw
6WP3400882 Whirlpool Screw
7W11158173 Whirlpool Knob Assembly
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11546660-includeCORE Whirlpool W11546660 Refrigerator Electronic Control Board + Core
13SCREW
143196200 Whirlpool Clip
