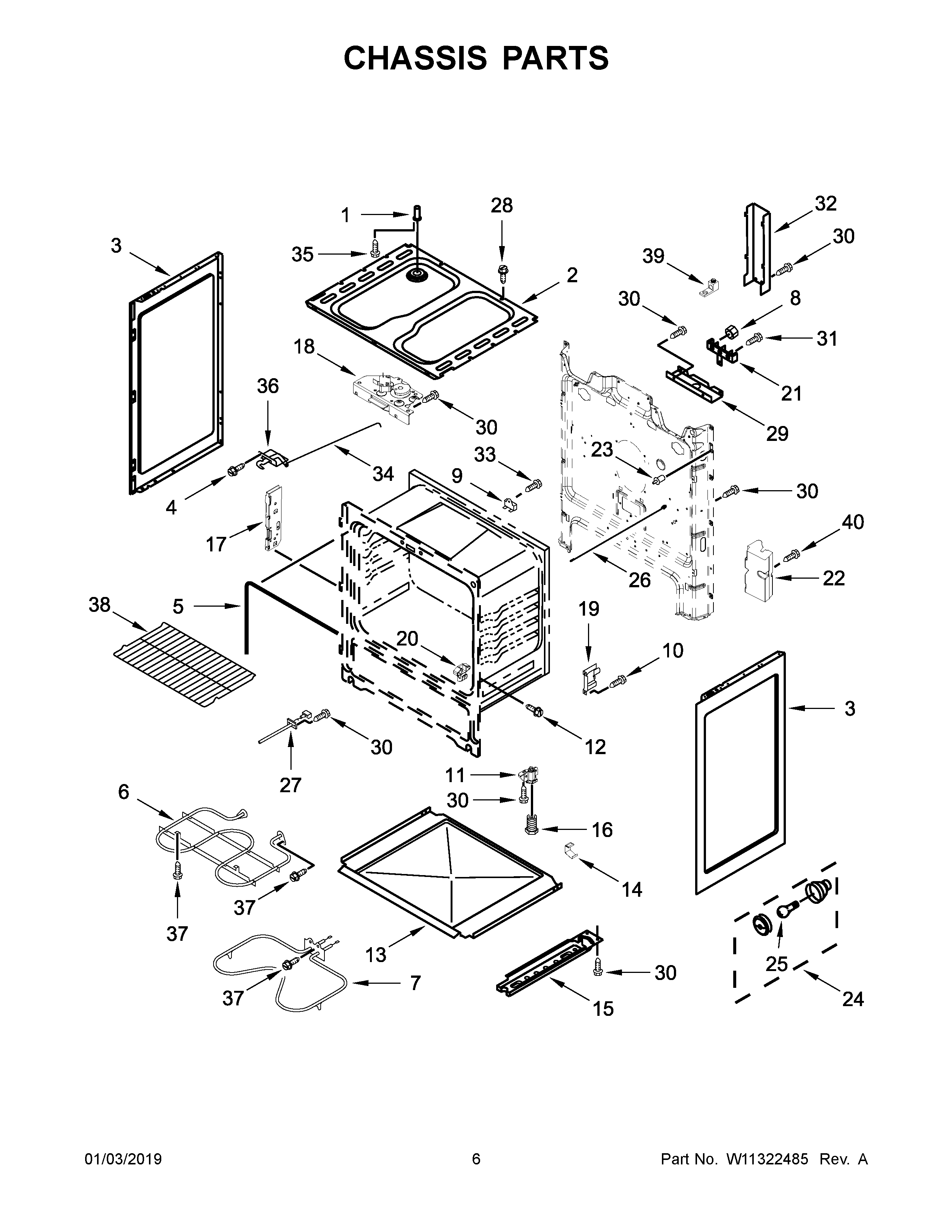

WFC315S0HW0 04 – CHASSIS PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11161831 Whirlpool Insulation
NIW11311894 Whirlpool Insulation
1VENT TUBE
2W11699791 Whirlpool Burner Box
3WPW10575396 Whirlpool Side Panel
4W11169708 Whirlpool Screw
5W11542153 Whirlpool Door Gasket
6W10856603 Whirlpool Broil Element
7W11182108 Whirlpool Bake Element
8WP3400029 Whirlpool Dishwasher Nut
9WP3196548 Whirlpool Thermal Fuse
10WP3196557 Whirlpool Screw
11WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12WPW10067840 Whirlpool Screw
13WP8054068 Whirlpool Retainer
14W10137382 Whirlpool Clip
15AWPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17W10647259 Whirlpool Hinge Receiver
18WPW10107820 Whirlpool Door Latch
19W10404688 Whirlpool Bracket Support
20W10807823 Whirlpool Drawer Glide
21WPW10245259 Whirlpool Terminal Block
22W11135752 Whirlpool Anchor Tip
23WP9757262 Whirlpool Light Switch
24W11594027 Whirlpool Range Oven Light Socket
25BULB-LIGHT
269757239 Whirlpool Oven Door Rod
27WPW10181986 Whirlpool Oven Sensor
28WP3196175 Whirlpool Screw
29W11728255 Whirlpool Service Bracket
30SCREW
31WP3400016 Whirlpool Screw Assembly
32WPW10326122 Whirlpool Black Cover
333196172 Whirlpool Oven Screw
34Rod, Latch
35WP3196567 Whirlpool Screw
36WP9761013 Whirlpool Door Latch
37WP3196174 Whirlpool Screw
38RACK-OVEN
39WPW10281322 Whirlpool Connector
40W11135756 Whirlpool Screw Torx
