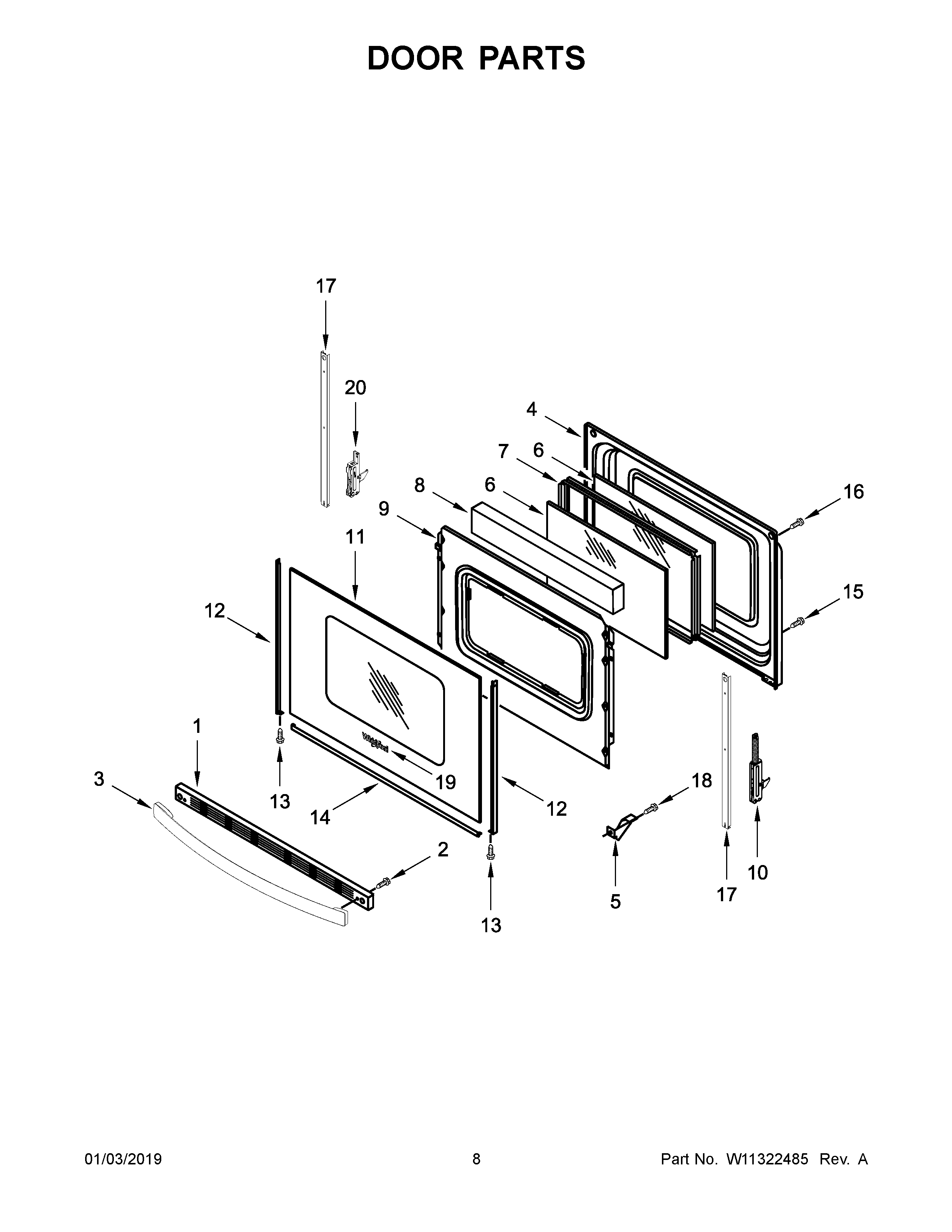

WFC315S0HW0 05 – DOOR PARTS

WFC315S0HW0 05 – DOOR PARTS

Written by

in

WFC315S0HW0 05 – DOOR PARTS

Products

PositionProduct
1W10817433 Whirlpool Vent Trim
2W10831019 Whirlpool Stove Door Screw
3W11590861 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5W10137382 Whirlpool Clip
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299226 Whirlpool Door Hinge
11WPW10409945 Whirlpool Glass Door
12AWP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
13WP355214 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16WPW10200660 Whirlpool Range Oven Door Handle Screw
17W11502236 Whirlpool Door Trim
18WP3196175 Whirlpool Screw
19W11178521 Whirlpool Dishwasher Nameplate
20WPW10299227 Whirlpool Range Door Hinge
