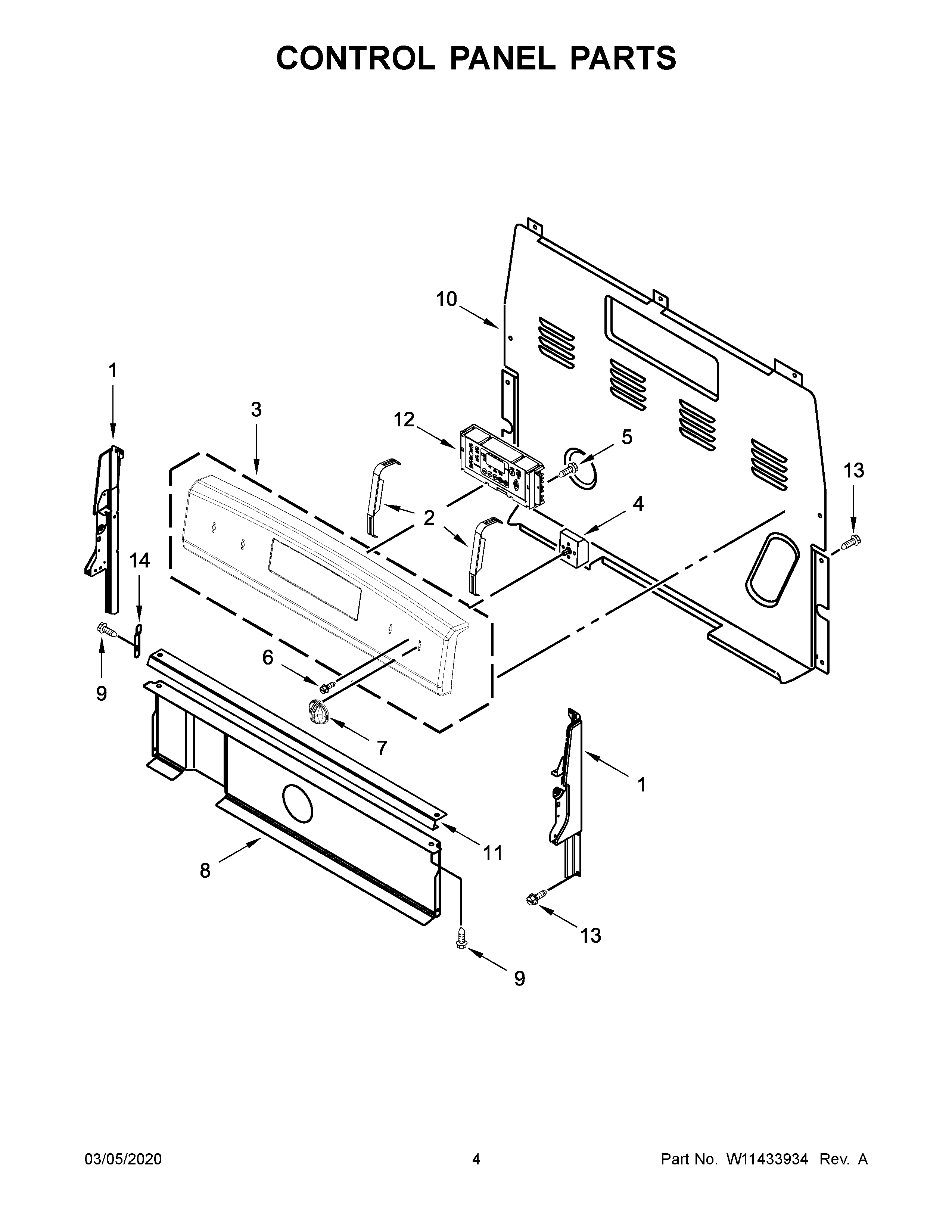

WFC315S0JB0 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W11219370 Whirlpool Endcap Panel
1B	W11219365 Whirlpool Panel Endcap
1A	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	W11230932 Whirlpool Bracket Mounting
3	W11550179 Whirlpool Control Panel
3A	W11323155 Whirlpool Control Panel
4A	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP3196557 Whirlpool Screw
6	WP3400882 Whirlpool Screw
7	W11158169 Whirlpool Knob
7A	W11158173 Whirlpool Knob Assembly
8	W10134247 Whirlpool Heat Shield
9	WP3196175 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	W11528354-includeCORE Whirlpool W11528354 Washer Electronic Control Board
12A	W11528353 Whirlpool Electronic Control Board + Core
13	SCREW
14	3196200 Whirlpool Clip
