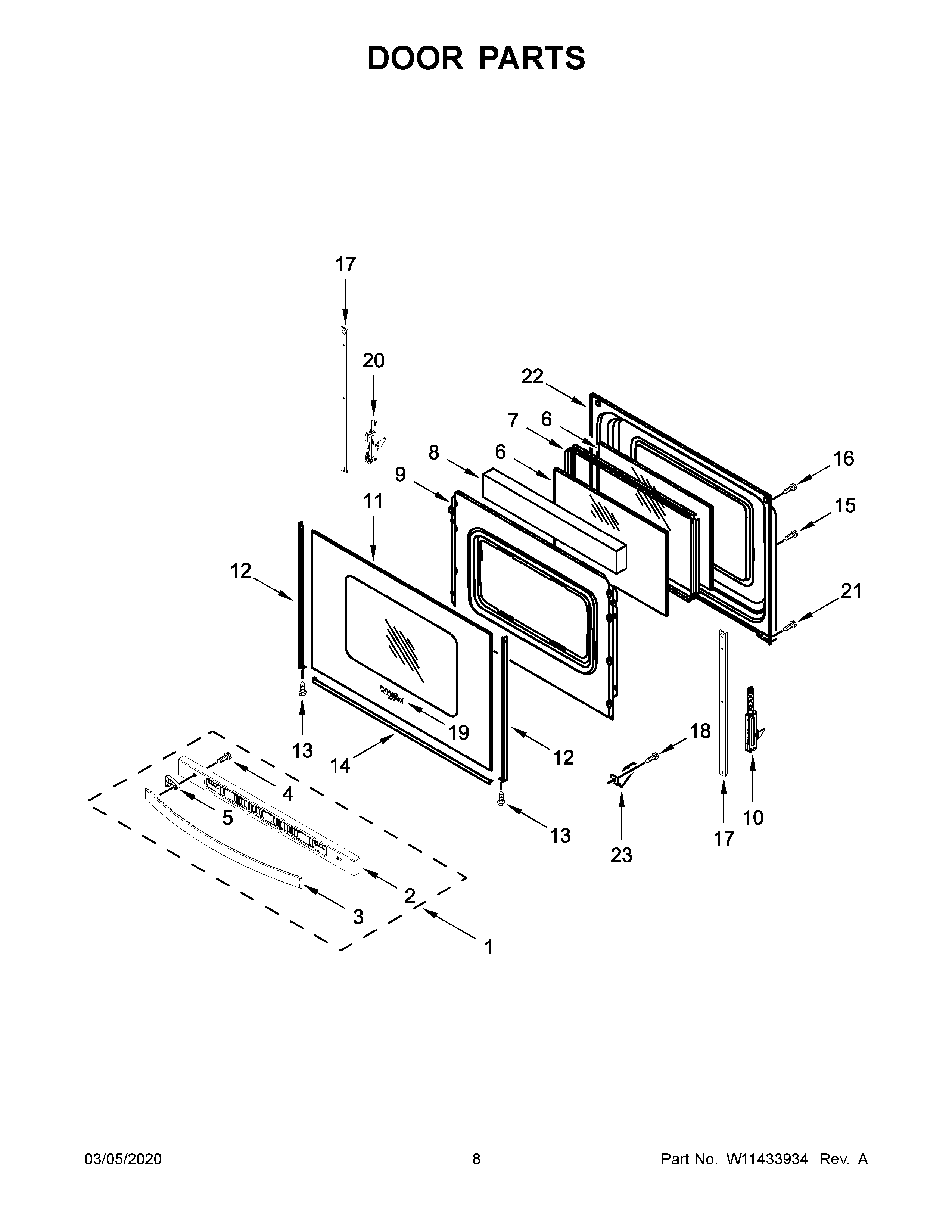

WFC315S0JW0 05 – DOOR PARTS

WFC315S0JW0 05 – DOOR PARTS

Written by

in

WFC315S0JW0 05 – DOOR PARTS

Products

PositionProduct
1AW11590861 Whirlpool Door Handle
1W11553213 Whirlpool Door Handle
2TRIM-VENT
2AW10817433 Whirlpool Vent Trim
3W11107394 Whirlpool Door Handle
3AW11107407 Whirlpool Door Handle
4W10831019 Whirlpool Stove Door Screw
5CABINET (NOT A SERVICEABLE PART)
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299226 Whirlpool Door Hinge
11AWPW10409945 Whirlpool Glass Door
11WPW10409946 Whirlpool Door Glass
12AW10761014 Whirlpool Right Door Trim
12CWP8523166 Whirlpool Door Trim
12BWP8523172 Whirlpool Left Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13WP355214 Whirlpool Screw
14AWP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16WPW10200660 Whirlpool Range Oven Door Handle Screw
17W11502236 Whirlpool Door Trim
18WP3196175 Whirlpool Screw
19W11178521 Whirlpool Dishwasher Nameplate
20WPW10299227 Whirlpool Range Door Hinge
21W10777162 Whirlpool Screw
22WP9761344 Whirlpool Door Liner
23W10137382 Whirlpool Clip
