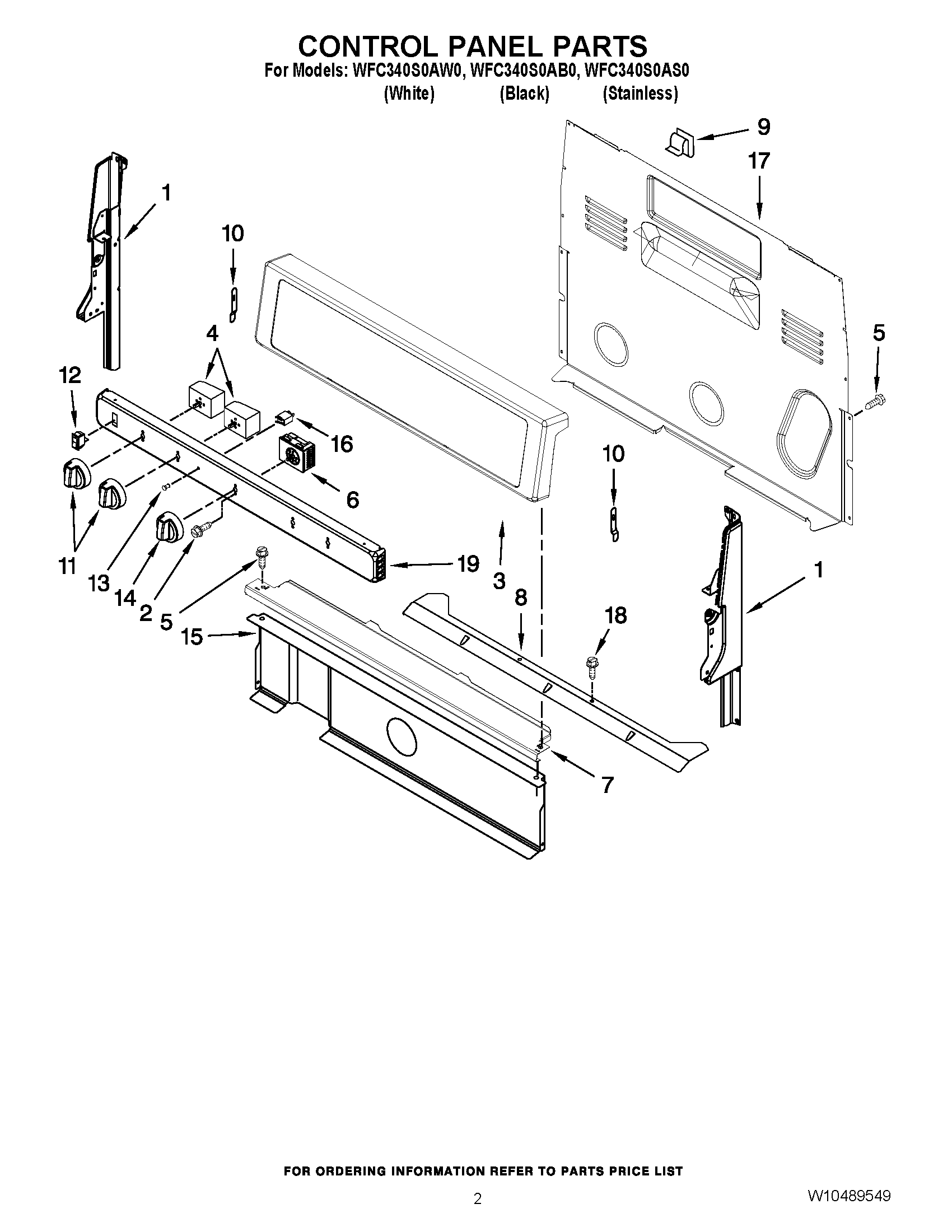

WFC340S0AB0 02 – CONTROL PANEL PARTS

WFC340S0AB0 02 – CONTROL PANEL PARTS

Written by

in

WFC340S0AB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2WP3400882 Whirlpool Screw
3PANEL, CONSOLE (BLACK)
3PANEL, CONSOLE (WHITE)
3PANEL, CONSOLE (STAINLESS)
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5SCREW
6WPW10363198 Whirlpool Oven Switch
7W10525121 Whirlpool Control Bracket
8SHIELD, WIRING
9WP8273564 Whirlpool Clip
103196200 Whirlpool Clip
11KNOB, INFINITE (WHITE)
11W10339449 Whirlpool Knob
12WP4314961 Whirlpool Lite Switch
123149360 Whirlpool Light Switch
13WP3196068 Whirlpool Light Lens
14KNOB, THERMOSTAT (BLACK)
14KNOB, THERMOSTAT (WHITE)
15W10134247 Whirlpool Heat Shield
16WP8523265 Whirlpool Indicator Light
17WP8272473 Whirlpool Rear Cover
18WP3196557 Whirlpool Screw
19W10356277 Whirlpool Manifold
19PANEL, MANIFOLD (WHITE)
