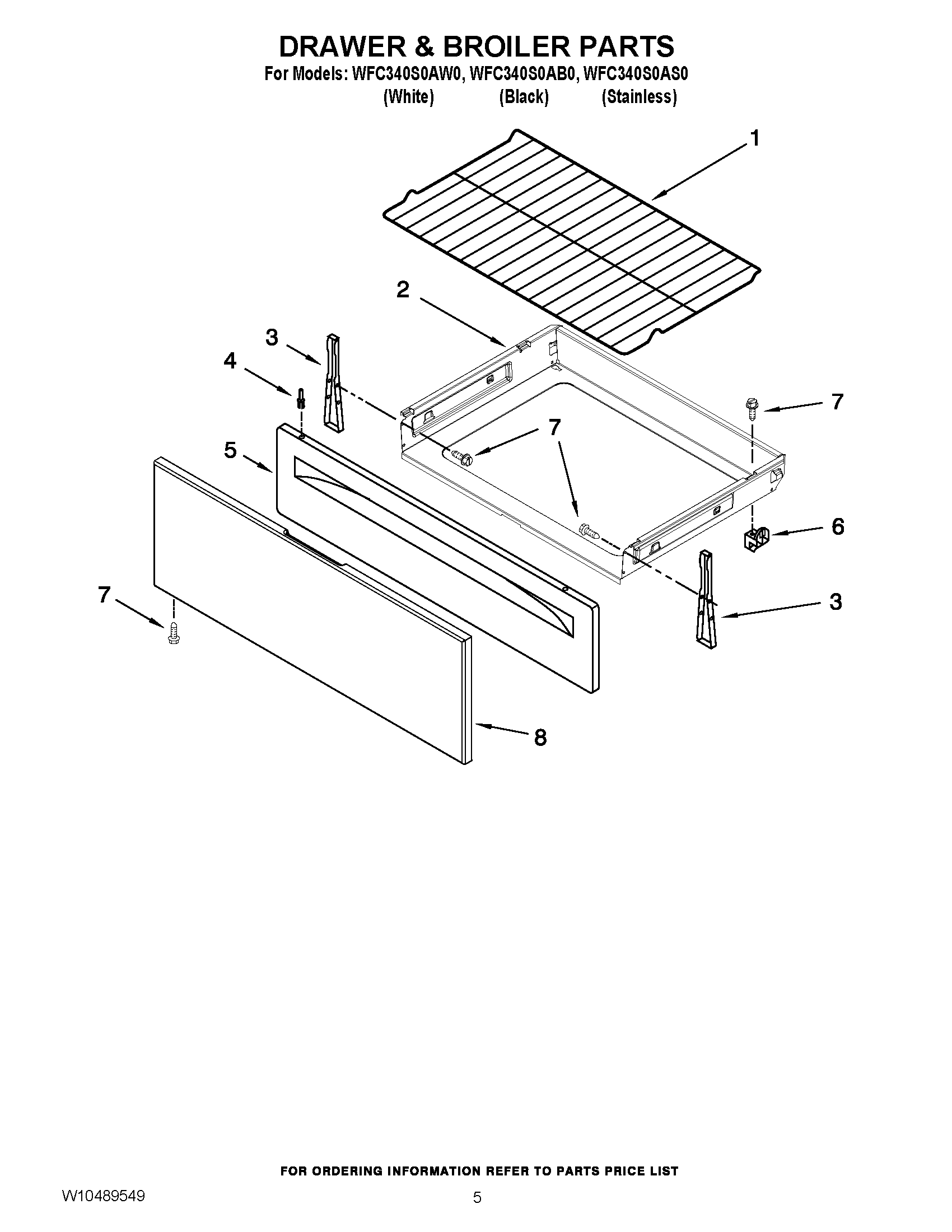

WFC340S0AB0 04 – DRAWER & BROILER PARTS

WFC340S0AB0 04 – DRAWER & BROILER PARTS

Written by

in

WFC340S0AB0 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2W10813962 Whirlpool Utility Drawer
3W10462911 Whirlpool Bracket Mounting
3BRKT-MNTG
4WP3196814 Whirlpool Rivet
4WP3196813 Whirlpool Rivet
5W11230486 Whirlpool Drawer Panel
5W11230490 Whirlpool Drawer Panel
6GLIDE-RANGE DRAWER KIT
7WP3196175 Whirlpool Screw
8W11256444 Whirlpool Drawer Panel
