WFC340S0EB0 02 – COOKTOP PARTS
Written by
in

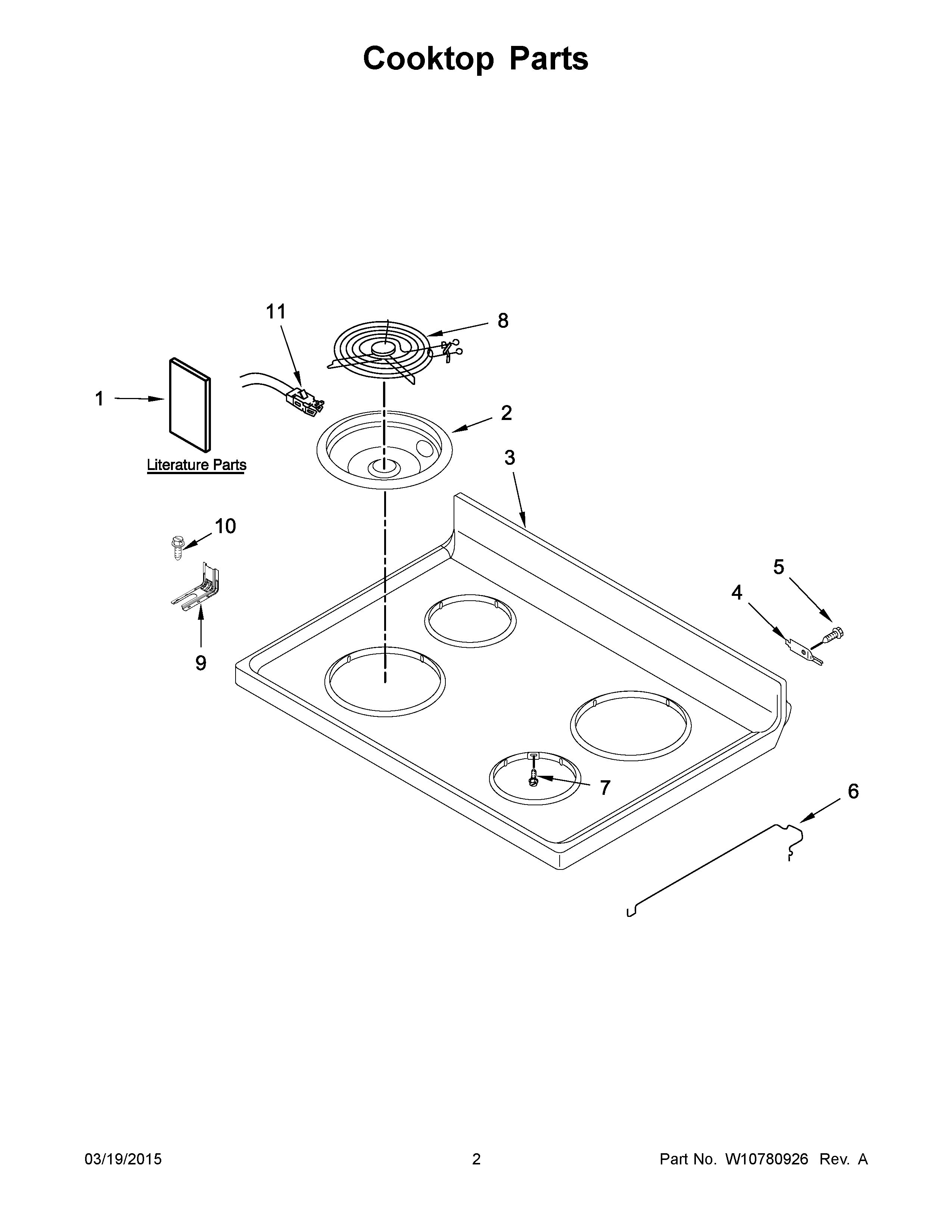

WFC340S0EB0 02 – COOKTOP PARTS
Products
Position
Product
NI
W10453872 Whirlpool Wire Harness
NI
CABINET (NOT A SERVICEABLE PART)
NI
HARNESS, COOKTOP
NI
CLIP, HARNESS
NI
3184020 Whirlpool Oven Wire
1
INSTRUCTIONS, INSTALLATION
1B
OWNERS MANUAL
1A
SHEET, TECH
1C
SAFER COOKING TIPS (ENGLISH
2
WPW10196406 Whirlpool 6" Chrome Drip Bowl
2A
DRIP BOWL 8" W/HOLE CHROME
3
8195532 Whirlpool Cooktop Power Switch
3A
8195534 Whirlpool Cooktop
4
WP3195060 Whirlpool Cooktop Pin
5
SCREW
6
WP3195812 Whirlpool Cooktop Rod
7
WP3196154 Whirlpool Screw Assembly
8A
W11161939 Whirlpool Range Surface Element 8"
8
W11168414 Whirlpool Range 6" Surface Element
9
SCREW, ANTI-TIP KIT
10
W11447673 Whirlpool Range Tip Anchor
11
814399 Whirlpool Receptacle Kit
←
