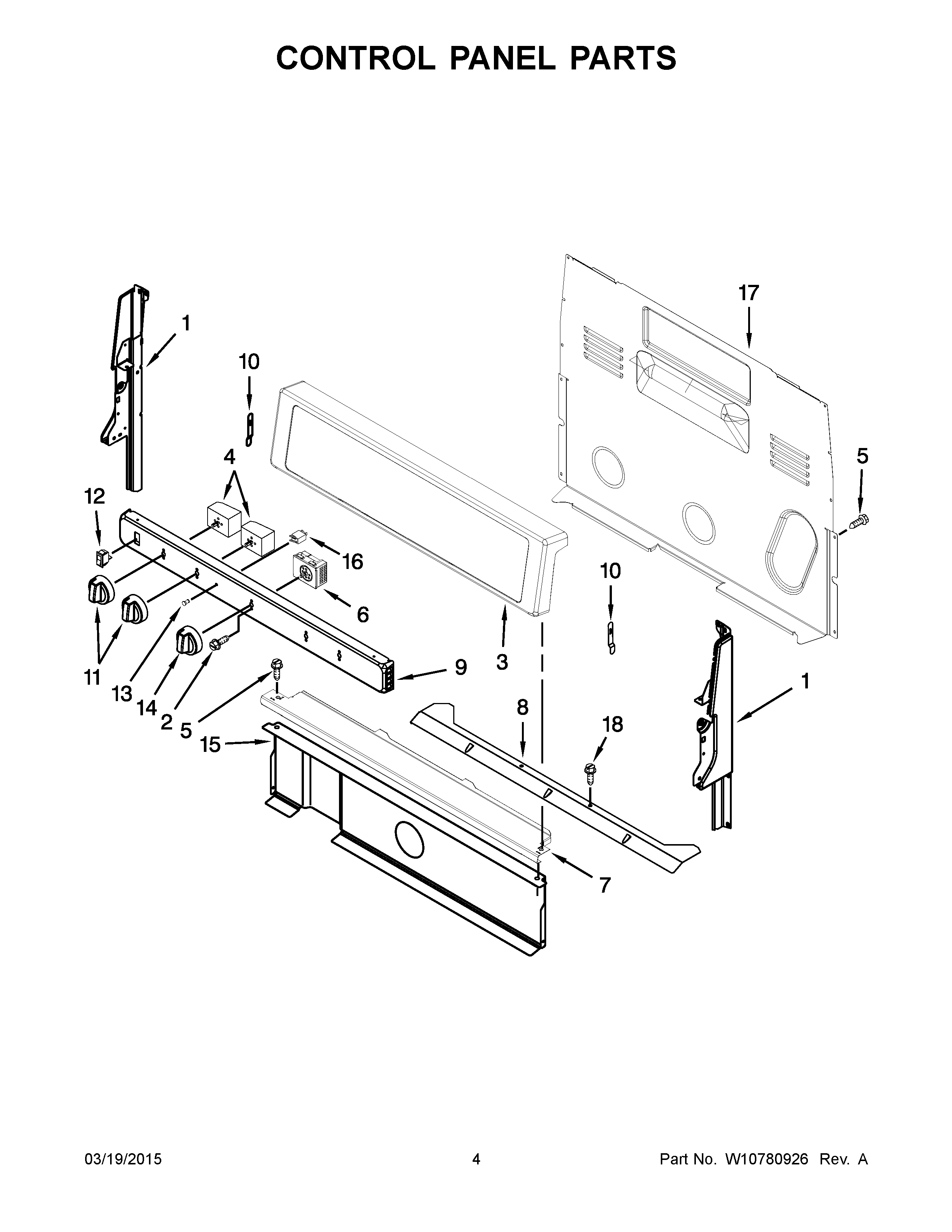

WFC340S0EB0 03 – CONTROL PANEL PARTS

WFC340S0EB0 03 – CONTROL PANEL PARTS

Written by

in

WFC340S0EB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1CW11219665 Whirlpool Panel Endcap
1BW11219664 Whirlpool Endcap Panel
1AW11219370 Whirlpool Endcap Panel
2WP3400882 Whirlpool Screw
3BPANEL, CONSOLE (STAINLESS)
3APANEL, CONSOLE (BLACK)
3PANEL, CONSOLE (WHITE)
4SWITCH-INF
4AWP3149404 Whirlpool Oven Surface Element Switch
5SCREW
6WPW10363198 Whirlpool Oven Switch
7W10525121 Whirlpool Control Bracket
8SHIELD, WIRING
9PANEL, MANIFOLD (WHITE)
9AW10356277 Whirlpool Manifold
103196200 Whirlpool Clip
11AW10676223 Whirlpool Knob
11W10676224 Whirlpool Knob
123149360 Whirlpool Light Switch
12AWP4314961 Whirlpool Lite Switch
13WP3196068 Whirlpool Light Lens
14W10676226 Whirlpool Knob
14AW10676225 Whirlpool Knob Assembly
15W10134247 Whirlpool Heat Shield
16WP8523265 Whirlpool Indicator Light
17WP8272473 Whirlpool Rear Cover
18WP3196557 Whirlpool Screw
