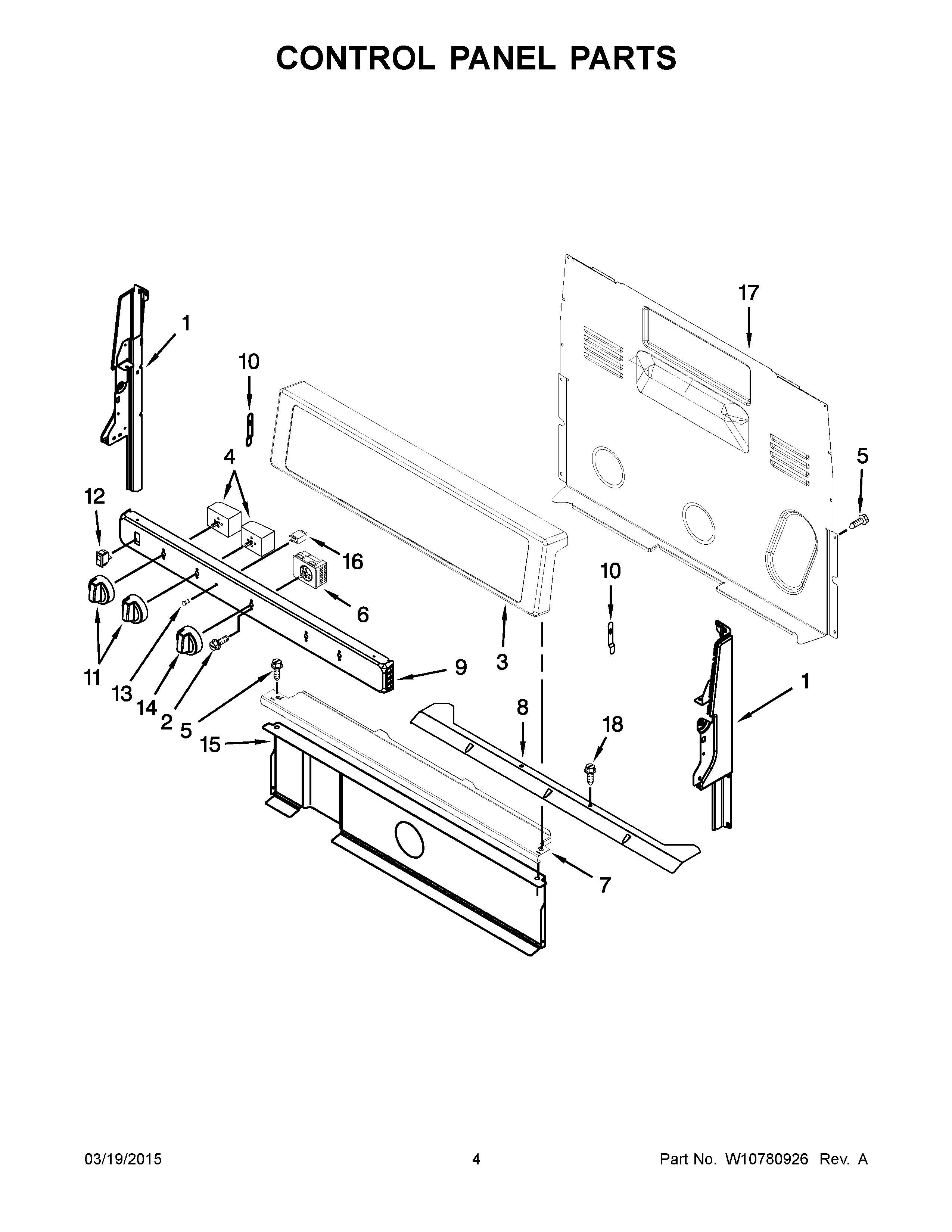

WFC340S0ES0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1C	W11219665 Whirlpool Panel Endcap
1B	W11219664 Whirlpool Endcap Panel
1A	W11219370 Whirlpool Endcap Panel
2	WP3400882 Whirlpool Screw
3B	PANEL, CONSOLE (STAINLESS)
3A	PANEL, CONSOLE (BLACK)
3	PANEL, CONSOLE (WHITE)
4	SWITCH-INF
4A	WP3149404 Whirlpool Oven Surface Element Switch
5	SCREW
6	WPW10363198 Whirlpool Oven Switch
7	W10525121 Whirlpool Control Bracket
8	SHIELD, WIRING
9	PANEL, MANIFOLD (WHITE)
9A	W10356277 Whirlpool Manifold
10	3196200 Whirlpool Clip
11A	W10676223 Whirlpool Knob
11	W10676224 Whirlpool Knob
12	3149360 Whirlpool Light Switch
12A	WP4314961 Whirlpool Lite Switch
13	WP3196068 Whirlpool Light Lens
14	W10676226 Whirlpool Knob
14A	W10676225 Whirlpool Knob Assembly
15	W10134247 Whirlpool Heat Shield
16	WP8523265 Whirlpool Indicator Light
17	WP8272473 Whirlpool Rear Cover
18	WP3196557 Whirlpool Screw
