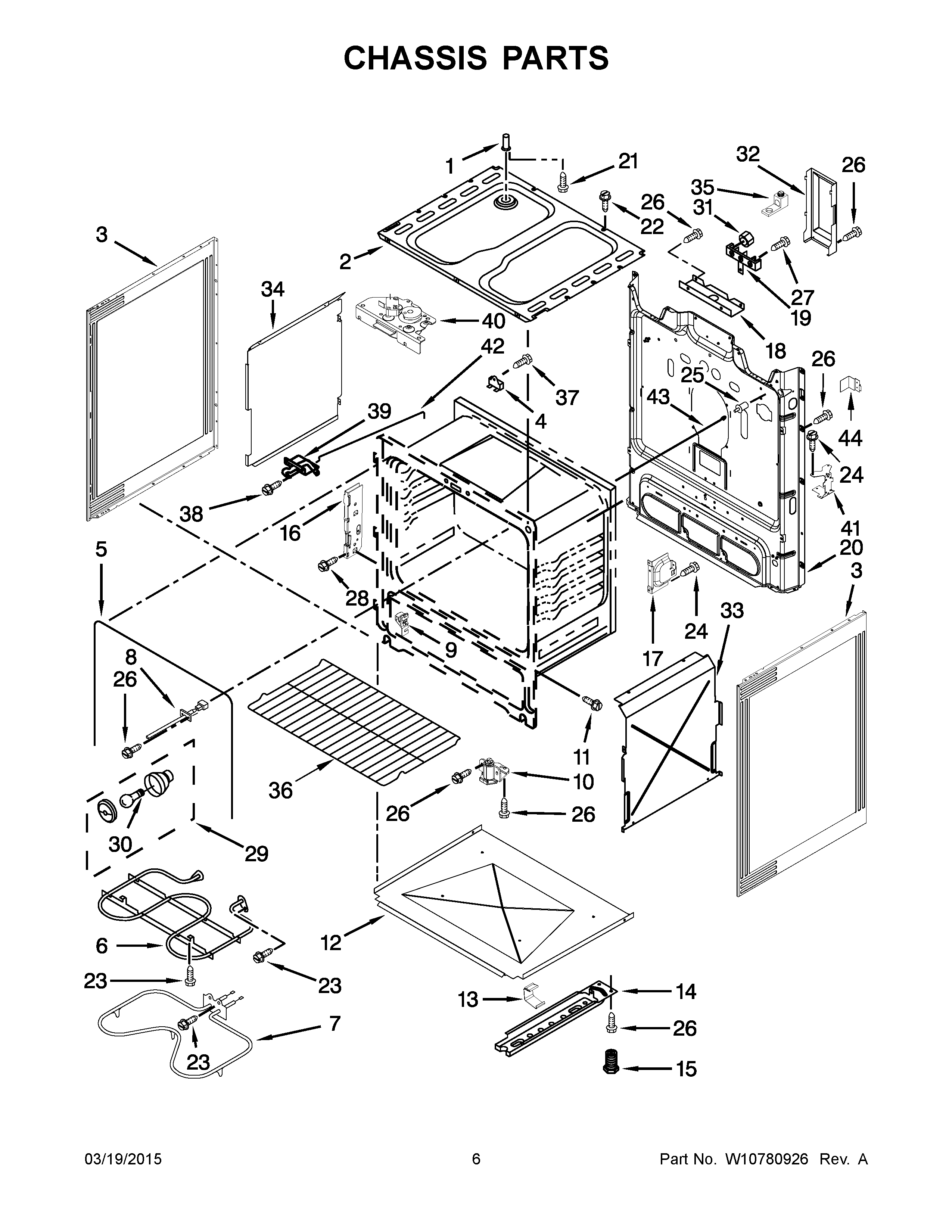

WFC340S0ES0 04 – CHASSIS PARTS

WFC340S0ES0 04 – CHASSIS PARTS

Written by

in

WFC340S0ES0 04 – CHASSIS PARTS

Products

PositionProduct
NIWP8272612 Whirlpool Insulation
NIINSULATION, WRAP
1VENT TUBE
2BOX-BURNER
3AW11730303 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
4WP3196548 Whirlpool Thermal Fuse
5W11542153 Whirlpool Door Gasket
6W10856603 Whirlpool Broil Element
7W11447783 Whirlpool Bake Element
8WPW10181986 Whirlpool Oven Sensor
9W10807823 Whirlpool Drawer Glide
10WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11WPW10067840 Whirlpool Screw
12TRAY, INSULATION
13W10137382 Whirlpool Clip
14WPW10306546 Whirlpool Base Rail
15WPW10058460 Whirlpool Appliance Levelling Leg
16W10647259 Whirlpool Hinge Receiver
17W10404688 Whirlpool Bracket Support
18W11728255 Whirlpool Service Bracket
19WPW10245259 Whirlpool Terminal Block
20W10224919 Whirlpool Rear Cover
21WP3196567 Whirlpool Screw
22WP3400832 Whirlpool Screw
23WP3196174 Whirlpool Screw
24WP3196557 Whirlpool Screw
25W11243424 Whirlpool Light Switch
26SCREW
27WP3400016 Whirlpool Screw Assembly
28W10777162 Whirlpool Screw
29W11594027 Whirlpool Range Oven Light Socket
30RANGE ONLY 40W 120V APPL BULB
31Nut
32WPW10326122 Whirlpool Black Cover
339761448 Whirlpool Oven Retainer
349761449 Whirlpool Oven Retainer
35WPW10281322 Whirlpool Connector
36RACK-OVEN
373196172 Whirlpool Oven Screw
38W11169708 Whirlpool Screw
39WP9761013 Whirlpool Door Latch
40WPW10107830 Whirlpool Stove Door Lock Latch Assembly
418523249 Whirlpool Oven Support Bracket
42W10078370 Whirlpool Latch Rod
439757239 Whirlpool Oven Door Rod
44SHIELD, HEAT
