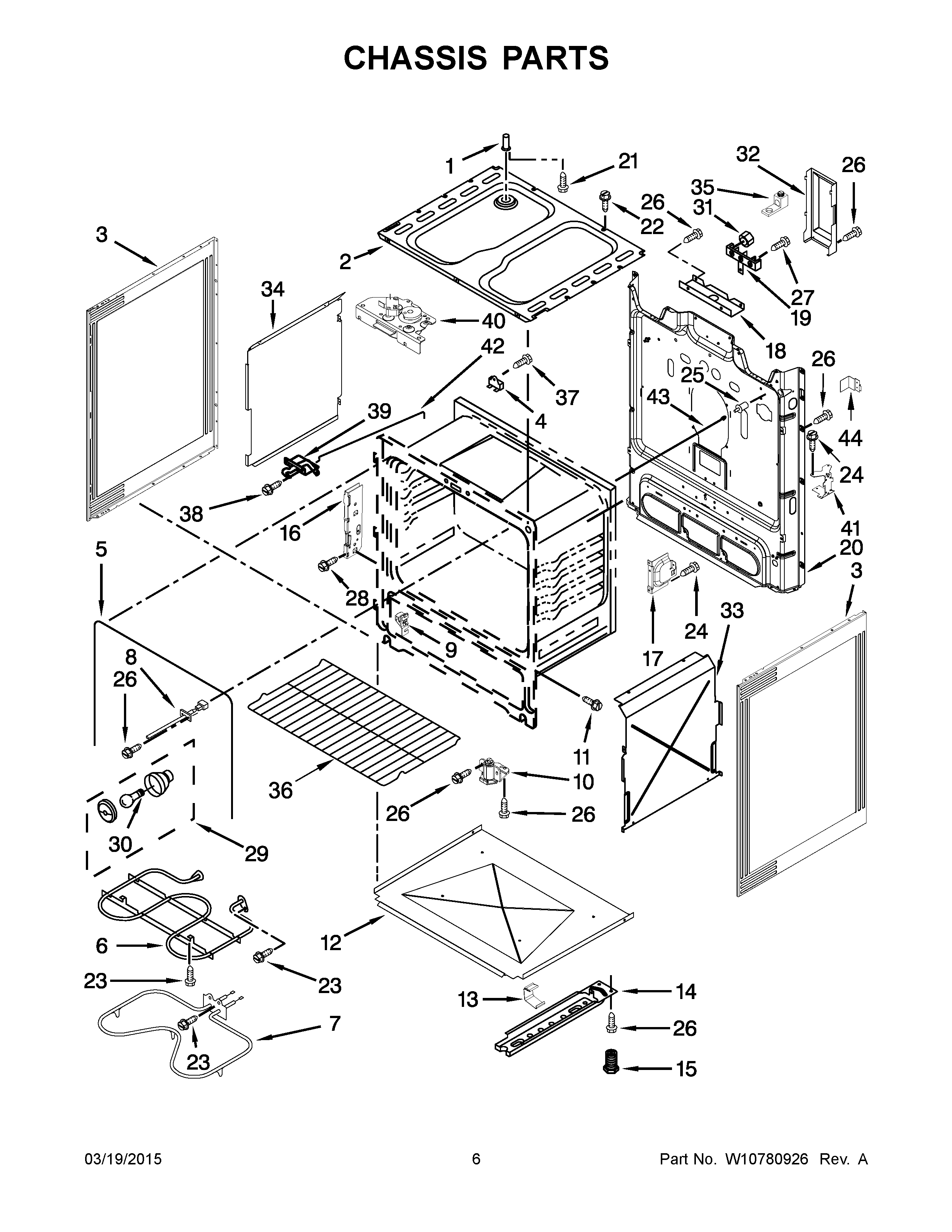

WFC340S0EW0 04 – CHASSIS PARTS

Products

Position	Product
NI	WP8272612 Whirlpool Insulation
NI	INSULATION, WRAP
1	VENT TUBE
2	BOX-BURNER
3A	W11730303 Whirlpool Side Panel
3	WPW10575396 Whirlpool Side Panel
4	WP3196548 Whirlpool Thermal Fuse
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	W11447783 Whirlpool Bake Element
8	WPW10181986 Whirlpool Oven Sensor
9	W10807823 Whirlpool Drawer Glide
10	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11	WPW10067840 Whirlpool Screw
12	TRAY, INSULATION
13	W10137382 Whirlpool Clip
14	WPW10306546 Whirlpool Base Rail
15	WPW10058460 Whirlpool Appliance Levelling Leg
16	W10647259 Whirlpool Hinge Receiver
17	W10404688 Whirlpool Bracket Support
18	W11728255 Whirlpool Service Bracket
19	WPW10245259 Whirlpool Terminal Block
20	W10224919 Whirlpool Rear Cover
21	WP3196567 Whirlpool Screw
22	WP3400832 Whirlpool Screw
23	WP3196174 Whirlpool Screw
24	WP3196557 Whirlpool Screw
25	W11243424 Whirlpool Light Switch
26	SCREW
27	WP3400016 Whirlpool Screw Assembly
28	W10777162 Whirlpool Screw
29	W11594027 Whirlpool Range Oven Light Socket
30	RANGE ONLY 40W 120V APPL BULB
31	Nut
32	WPW10326122 Whirlpool Black Cover
33	9761448 Whirlpool Oven Retainer
34	9761449 Whirlpool Oven Retainer
35	WPW10281322 Whirlpool Connector
36	RACK-OVEN
37	3196172 Whirlpool Oven Screw
38	W11169708 Whirlpool Screw
39	WP9761013 Whirlpool Door Latch
40	WPW10107830 Whirlpool Stove Door Lock Latch Assembly
41	8523249 Whirlpool Oven Support Bracket
42	W10078370 Whirlpool Latch Rod
43	9757239 Whirlpool Oven Door Rod
44	SHIELD, HEAT
