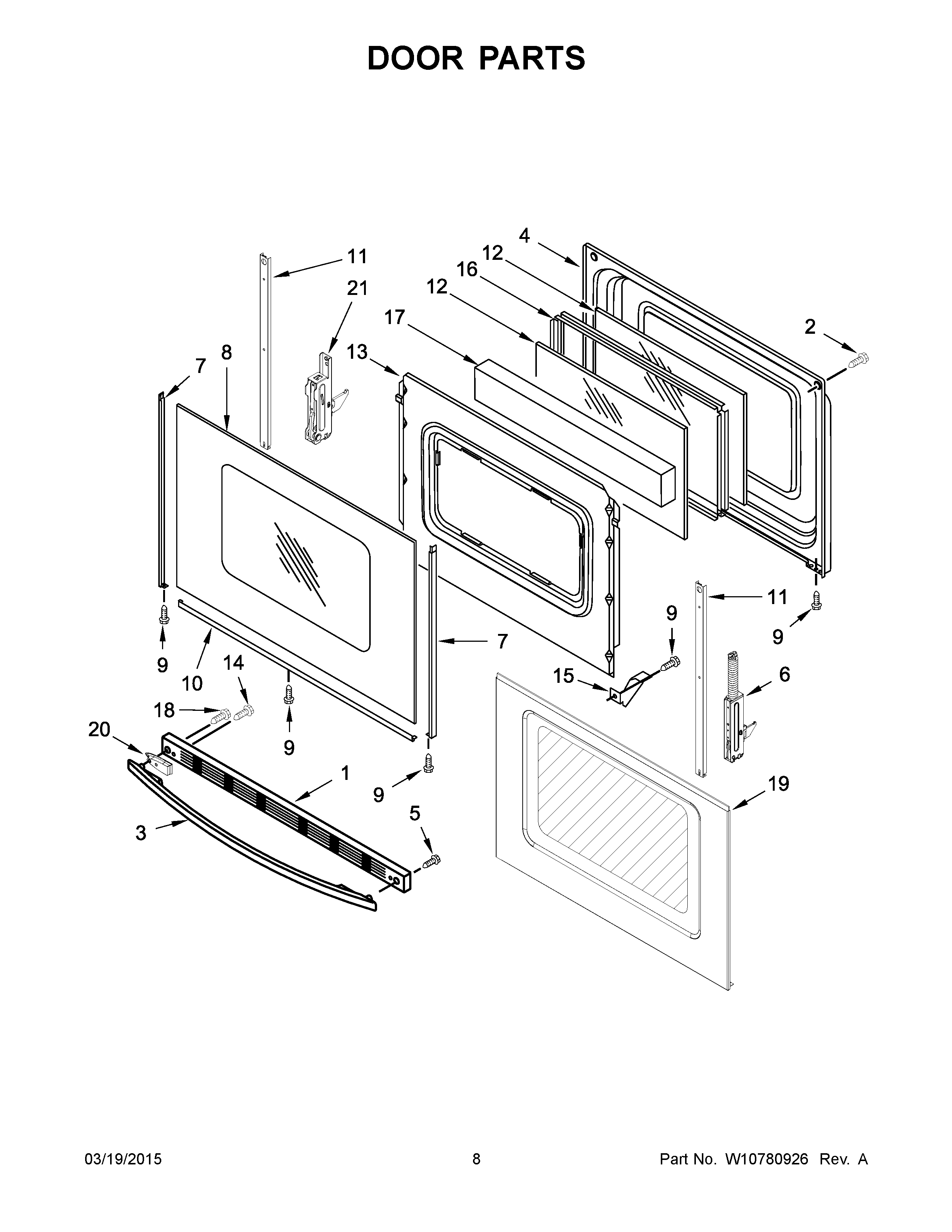

WFC340S0EW0 05 – DOOR PARTS

Products

Position	Product
1A	TRIM-VENT
1	W10817433 Whirlpool Vent Trim
2	W10817436 Whirlpool Screw
3B	WPW10618239 Whirlpool Door Handle
3A	W10300490 Whirlpool Door Handle
3	W10300489 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	W10777162 Whirlpool Screw
6	WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
7C	W10761018 Whirlpool Dishwasher Left Door Trim
7	WP8523172 Whirlpool Left Door Trim
7A	WP8523166 Whirlpool Door Trim
7B	W10761014 Whirlpool Right Door Trim
8	WPW10409945 Whirlpool Glass Door
8A	WPW10409946 Whirlpool Door Glass
9	WP3196175 Whirlpool Screw
10	WP8523175 Whirlpool Door Trim Assembly
10A	WP8523177 Whirlpool Door Trim Assembly
11	W11502236 Whirlpool Door Trim
12	WP8053948 Whirlpool Door Glass
13	W11539580 Whirlpool Retainer
14	WPW10465148 Whirlpool Screw
15	W10137382 Whirlpool Clip
16	WPW10316950 Whirlpool Window Frame
17	WPW10278991 Whirlpool Insulation
18	WPW10200660 Whirlpool Range Oven Door Handle Screw
19	WPW10330077 Whirlpool Door Glass
20	WPW10410341 Whirlpool Spacer
21	WPW10299227 Whirlpool Range Door Hinge
