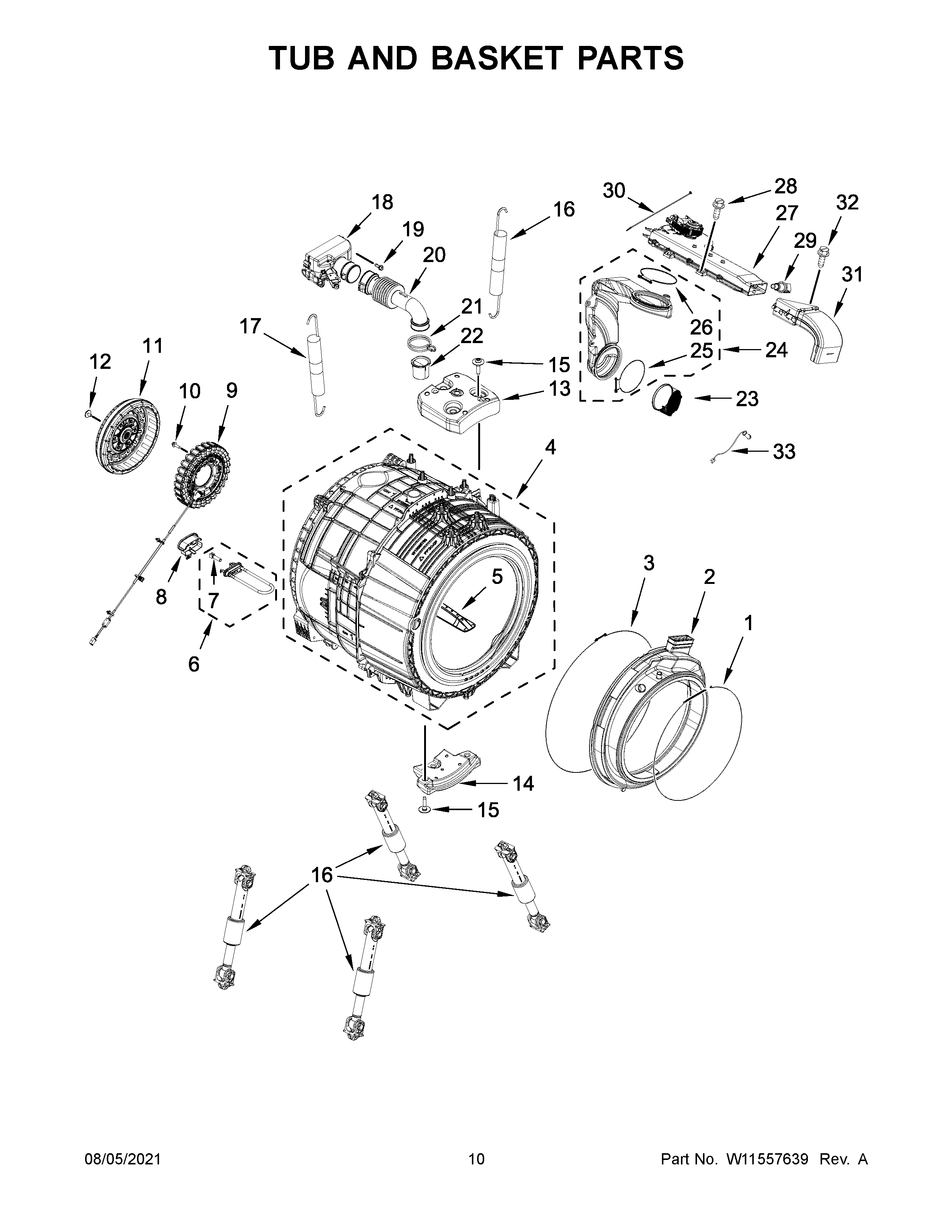

WFC682CLW0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	CLAMP
2	BELLOW
3	W11314649 Whirlpool Clamp
4	W11287253 Whirlpool Outer Tub
5	W11460395 Whirlpool Baffle
6	W11314664 Whirlpool Heater
8	W11314776 Whirlpool Appliance Cover
9	W11354541 Whirlpool Stator
10	W11314661 Whirlpool Screw
11	W11314361 Whirlpool Rotor Assembly
12	W11557803 Whirlpool Screw
13	W11314650 Whirlpool Counterweight
14	W11607191 Whirlpool Counterweight
15	W11314651 Whirlpool Screw
16	SHOCK-ABSR (1 EA)
17	SPRING
18	W11318807 Whirlpool Channel Assembly
19	W11230114 Whirlpool Screw Assembly
20	W11316247 Whirlpool Hose Assembly
21	WP371502 Whirlpool Clamp
22	W11557921 Whirlpool Vent Coupling
23	W11497956 Whirlpool Filter
24	W11497957 Whirlpool Channel
25	W11318727 Whirlpool Hose Clamp
26	CLAMP, DUCT TO DRYER
27	HEATER
28	WPW10004910 Whirlpool Screw
29	W11712681 Whirlpool Sensor
30	WPW10339879 Whirlpool Wire Tie
31	ASSEMBLY, DUCT DRYER TO BELLOW
32	WP489128 Whirlpool Refrigerator Screw
33	W11315707 Whirlpool Light
