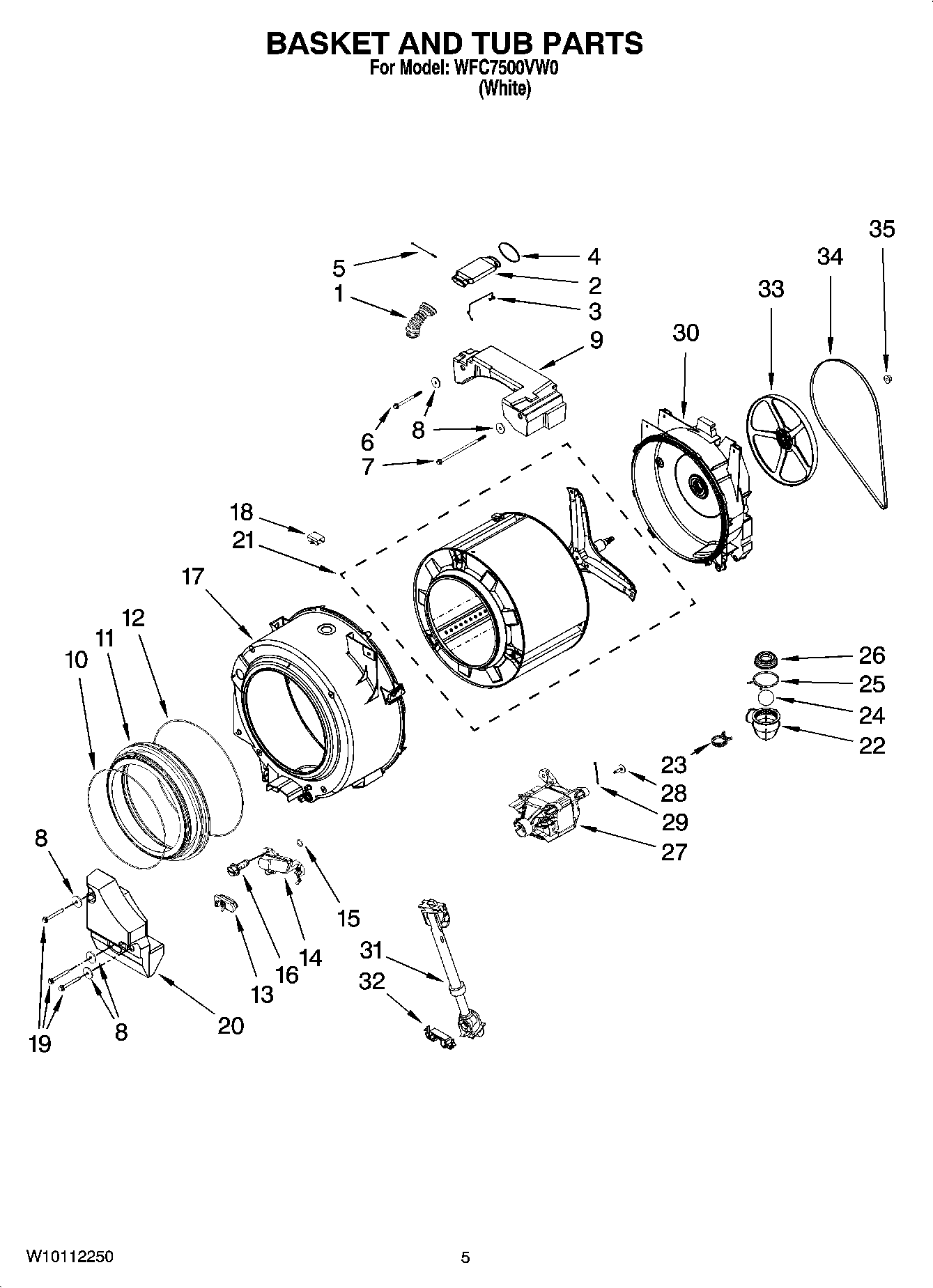

WFC7500VW0 04 – BASKET AND TUB PARTS

Products

Position	Product
1	W11105131 Whirlpool Hose
2	W10192996 Whirlpool Vent Pipe
3	Clamp, Tube Vent
4	W10193039 Whirlpool Clamp
5	Spring, Tube Vent
6	Screw, Short (Counterweight)
7	W10193094 Whirlpool Screw
8	W10193096 Whirlpool Washer
9	WPW10192952 Whirlpool Counterweight
10	W10193044 Whirlpool Clamp
11	BELLOW
12	W10193090 Whirlpool Clamp
13	W10192989 Whirlpool Sensor
14	W10193047 Whirlpool Trap Assembly
15	W10192949 Whirlpool O-Ring
16	Screw, Air-Trap
17	WPW10192959 Whirlpool Outer Tub Assembly
18	W10193053 Whirlpool Clamp
19	Screw, Lower Counterweight
20	W10192954 Whirlpool Counterweight Assembly
21	WPW10192953 Whirlpool Basket
22	W11199482 Whirlpool Hose Assembly
23	W10192948 Whirlpool Hose Clamp
24	W10193033 Whirlpool Ball
25	Clamp, Hose-to-Tub
26	Nut, ECO Flange
27	WPW10192987 Whirlpool Drive Motor
28	W10193095 Whirlpool Screw
29	Tie, Wire (Motor)
30	WPW10192960 Whirlpool Outer Tub
31	WPW10192964 Whirlpool Shock Absorber
32	W10193028 Whirlpool Bracket
33	W10193058 Whirlpool Pulley
34	WPW10192984 Whirlpool Belt
35	W10192946 Whirlpool Nut
