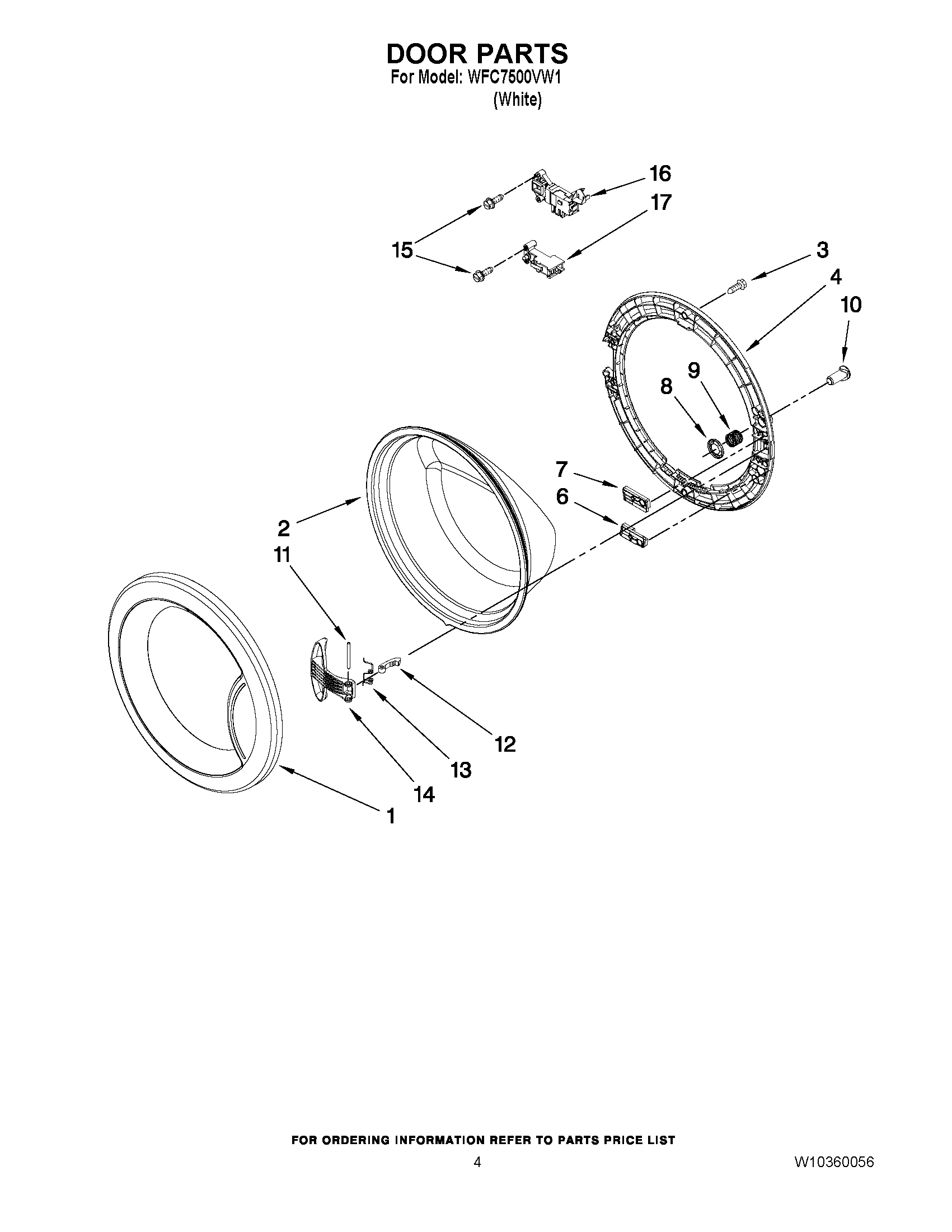

WFC7500VW1 03 – DOOR PARTS

Products

Position	Product
1	WPW10193001 Whirlpool Frame
2	WPW10193025 Whirlpool Glass Door
3	W10193034 Whirlpool Screw
4	W10193022 Whirlpool Support
6	W10196351 Whirlpool Plate
7	W10196350 Whirlpool Plate
8	W10196352 Whirlpool Washer
9	Spring, (Door Safety)
10	Plug
11	W10192947 Whirlpool Shaft
12	WPW10193026 Whirlpool Latch Assembly
13	W10851047 Whirlpool Spring
14	Handle
15	W10193035 Whirlpool Screw
16	WPW10192995 Whirlpool Latch Assembly
17	WPW10192994 Whirlpool Switch
