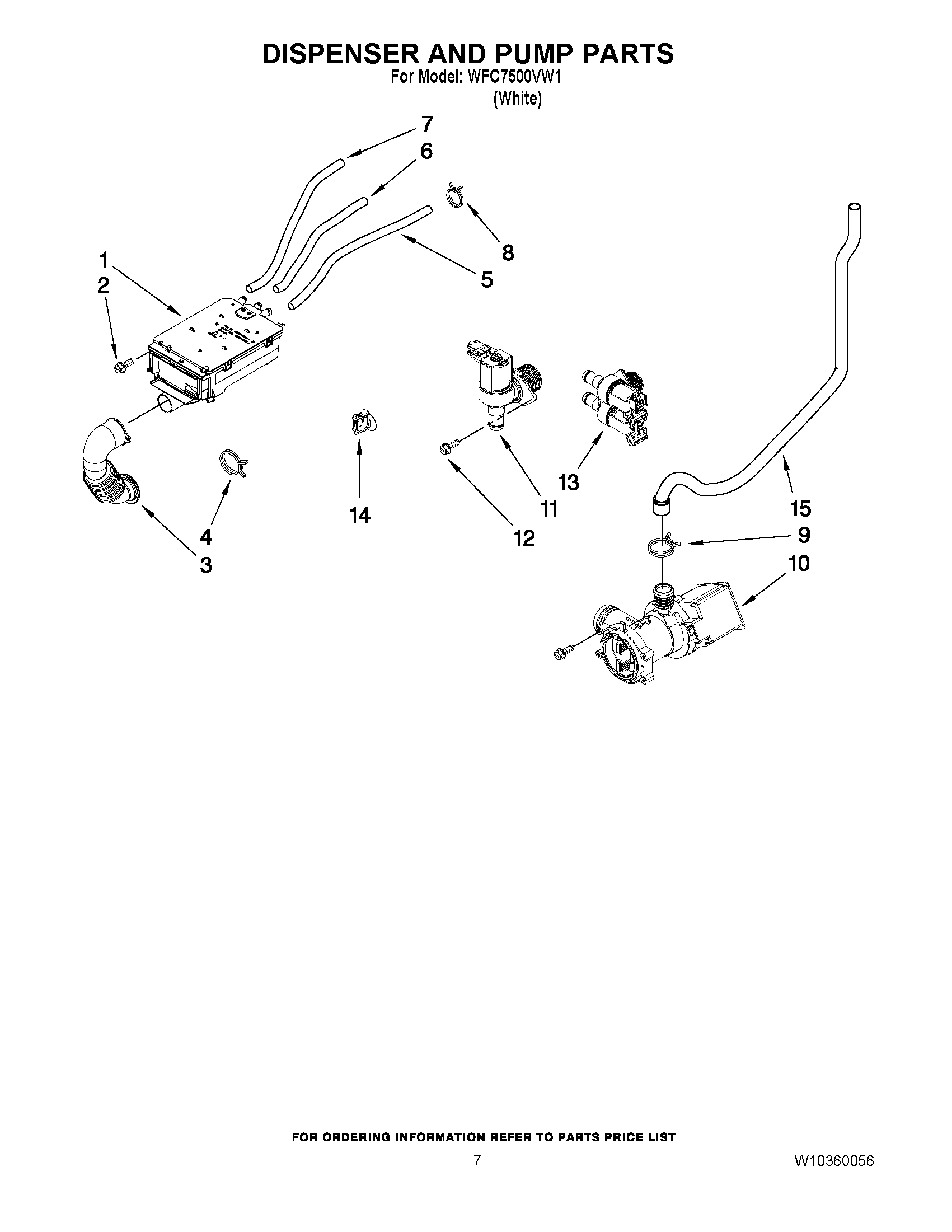

WFC7500VW1 05 – DISPENSER AND PUMP PARTS

WFC7500VW1 05 – DISPENSER AND PUMP PARTS

Written by

in

WFC7500VW1 05 – DISPENSER AND PUMP PARTS

Products

Position	Product
1	WPW10215637 Whirlpool Dispenser
2	W10193100 Whirlpool Screw
3	W10193052 Whirlpool Hose
4	Clamp, Hose
5	W10192979 Whirlpool Hose
6	W10192978 Whirlpool Hose Assembly
7	W10192977 Whirlpool Hose Assembly
8	Clamp, Inlet Hose
9	Clamp, Drain Hose-Pump
10	WPW10465252 Whirlpool Water Pump
11	WPW10192990 Whirlpool Valve
12	W10193107 Whirlpool Screw Assembly
13	WPW10192991 Whirlpool Valve
14	Retainer, Clamp (Valve Wire)
15	WPW10192976 Whirlpool Hose
