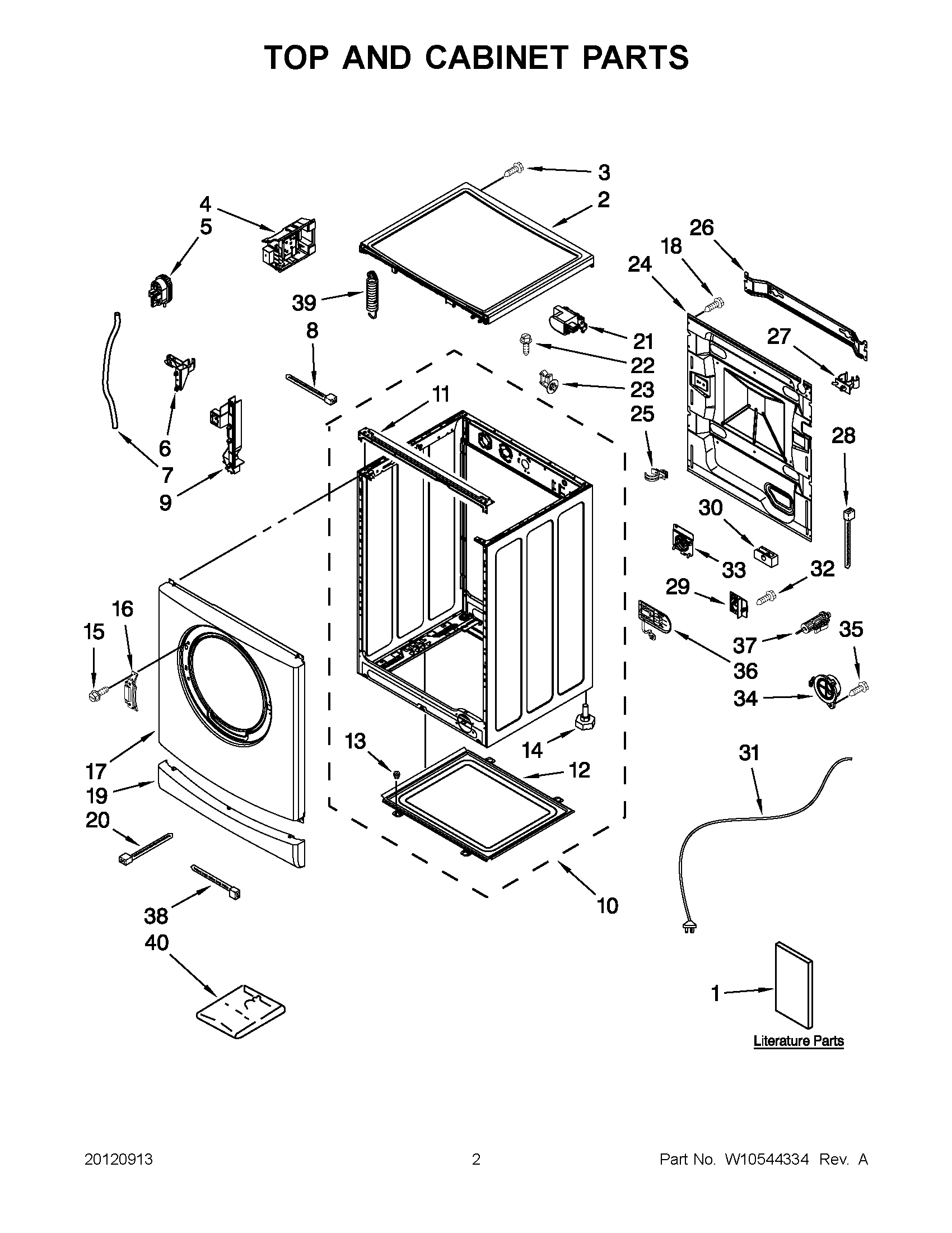

WFC7500VW2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Energy Guide
1	GUIDE (TECH SHEET)
1	Quick Start Guide
2	WPW10192961 Whirlpool Top Assembly
3	W10852931 Whirlpool Screw
4	MCU, Assembly
5	Switch, Pressure
6	Support, Pressure Switch
7	W10193048 Whirlpool Hose
8	Tie, Wire
9	Retainer, Channel
10	Cabinet, Service
11	W10192985 Whirlpool Brace
12	W10193002 Whirlpool Cover
13	Clip, Base Cover
14	WPW10192970 Whirlpool Leveling Feet
15	W10193036 Whirlpool Screw
16	W11243775 Whirlpool Hinge Assembly
17	WPW10192967 Whirlpool Panel
18	W10193107 Whirlpool Screw Assembly
19	WPW10193004 Whirlpool Panel
20	Tie, Wire (Plastic)
21	W10347721 Whirlpool Filter
22	SCREW
23	Retainer, Clamp
24	W10192971 Whirlpool Panel
25	Clip, Drain Hose
26	W10193005 Whirlpool Bracket
27	W10192980 Whirlpool Clip
28	Tie, Wire (Side Panel)
29	W10192957 Whirlpool Clip
30	Strain-Relief
31	W10192958 Whirlpool Power Cord
32	SCREW
33	Clip, Power Cord (Rear Panel)
34	W10192998 Whirlpool Cover
35	SCREW
36	W10917818 Whirlpool Cover
37	WPW10192968 Whirlpool Bolt
38	Tie, Wire (Plastic)
39	W10192955 Whirlpool Spring
40	W10192951 Whirlpool Hose
