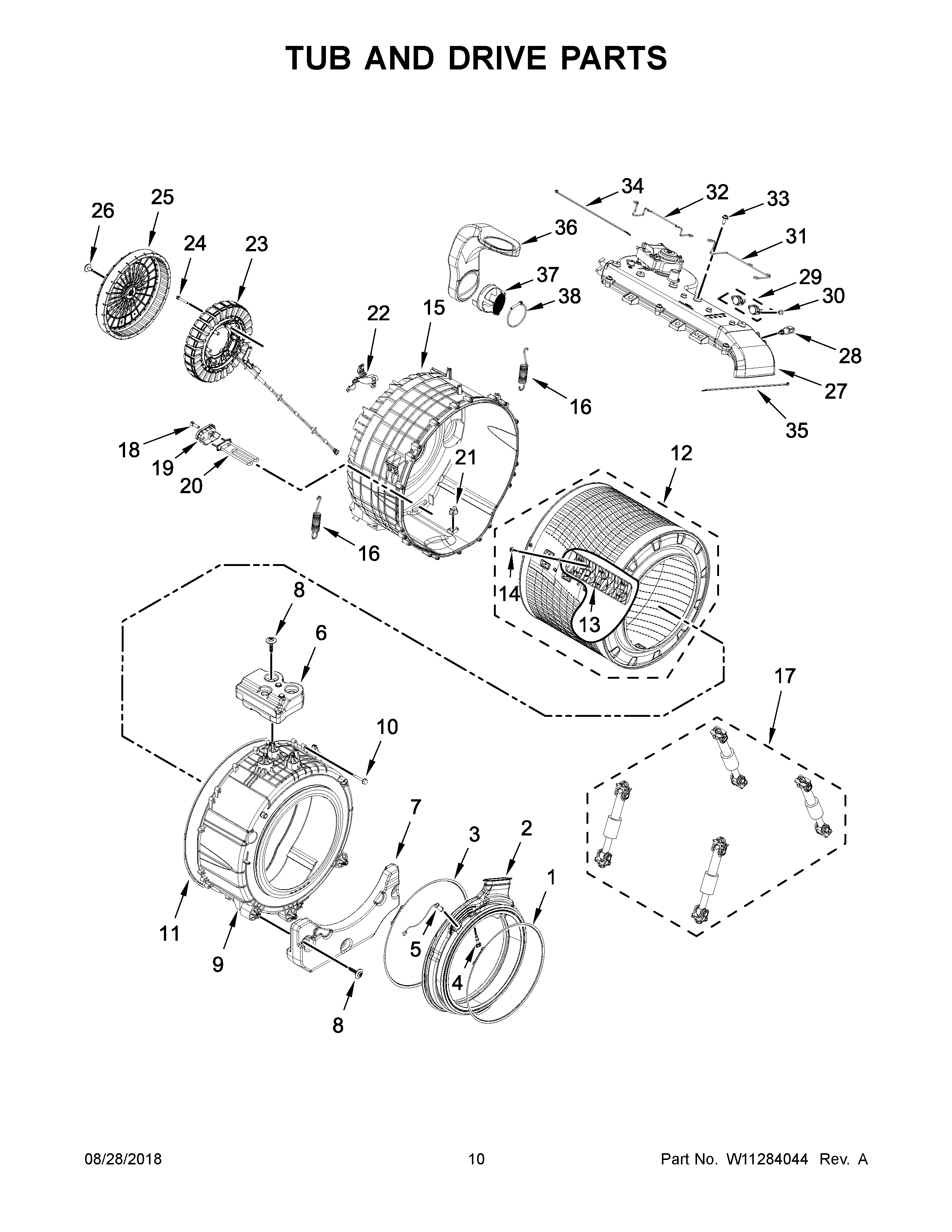

WFC8090GX0 06 – TUB AND DRIVE PARTS

WFC8090GX0 06 – TUB AND DRIVE PARTS

Written by

in

WFC8090GX0 06 – TUB AND DRIVE PARTS

Products

PositionProduct
1W11301548 Whirlpool Clamp
2W11261183 Whirlpool Bellow Assembly
3W11261185 Whirlpool Clamp Assembly
4W11261184 Whirlpool Nozzle Assembly
5W11260740 Whirlpool Light Assembly
6COUNTERWEIGHT, TOP
7COUNTERWEIGHT, BOTTOM
8SCREW
9TUB (FRONT)
10SCREW
11W11260767 Whirlpool Tub Seal
12DRUM (COMPLETE)
13LIFTER
14SCREW
15TUB (REAR)
16SPRING, TUB SUSPENSION (INCLUDES RETAINER CLIPS)
17W11287274 Whirlpool Suspension Assembly
18W11260785 Whirlpool Sensor
19COVER, HEATER
20W11260778 Whirlpool Heater Assembly
21SUPPORT, HEATING ELEMENT
22HOLDER, INLET – CONDENSER HOSE
23W11260794 Whirlpool Stator
24BOLT, STATOR
25W11261916 Whirlpool Rotor
26W10655372 Whirlpool Screw
27W11256708 Whirlpool Heater
28W11269200 Whirlpool Sensor
29W11269205 Whirlpool Switch
30SCREW
31GUARD, HARNESS (FRONT)
32GUARD, HARNESS (REAR)
33SCREW
34WPW10144763 Whirlpool Tie Wire
35WPW10339879 Whirlpool Wire Tie
36CONDENSER CHANNEL
37W11269307 Whirlpool Filter
38W11269207 Whirlpool Clamp Assembly
