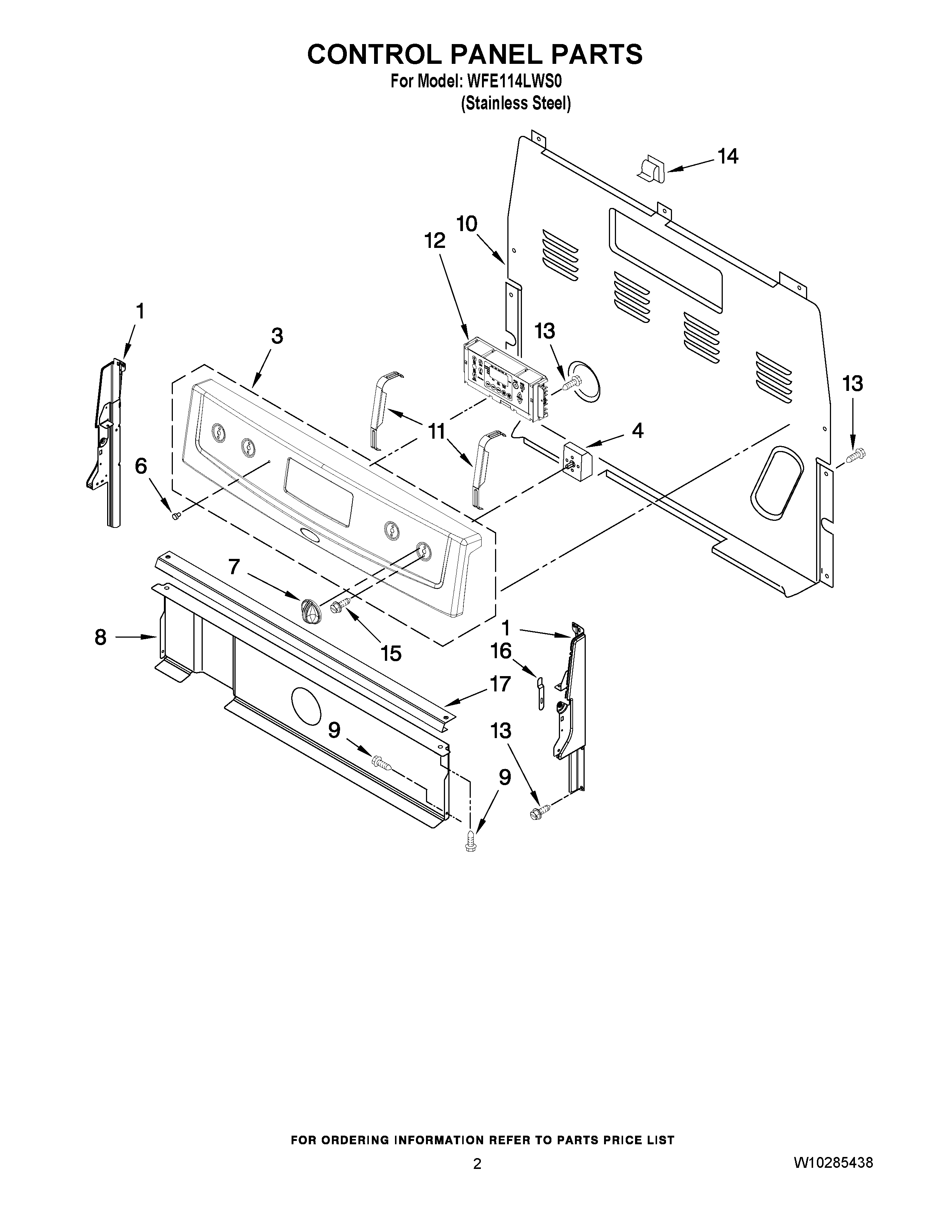

WFE114LWS0 02 – CONTROL PANEL PARTS

WFE114LWS0 02 – CONTROL PANEL PARTS

Written by

in

WFE114LWS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
3Panel, Console (Black)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
6WP3196068 Whirlpool Light Lens
7WP9761964 Whirlpool Knob
8Shield, Heat
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11BRACKET, MOUNTING EOC
12WPW10271747-includeCORE Whirlpool WPW10271747 Refrigerator Electronic Control Board + Core
13SCREW
14WP8273564 Whirlpool Clip
15WP3400882 Whirlpool Screw
163196200 Whirlpool Clip
17W10525121 Whirlpool Control Bracket
