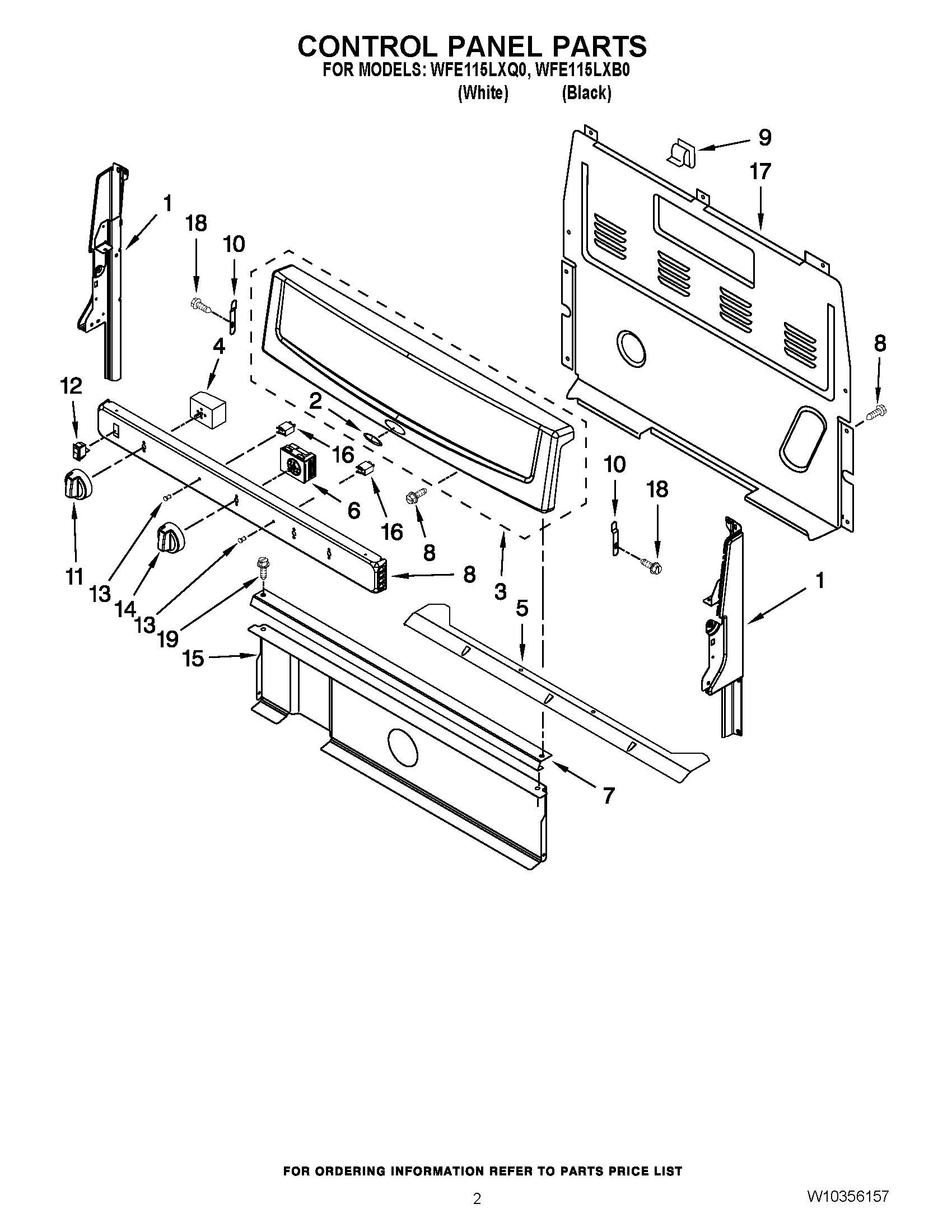

WFE115LXQ0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
2	Badge
3	PANEL, BACKGUARD (WHITE)
3	PANEL, BACKGUARD (BLACK)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	SHIELD, WIRING
6	WP9762215 Whirlpool Oven Switch
7	W10525121 Whirlpool Control Bracket
8	PANEL, MANIFOLD
9	WP8273564 Whirlpool Clip
10	3196200 Whirlpool Clip
11	W10312467 Whirlpool Knob
11	W11229681 Whirlpool Knob
12	3149360 Whirlpool Light Switch
12	WP4314961 Whirlpool Lite Switch
13	WP3196068 Whirlpool Light Lens
14	KNOB, THERMOSTAT (WHITE)
14	W10312469 Whirlpool Knob
15	Shield, Heat
16	WP8523265 Whirlpool Indicator Light
17	WP8272473 Whirlpool Rear Cover
18	3196166 Whirlpool Screw
19	SCREW
