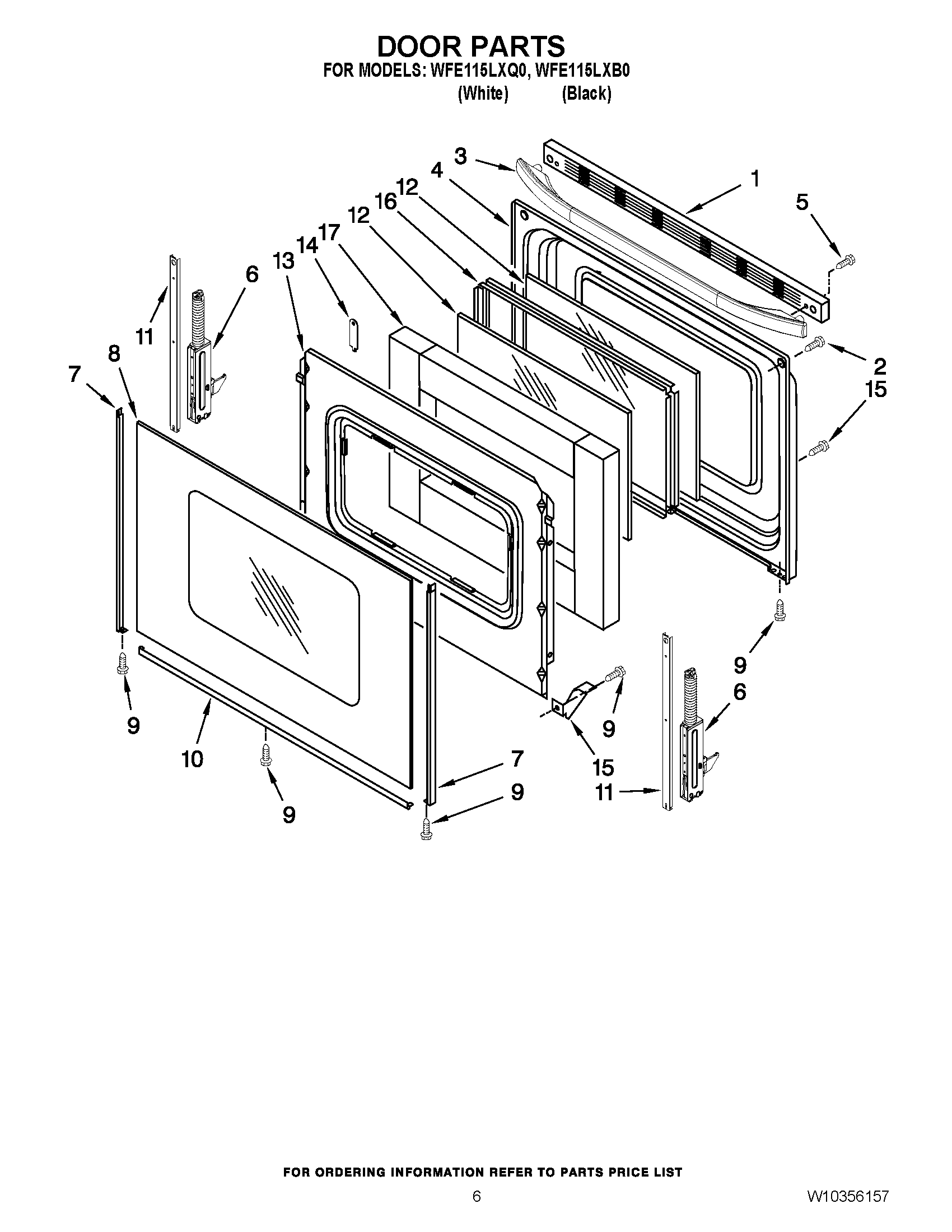

WFE115LXQ0 05 – DOOR PARTS

Products

Position	Product
1	W10817433 Whirlpool Vent Trim
1	TRIM-VENT
2	W10817436 Whirlpool Screw
3	W10817434 Whirlpool Door Handle
3	WPW10323589 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	W10777162 Whirlpool Screw
6	WPW10299227 Whirlpool Range Door Hinge
6	WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
7	W10761018 Whirlpool Dishwasher Left Door Trim
7	W10761014 Whirlpool Right Door Trim
7	WP8523172 Whirlpool Left Door Trim
7	WP8523166 Whirlpool Door Trim
8	WPW10118454 Whirlpool Door Outer Glass White
8	WPW10118455 Whirlpool Door Glass Assembly
9	WP3196175 Whirlpool Screw
10	WP8523175 Whirlpool Door Trim Assembly
10	WP8523177 Whirlpool Door Trim Assembly
11	W11502236 Whirlpool Door Trim
12	WP8053948 Whirlpool Door Glass
13	W11539580 Whirlpool Retainer
14	9761517 Whirlpool Oven Clip Assembly
15	W10137382 Whirlpool Clip
16	WPW10316950 Whirlpool Window Frame
17	WPW10278991 Whirlpool Insulation
