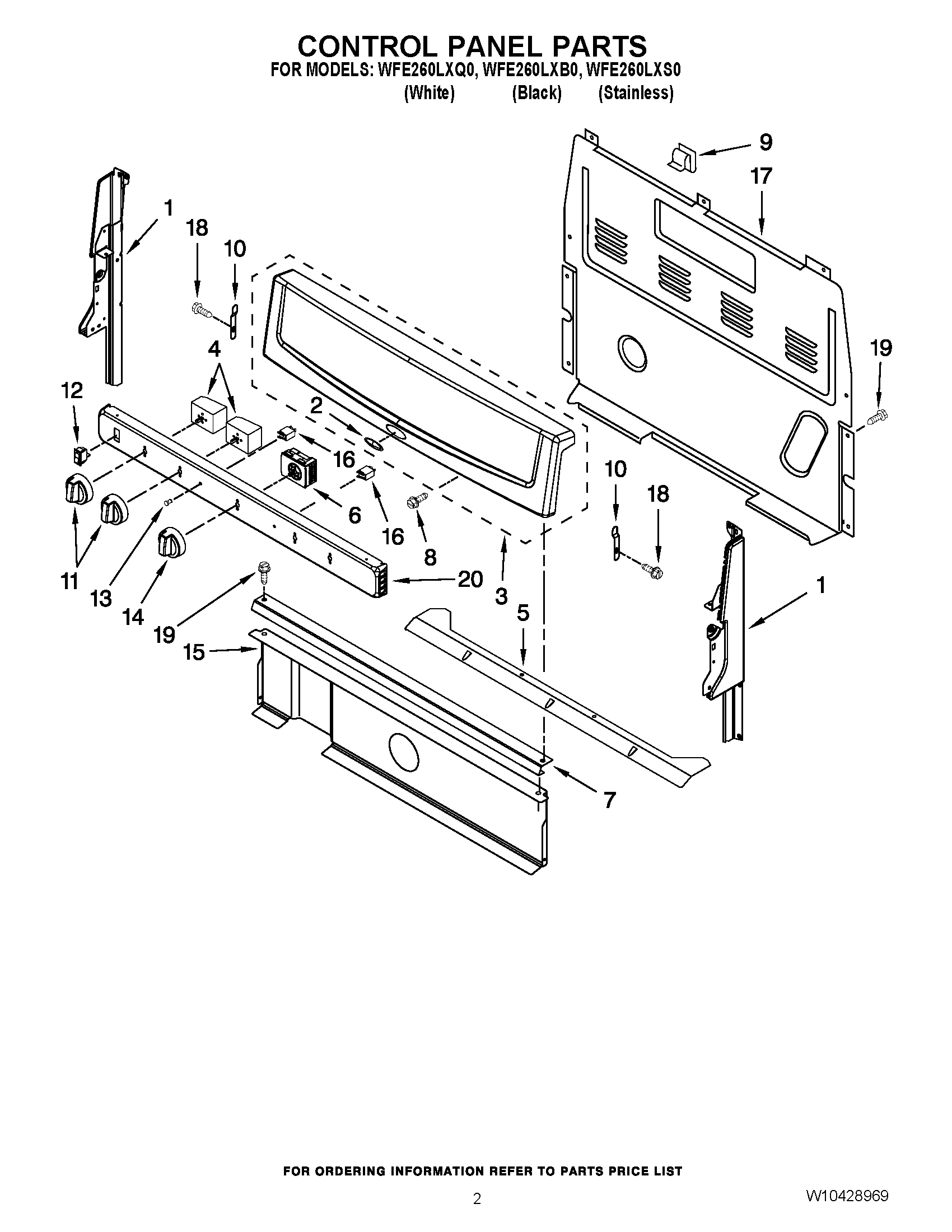

WFE260LXQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2Badge
3PANEL, BACKGUARD (WHITE)
3PANEL, BACKGUARD (STAINLESS)
3PANEL, BACKGUARD (BLACK)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5SHIELD, WIRING
6WPW10363198 Whirlpool Oven Switch
7W10525121 Whirlpool Control Bracket
8WP3400882 Whirlpool Screw
9WP8273564 Whirlpool Clip
103196200 Whirlpool Clip
11W11229681 Whirlpool Knob
11W10312467 Whirlpool Knob
123149360 Whirlpool Light Switch
12WP4314961 Whirlpool Lite Switch
13WP3196068 Whirlpool Light Lens
14KNOB, THERMOSTAT (BLACK)
14KNOB, THERMOSTAT (WHITE)
15Shield, Heat
16WP8523265 Whirlpool Indicator Light
17WP8272473 Whirlpool Rear Cover
183196166 Whirlpool Screw
19SCREW
20W10356277 Whirlpool Manifold
20PANEL, MANIFOLD (WHITE)
