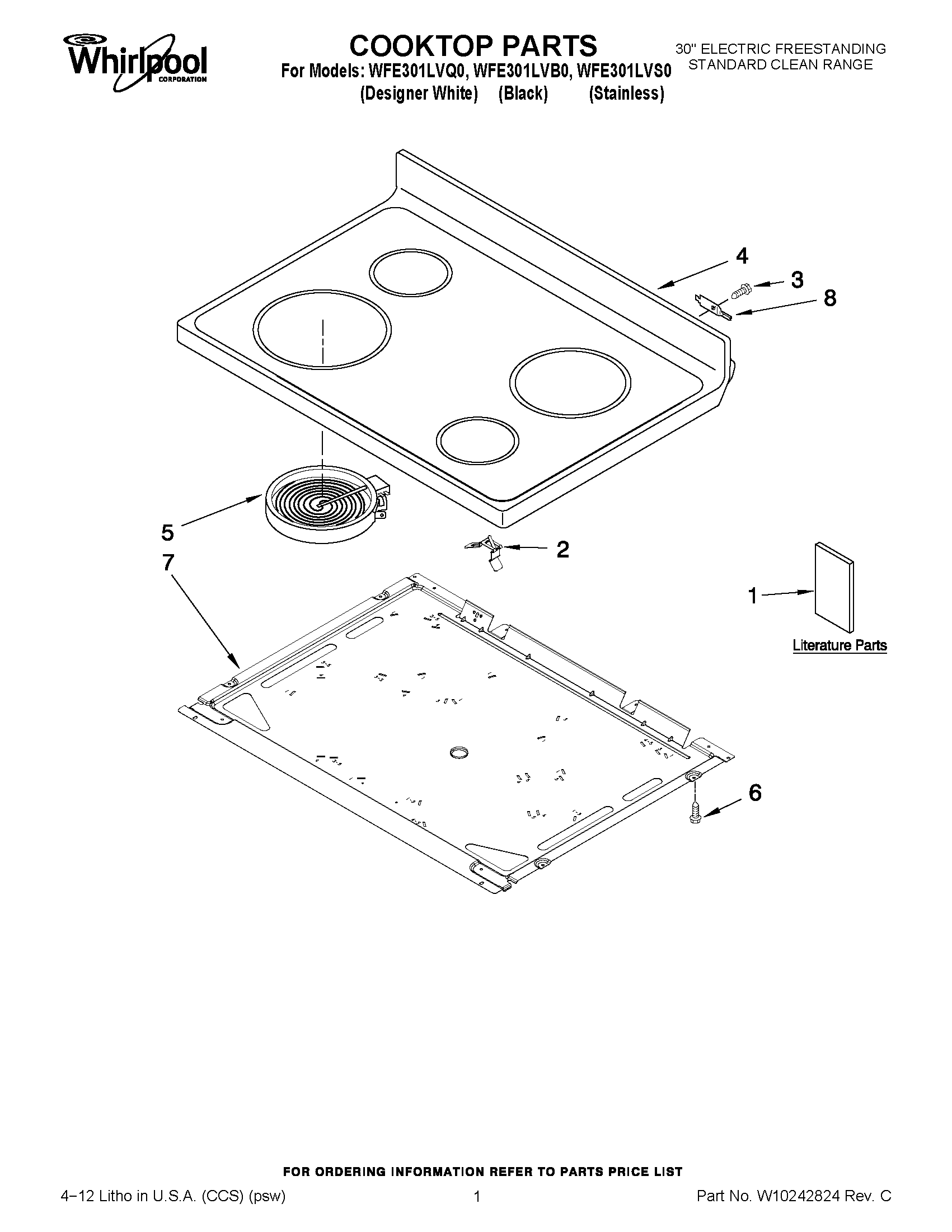

WFE301LVB0 01 – COOKTOP PARTS

WFE301LVB0 01 – COOKTOP PARTS

Written by

in

WFE301LVB0 01 – COOKTOP PARTS

Products

PositionProduct
1Owners Manual
1SAFER COOKING TIPS (ENGLISH
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1INSTRUCTIONS, INSTALLATION
1TECH SHEET (ENGLISH)
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10248203 Whirlpool Cooktop
4W10248204 Whirlpool Cooktop
5WP8523045 Whirlpool Range Left Rear / Right Front Surface Element 1500 W
5WPW10242957 Whirlpool Element Surface Left Front / Right Rear 2000W
6WP3196557 Whirlpool Screw
7W10170526 Whirlpool Pan
8WP3195060 Whirlpool Cooktop Pin
