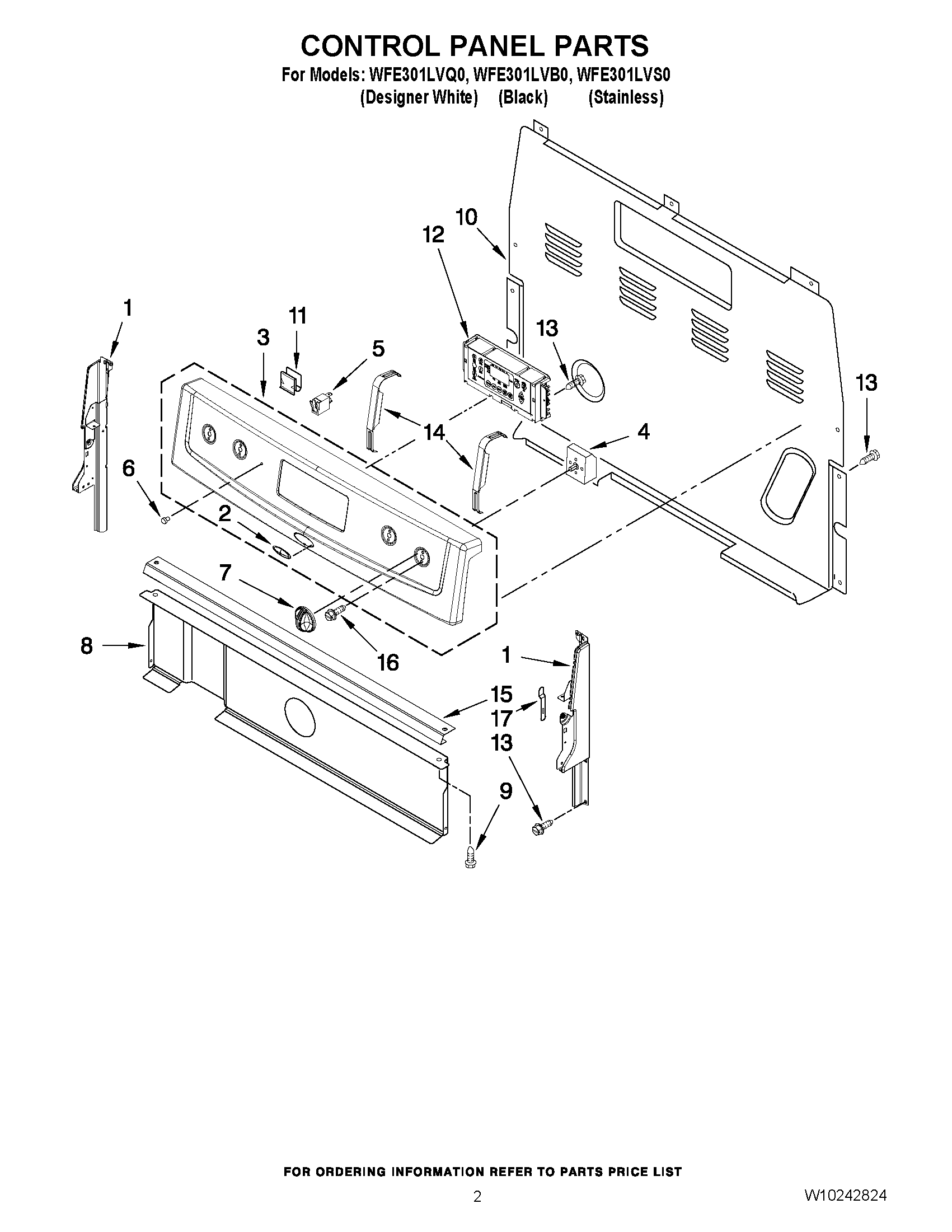

WFE301LVB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	Badge
3	Panel, Backguard (White)
3	Panel, Backguard (Stainless)
3	Panel, Backguard (Black)
4	WP3148952 Whirlpool Oven Infinite Switch
4	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	W10134247 Whirlpool Heat Shield
9	3196166 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	WP8273564 Whirlpool Clip
12	WPW10271747-includeCORE Whirlpool WPW10271747 Refrigerator Electronic Control Board + Core
12	WPW10476684 Whirlpool Electronic Control Board + Core
13	SCREW
14	BRACKET, MOUNTING EOC
15	W10525121 Whirlpool Control Bracket
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
