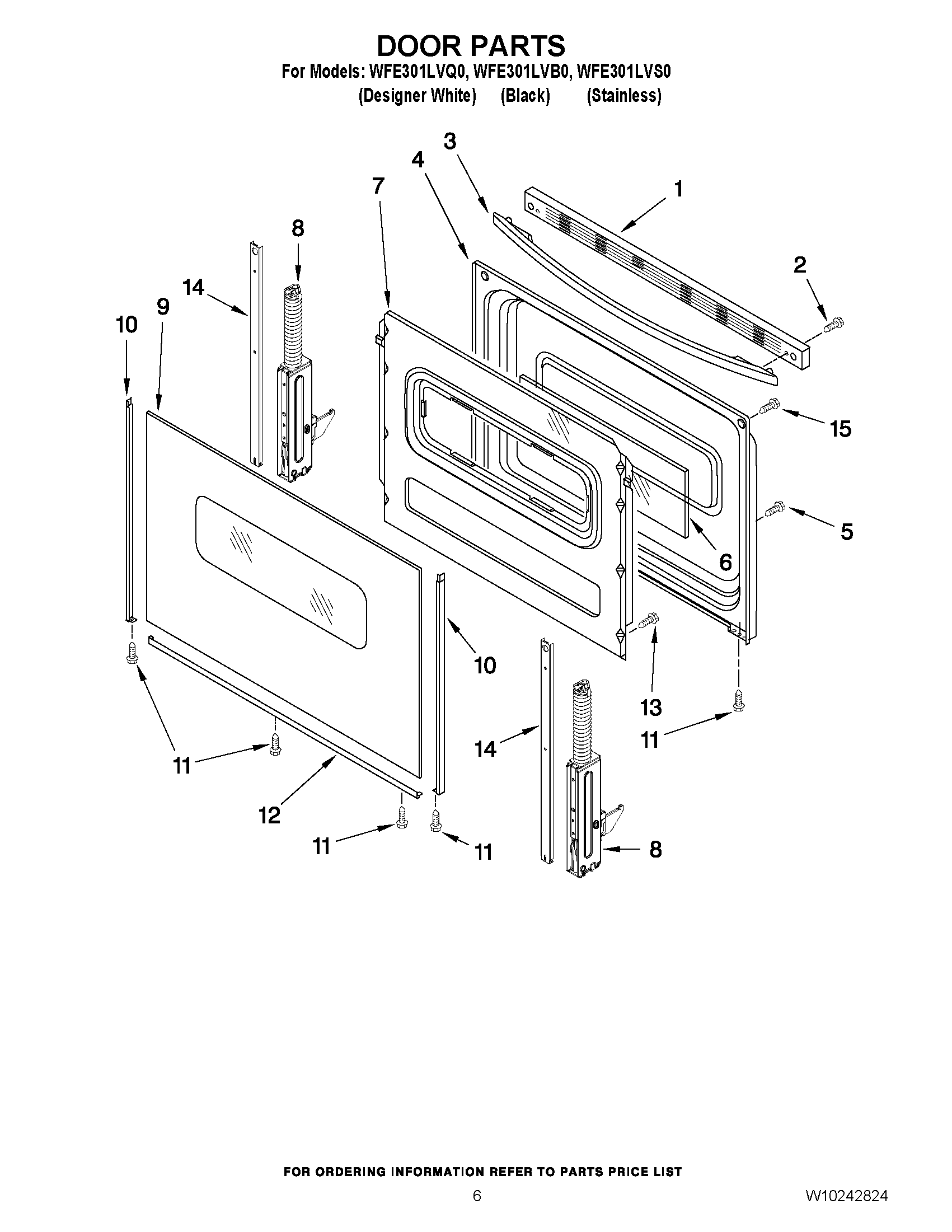

WFE301LVQ0 05 – DOOR PARTS

Products

Position	Product
1	TRIM-VENT
1	W10817433 Whirlpool Vent Trim
2	W10817436 Whirlpool Screw
3	WPW10144883 Whirlpool Door Handle
3	W10817434 Whirlpool Door Handle
3	WPW10323589 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	W11685635 Whirlpool Retainer
8	WPW10299227 Whirlpool Range Door Hinge
8	WPW10299225 Whirlpool Door Hinge
9	WPW10118454 Whirlpool Door Outer Glass White
9	WPW10118455 Whirlpool Door Glass Assembly
10	W10761018 Whirlpool Dishwasher Left Door Trim
10	W10761014 Whirlpool Right Door Trim
10	WP8523166 Whirlpool Door Trim
10	WP8523172 Whirlpool Left Door Trim
11	W10491985 Whirlpool Screw
12	WP8523175 Whirlpool Door Trim Assembly
12	WP8523177 Whirlpool Door Trim Assembly
13	W10777162 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10200660 Whirlpool Range Oven Door Handle Screw
