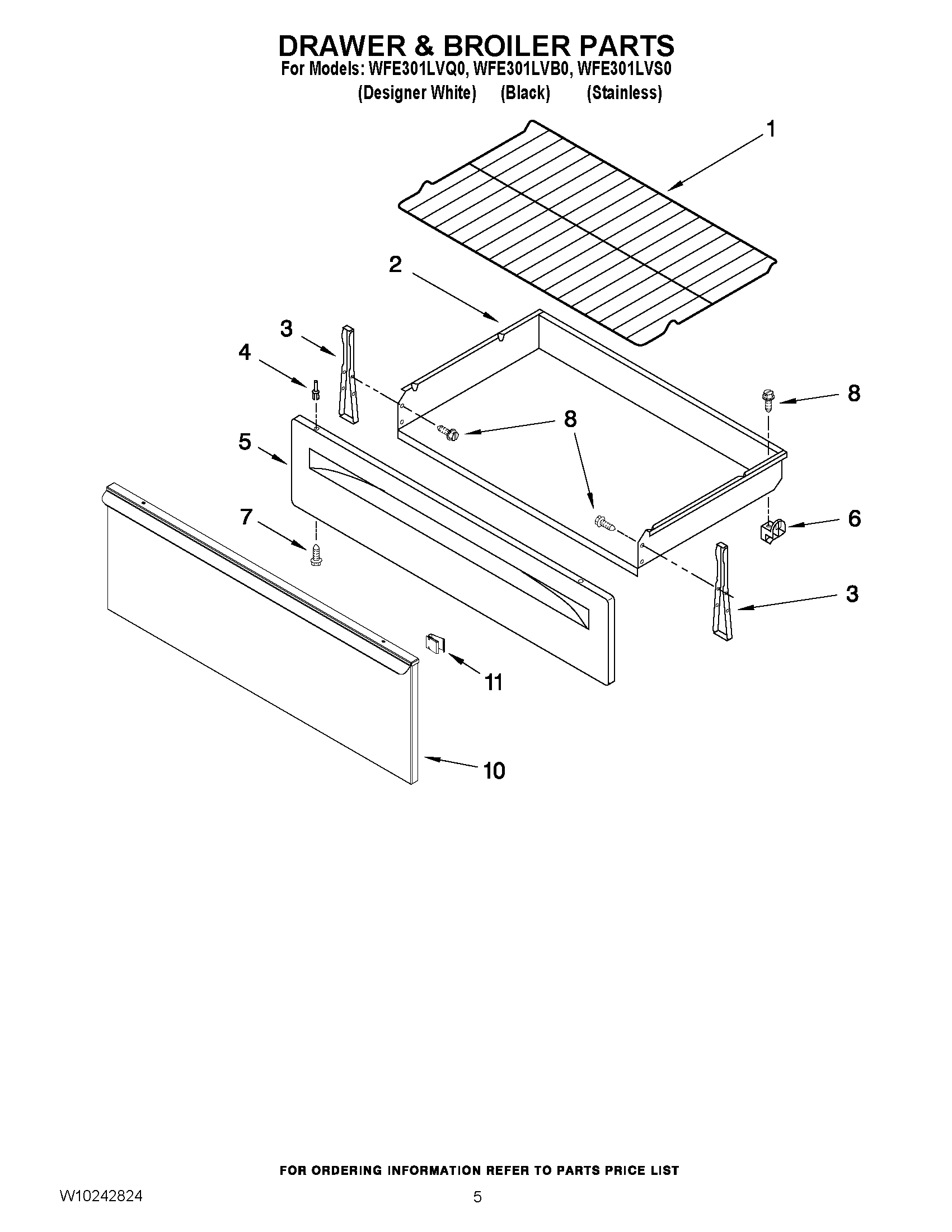

WFE301LVS0 04 – DRAWER & BROILER PARTS

Written by

Products

Position	Product
1	RACK-OVEN
2	Drawer, Storage
3	WPW10462912 Whirlpool Bracket Mounting
4	WP3196813 Whirlpool Rivet
4	WP3196814 Whirlpool Rivet
5	W11219377 Whirlpool Drawer Panel
5	W11230488 Whirlpool Drawer Panel
6	WP8053334 Whirlpool Drawer Glide
7	WP3400832 Whirlpool Screw
8	WP3196175 Whirlpool Screw
10	DRAWER FRONT (STAINLESS)
11	CLIP, SPRING
