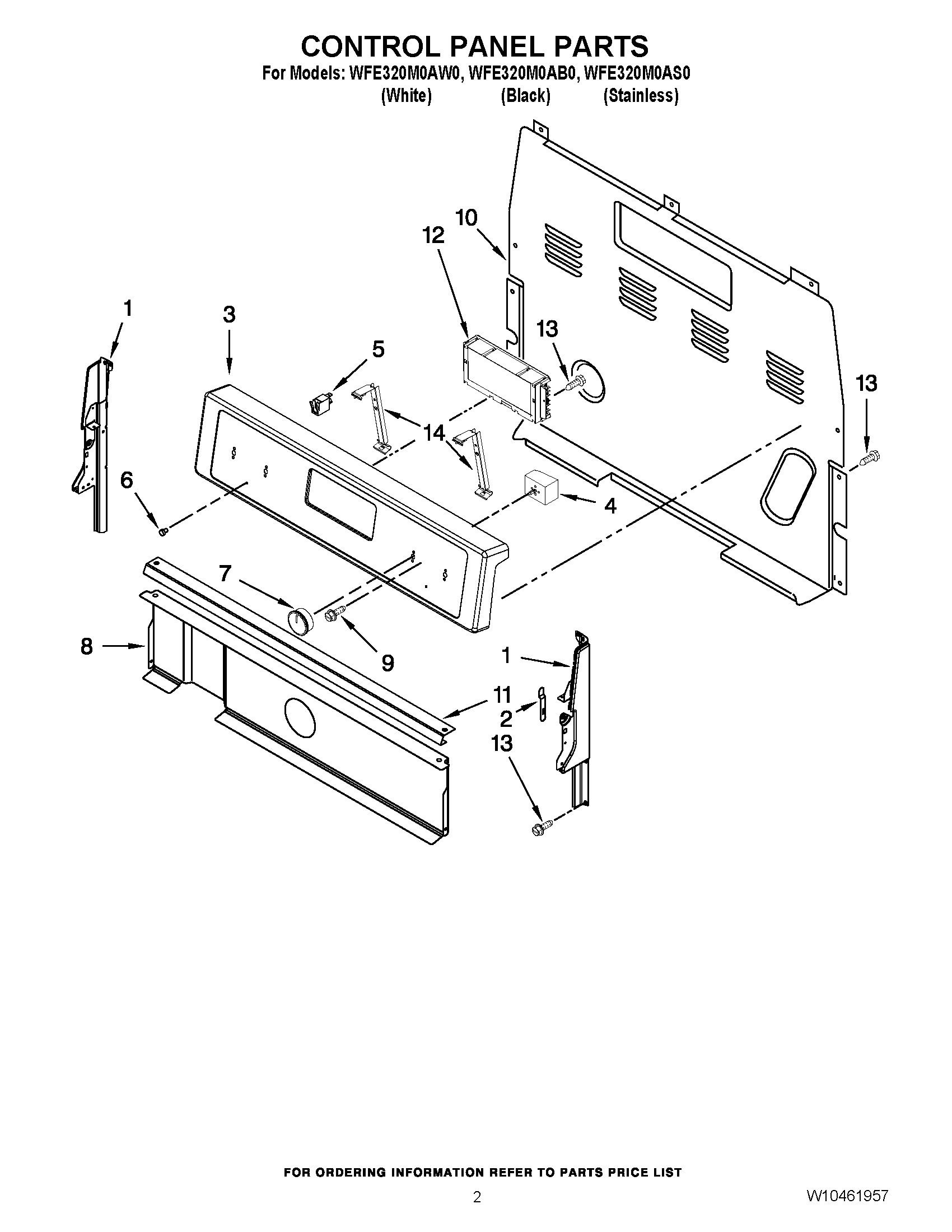

WFE320M0AB0 02 – CONTROL PANEL PARTS

WFE320M0AB0 02 – CONTROL PANEL PARTS

Written by

in

WFE320M0AB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
23196200 Whirlpool Clip
3W11231942 Whirlpool Control Panel
3W11231943 Whirlpool Control Panel
3W11251222 Whirlpool Control Panel
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WPW10490037 Whirlpool Knob
7WPW10490038 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11122560 Whirlpool Control Board + Core
12W11122557 Whirlpool Electronic Control Board + Core
12W11122555 Whirlpool Electronic Control Board + Core
13SCREW
14W11230932 Whirlpool Bracket Mounting
