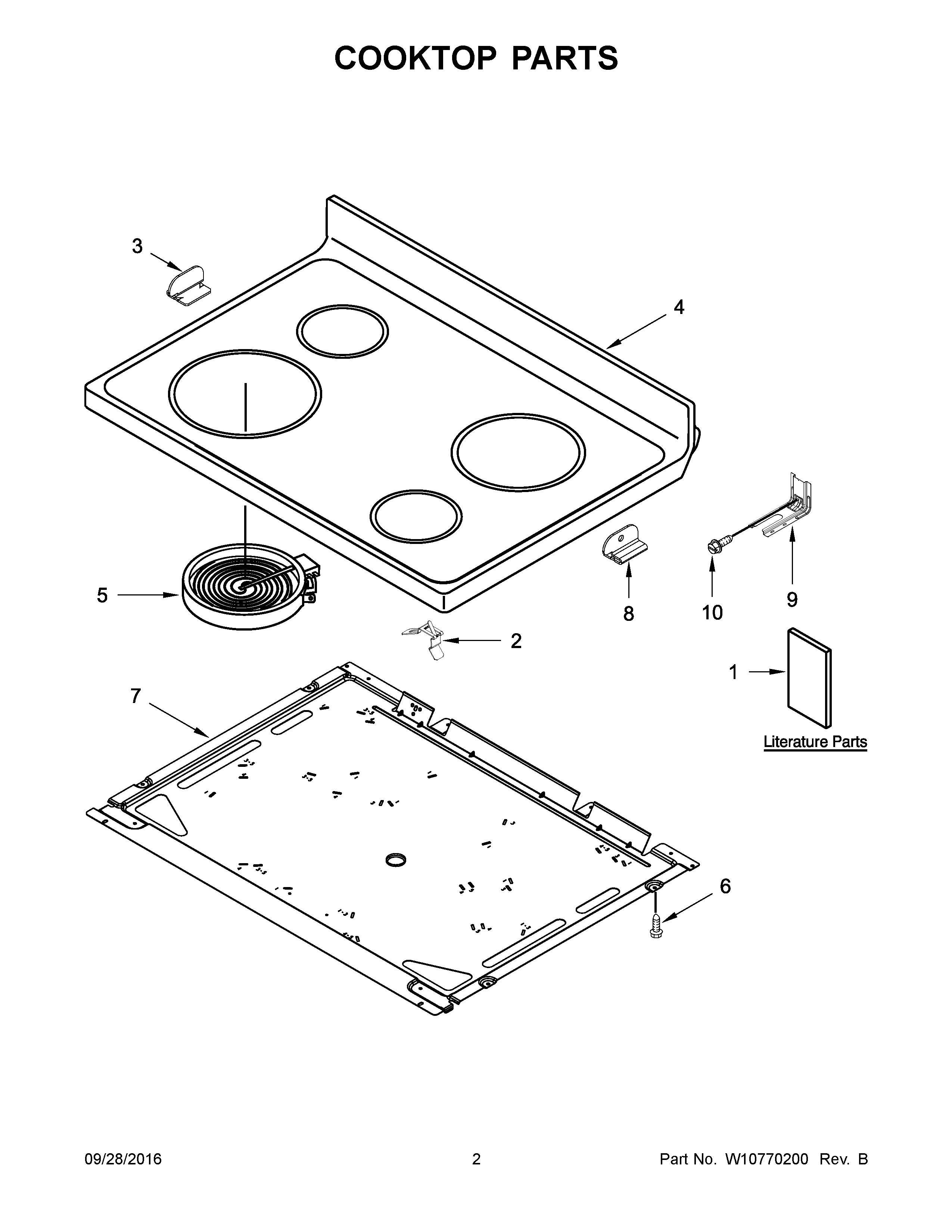

WFE320M0EB0 02 – COOKTOP PARTS

WFE320M0EB0 02 – COOKTOP PARTS

Written by

in

WFE320M0EB0 02 – COOKTOP PARTS

Products

PositionProduct
NIWP3196174 Whirlpool Screw
NIW11416847 Whirlpool Wire Harness
NIW11232223 Whirlpool Wire Harness
NIClip, Ground Wire
NIW11134601 Whirlpool Wire Harness
NIW11134602 Whirlpool Wire Harness
1INSTRUCTIONS, INSTALLATION
1CSAFER COOKING TIPS (ENGLISH
1BTECH SHEET (ENGLISH)
1AOWNER'S MANUAL
2WPW10225448 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
4W10472020 Whirlpool Cooktop
4AW10245805 Whirlpool Range Black Glass Cooktop
5BELMNT-SURF
5W11517959 Whirlpool Electric Range Radiant Surface Element
5AW10823696 Whirlpool Radiant Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W10607642 Whirlpool Clip
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
