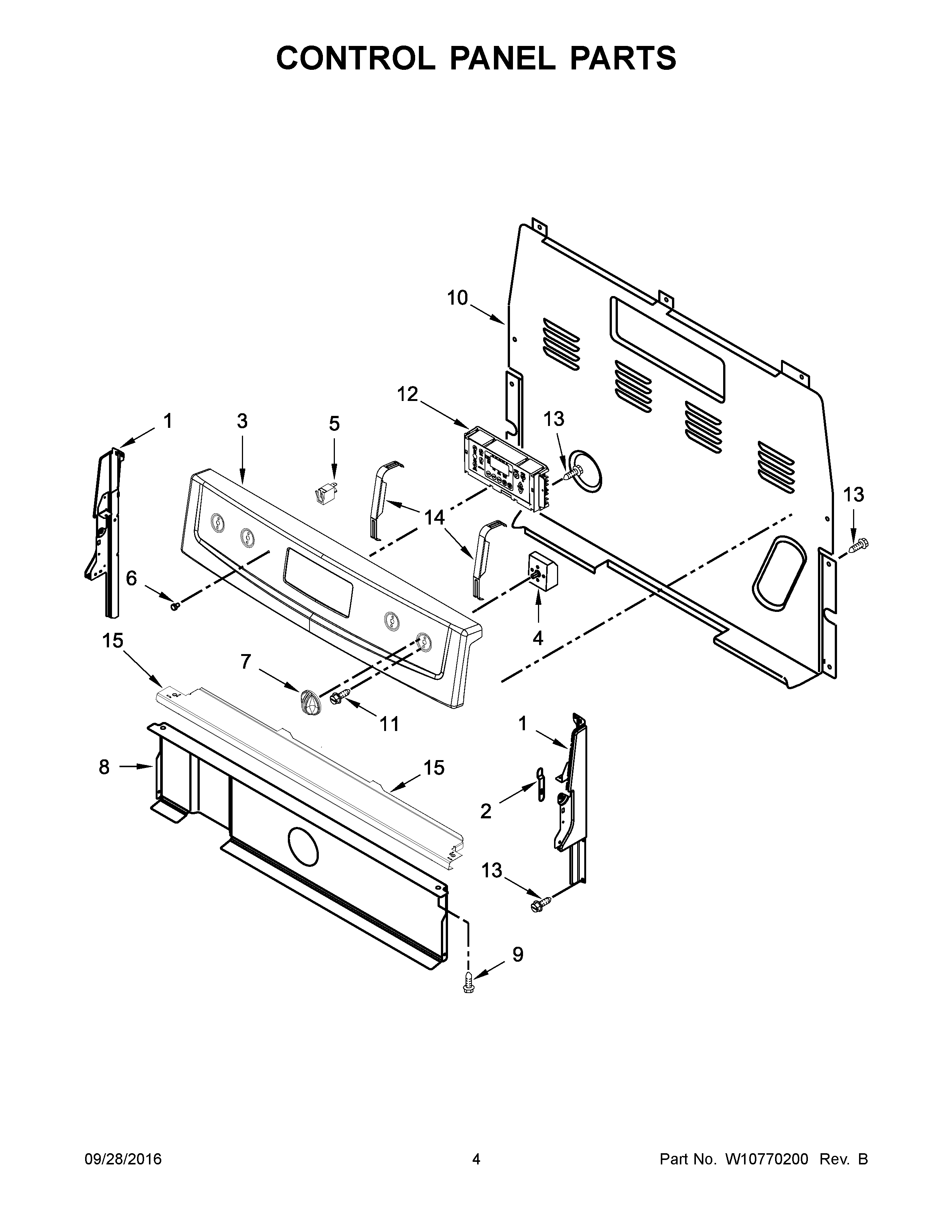

WFE320M0EB0 03 – CONTROL PANEL PARTS

WFE320M0EB0 03 – CONTROL PANEL PARTS

Written by

in

WFE320M0EB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1BW11219664 Whirlpool Endcap Panel
1CW11219665 Whirlpool Panel Endcap
23196200 Whirlpool Clip
3W11231942 Whirlpool Control Panel
3BW11251222 Whirlpool Control Panel
3AW11231943 Whirlpool Control Panel
4AWP3149400 Whirlpool Oven Infinite Switch
4SWITCH-INF
4BWP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7W10853029 Whirlpool Knob
7AW10836470 Whirlpool Knob Assembly
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11WP3400882 Whirlpool Screw
12AW11122555 Whirlpool Electronic Control Board + Core
12W11122557 Whirlpool Electronic Control Board + Core
12BW11122560 Whirlpool Control Board + Core
13SCREW
14W11230932 Whirlpool Bracket Mounting
15W10525121 Whirlpool Control Bracket
