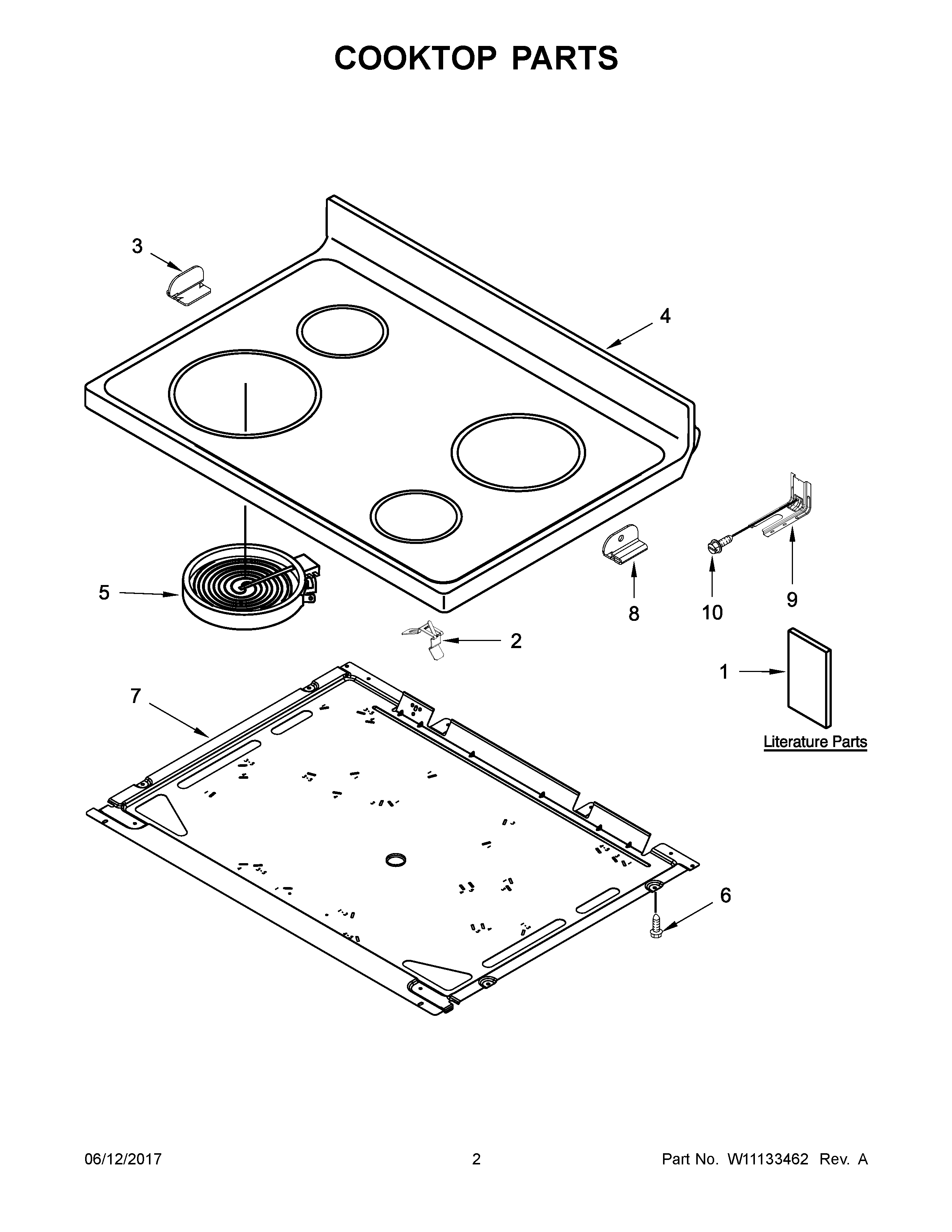

WFE320M0ES1 02 – COOKTOP PARTS

Products

Position	Product
NI	Clip, Ground Wire
NI	W11416847 Whirlpool Wire Harness
NI	W11232223 Whirlpool Wire Harness
NI	W11134602 Whirlpool Wire Harness
NI	W11134601 Whirlpool Wire Harness
NI	WP3196174 Whirlpool Screw
1	INSTRUCTIONS, INSTALLATION
1C	SAFER COOKING TIPS (ENGLISH
1B	TECH SHEET (ENGLISH)
1A	OWNER'S MANUAL
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
4A	W10472020 Whirlpool Cooktop
4	W10245805 Whirlpool Range Black Glass Cooktop
5B	ELMNT-SURF
5A	W11047722 Whirlpool Radiant Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W10607642 Whirlpool Clip
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
