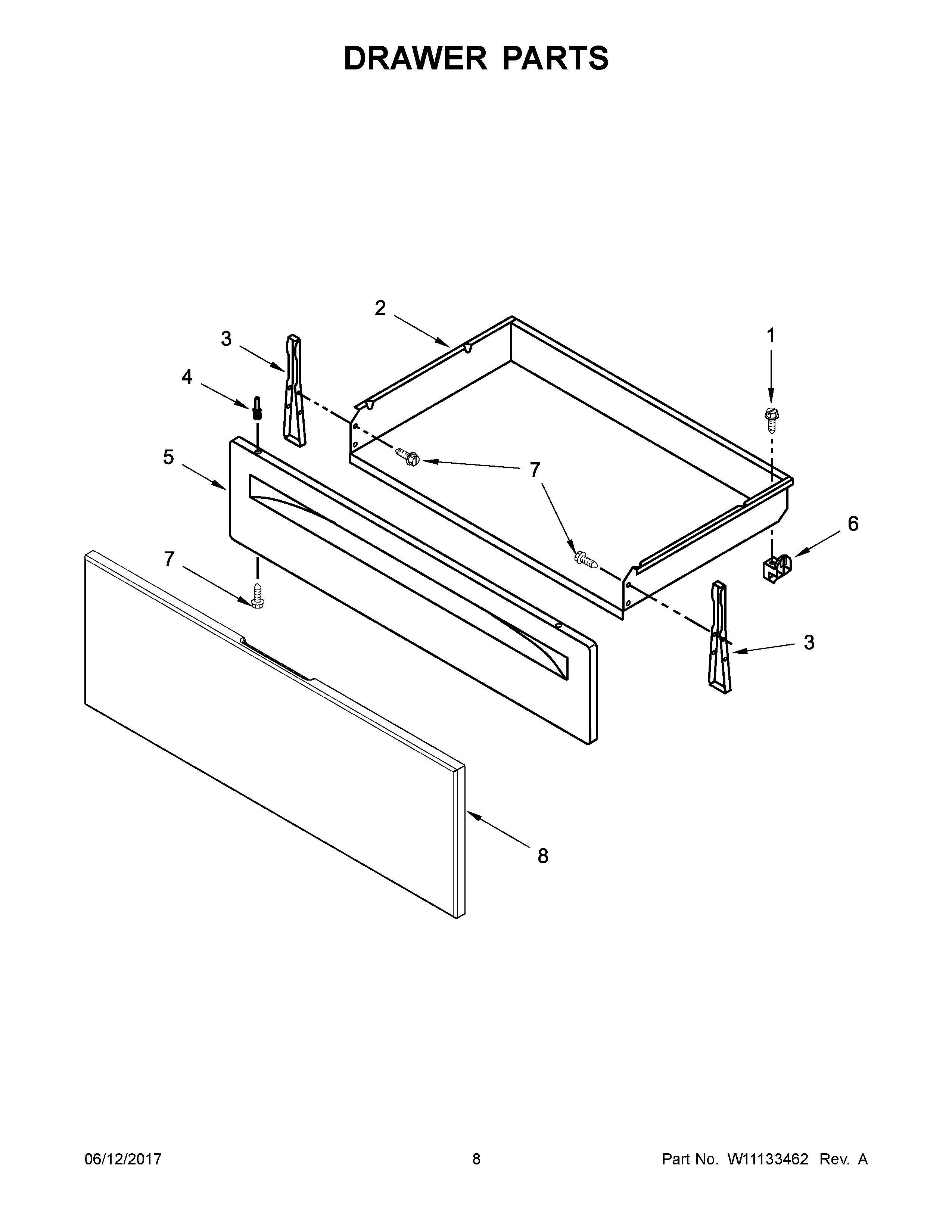

WFE320M0ES1 05 – DRAWER PARTS

WFE320M0ES1 05 – DRAWER PARTS

Written by

in

WFE320M0ES1 05 – DRAWER PARTS

Products

PositionProduct
1SCREW
2W10813962 Whirlpool Utility Drawer
3AW10838990 Whirlpool Mounting Bracket
3WPW10462912 Whirlpool Bracket Mounting
4WP3196813 Whirlpool Rivet
4AWP3196814 Whirlpool Rivet
5W11230488 Whirlpool Drawer Panel
5AW11219377 Whirlpool Drawer Panel
6GLIDE-RANGE DRAWER KIT
7WP3196557 Whirlpool Screw
8WPW10330070 Whirlpool Drawer Panel
