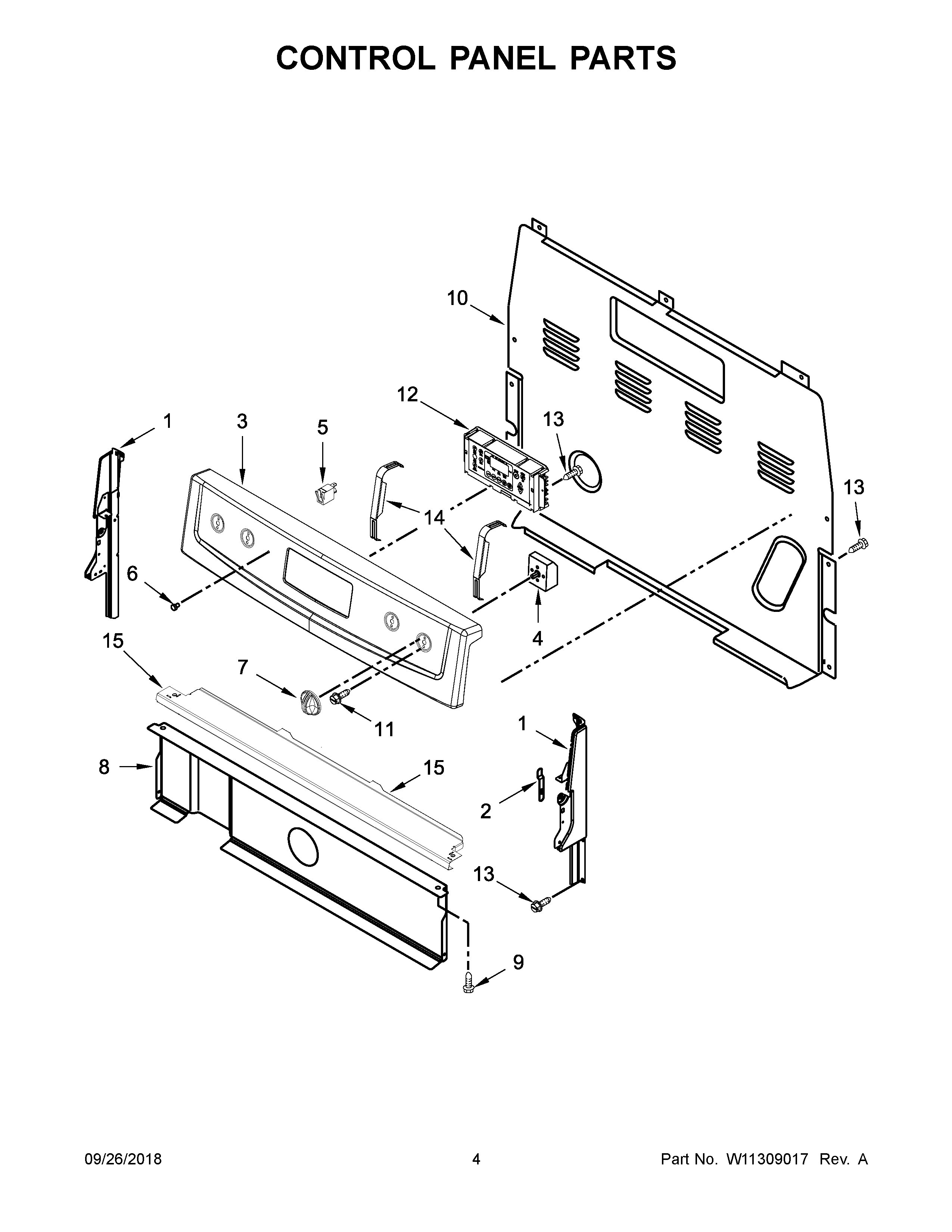

WFE320M0ES2 03 – CONTROL PANEL PARTS
Written by
in
WFE320M0ES2 03 – CONTROL PANEL PARTS
Products
Position
Product
1A
W11219665 Whirlpool Panel Endcap
1
W11219664 Whirlpool Endcap Panel
2
3196200 Whirlpool Clip
3
W11251222 Whirlpool Control Panel
4
SWITCH-INF
4A
WP3149400 Whirlpool Oven Infinite Switch
4B
WP3149404 Whirlpool Oven Surface Element Switch
5
WP8523265 Whirlpool Indicator Light
6
WP3196068 Whirlpool Light Lens
7
W10836470 Whirlpool Knob Assembly
8
W10134247 Whirlpool Heat Shield
9
WP3196175 Whirlpool Screw
10
WP8272473 Whirlpool Rear Cover
11
WP3400882 Whirlpool Screw
12
W11122560 Whirlpool Control Board + Core
13
SCREW
14
W11230932 Whirlpool Bracket Mounting
15
W10525121 Whirlpool Control Bracket
←
