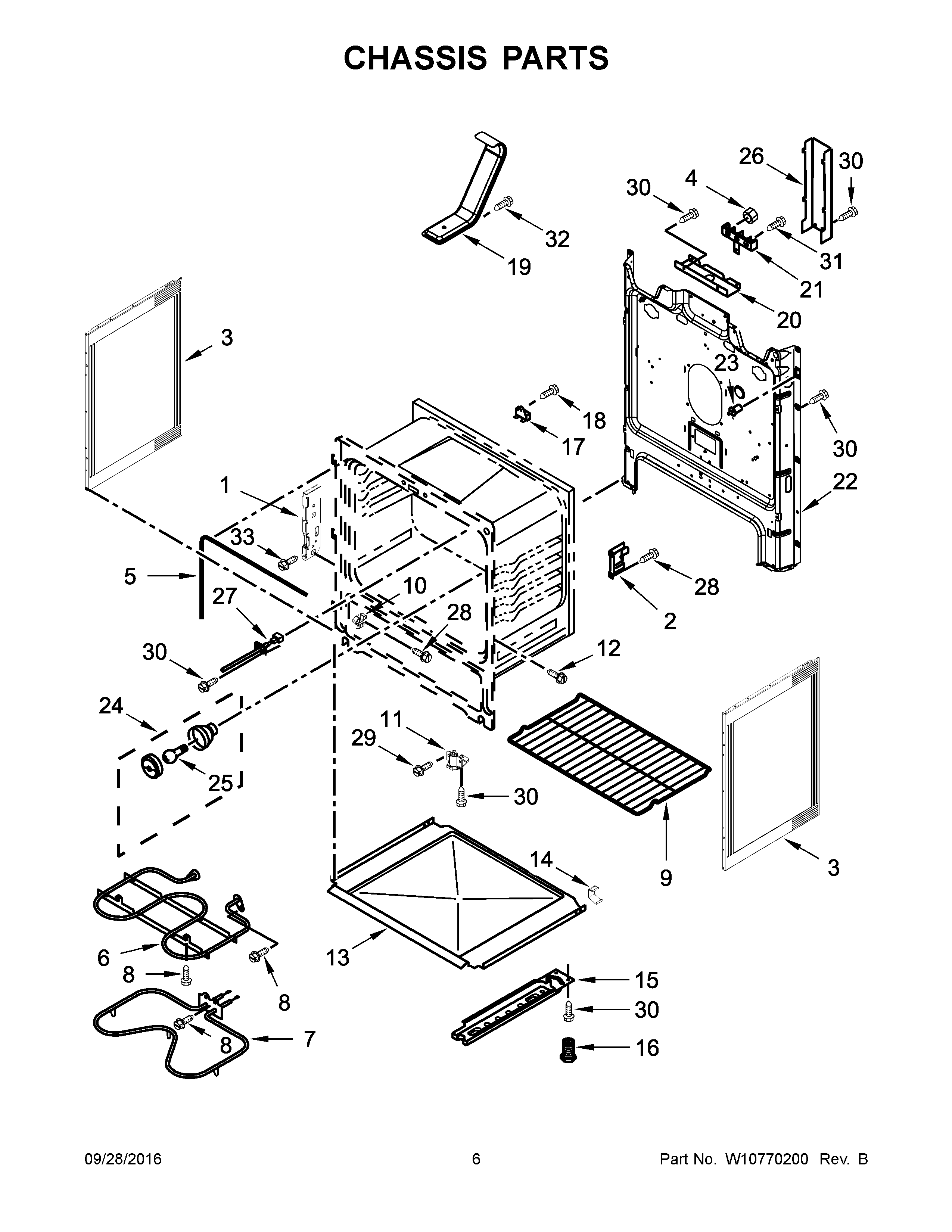

WFE320M0EW0 04 – CHASSIS PARTS

Products

Position	Product
NI	WPW10208653 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684918 Whirlpool Insulation
NI	W11311894 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
2	W10404688 Whirlpool Bracket Support
3	WPW10575396 Whirlpool Side Panel
3A	W11730303 Whirlpool Side Panel
4	WP3400029 Whirlpool Dishwasher Nut
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	WP3196154 Whirlpool Screw Assembly
9	RACK-OVEN
10	W10807823 Whirlpool Drawer Glide
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	WPW10134285 Whirlpool Vent Tube
20	W11728255 Whirlpool Service Bracket
21	WPW10245259 Whirlpool Terminal Block
22	BACK, MAIN
23	WP9757262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WPW10326122 Whirlpool Black Cover
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196557 Whirlpool Screw
29	WP3196174 Whirlpool Screw
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
32	WP489491 Whirlpool Refrigerator Screw
33	W10777162 Whirlpool Screw
